Carbon Steel Grid Foot Plate Heavy Duty Metal Grate For Offshore Platform

Place of Origin	Hebei
Brand Name	Zhuote
Certification	ISO9001-2015
Model Number	325/30/100
Minimum Order Quantity	77 piece
Price	Can discuss
Packaging Details	Steel belt packaging
Delivery Time	9-13 work days
Payment Terms	L/C, T/T
Supply Ability	1650 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	Steel, Galvanized Sheet, Aluminium	Product Name	Steel Grating, Hot-dip Galvanized Heavy Duty Steel Grating For Water Well Cover, Hot Dip Galvanized Mild Steel Bar Grating And Metal Grid Weight
Application	Floor, Walkway, Bridge, Platform, Steel Structure	Color	Silver, Black, Silver Or As Your Requirement, Based On Customer's Requirement, Matt White. Silvery
Type	Plain Bar Grating, Steel Plate, 19-w-4, I Type Or Serrated	Thickness	3mm, 2mm-5mm, 2mm /2.5mm / 3mm
High Light	325/30/100 heavy duty metal grate , offshore platform heavy duty metal grate , serrated bar large steel grate

Leave a Message

Product Description

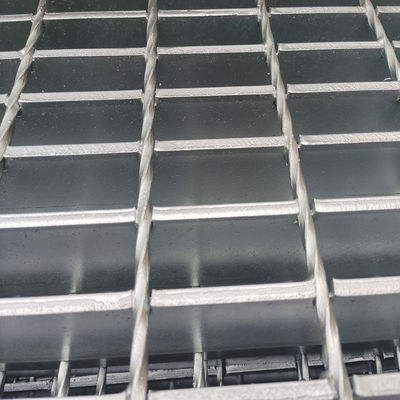

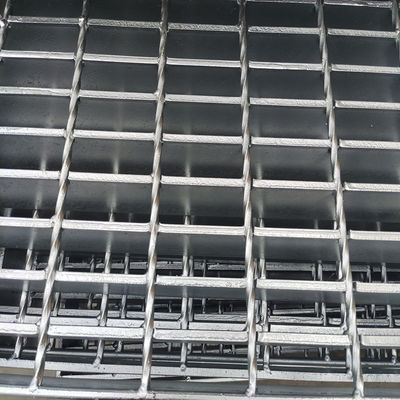

Carbon steel heavy steel grid foot grating plate for offshore platform

1. SYI Serrated Galvanized Steel Grating Weight specifications.

2. Serrated Galvanized Steel Grating Weight
Material of steel driveway grates grating is usually low carbon steel ,stainless steel. the size is commonly standard or as required.

Packing:Naked or as the customers' request.

certificate is ISO 9001:2000.

3. Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

4. Material:
Carbon steel, Stainless steel ,and so on .

5. Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated

6. Size:
Standard size or OEM(Making as the customers' request).

7. Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.

8.Useage:

Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.

9.Packing:
Naked or packing as the customers' request

10.Standard steel grating supplied is manufactured with a resistance-weld process using heat and pressure. Crossbars are fused to bearing bars to assure maximum strength.

Bearing Bar	25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm etc
Usual Pitch	41mm x100mm & 30mm x100mm
Special Pitch	41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm, 34mm x 100mm, 34mmx50mm,34mm x 38mm
Material Standard	Q235,ASTMA36,A1011,A569,S275JR,SS304&316 etc
Surface Treatment	galvanized,black,painted,spray coating,self color
Bearing Bar Type	serrated/teeth plain/smooth I bar Serrated I bar
HS code	7308900000
Sample	small pc for free

Carbon Steel Grid Foot Plate Heavy Duty Metal Grate For Offshore Platform 0

FAQ

1. Q: Are you a manufacturer or just a trading company?

A: We are a direct factory with 20 years of R & D and production experience.

2. Q: Where is your factory?

A: We have 2 factories, one factory is located in Anping County, Hengshui City, Hebei Province, other factory in Changsha City, Hunan Province.

3. Q: can you provide sample for us to test the quality? Is there a charge?

A: Yes, sample is available but you may have to pay the freight cost. After placed normal order, the sample fee will be returned to you.

4. Q: How do you make our business long-term and in good relationship?

A: 1. We make products with good quality and competitive price to ensure our customers benefit;

2. We respect every customer and sincerely do business and make friends with them, no matter where they come from.
