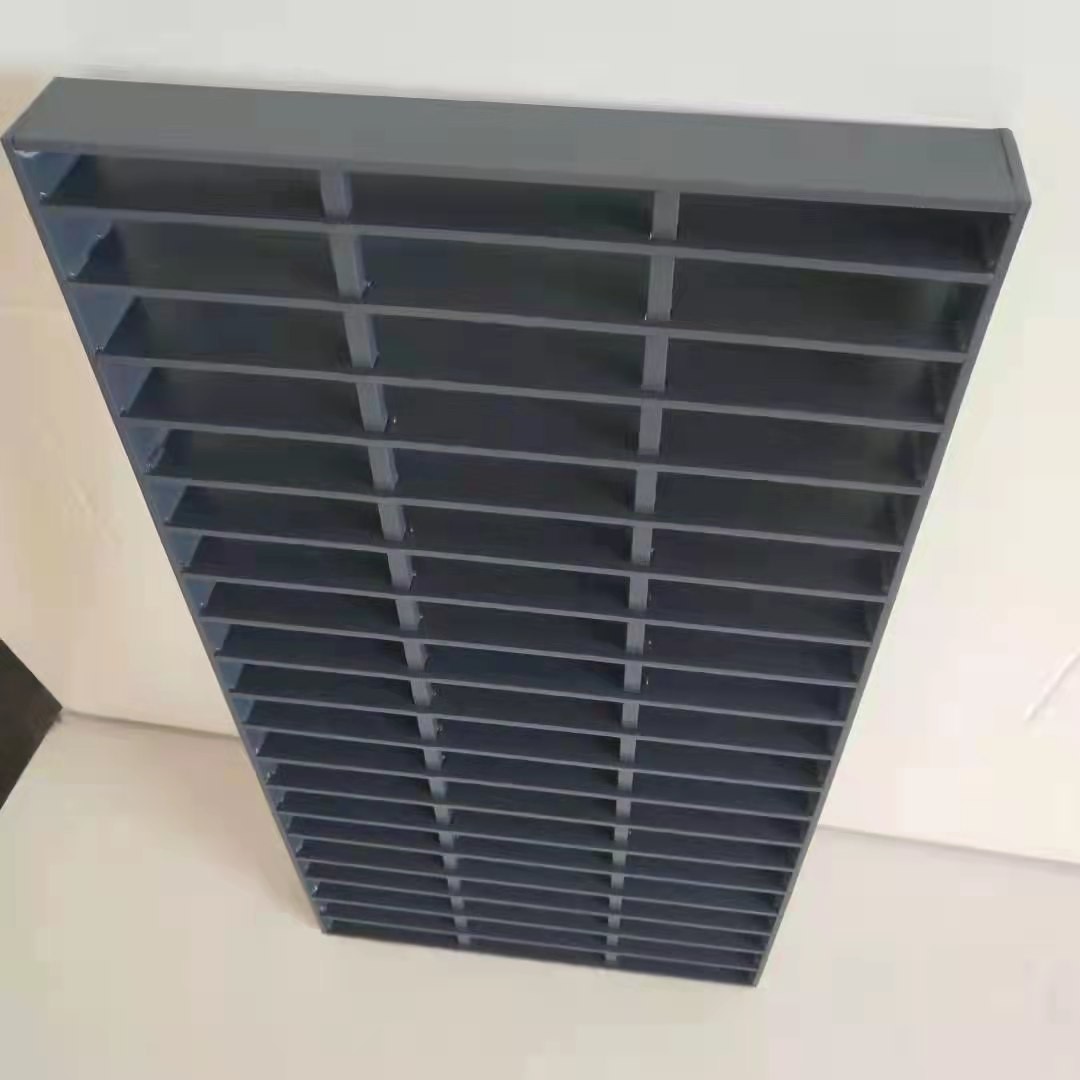

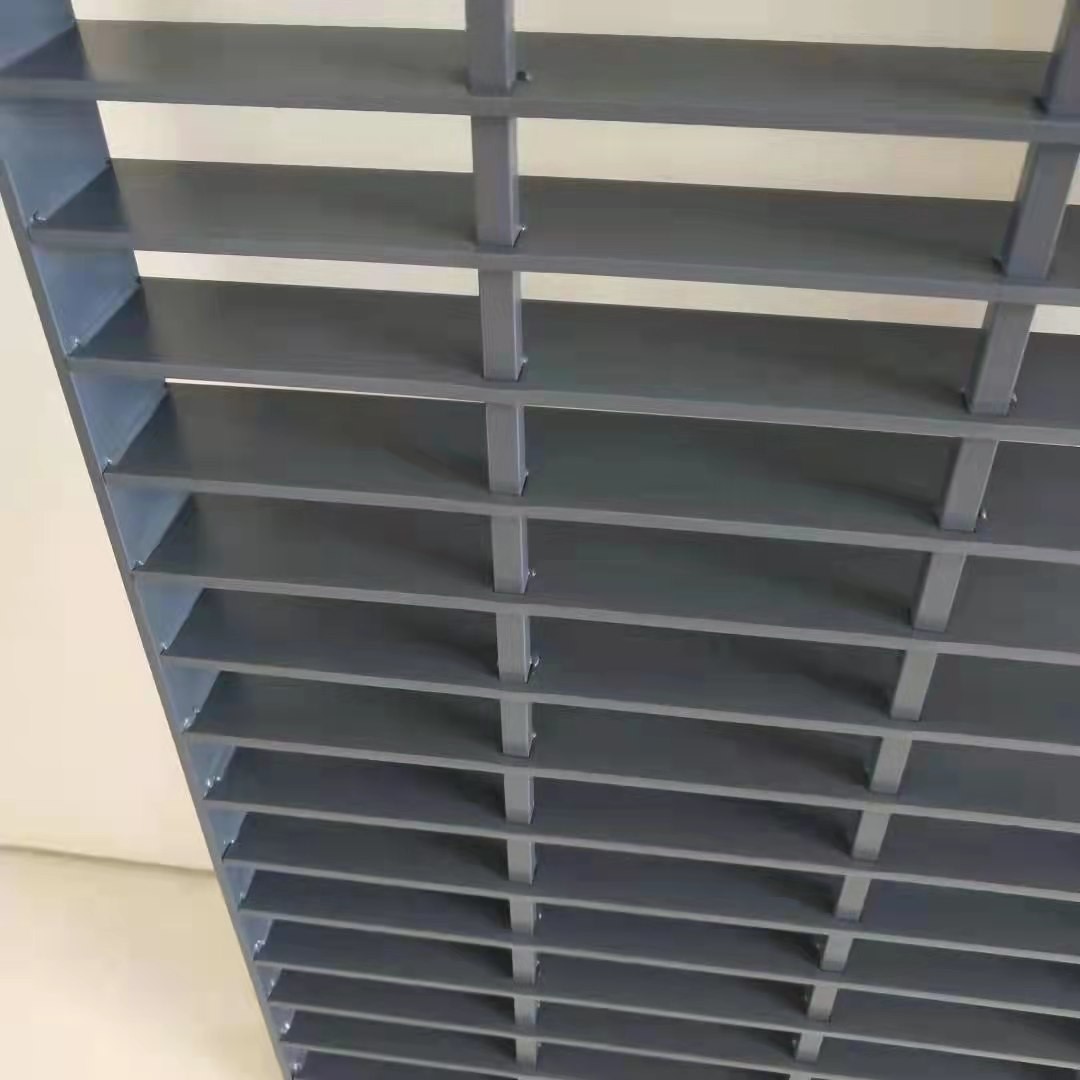

40*3mm Plain Steel Aluminum Swage Locked Grating Powder Coating With Horticulture

  • 40*3mm Plain Steel Aluminum Swage Locked Grating Powder Coating With Horticulture
  • 40*3mm Plain Steel Aluminum Swage Locked Grating Powder Coating With Horticulture
Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 6063 T6 Surface Finish Anodized
Model Number EM-025 Cross Bar Pitch 30, 40, 60, 100mm
High Light

powder coating aluminum swage locked grating

,

40*3mm aluminum swage locked grating

,

40x3mm aluminum bar grating
Leave a Message
Product Description

40*3mm Plain Steel Grating Powder Coating Swage-Locked Aluminum Steel Grating With Horticulture

Product Description

Aluminum bar grating is an ideal choice when a lightweight, corrosion resistant material is desired. Aluminum grating can be used for a variety of industrial applications, due its versatile and durable properties. our offers many options for aluminum bar grating, such as: rectangular bar, flush top, riveted, plank and I-bar aluminum bar grating products.



Product Show







Aluminum Swaged Rectangular Bar Grating:


1. Pressure locked by permanently attaching cross bars to bearing bars through a pressure applied swaging process
2. Bearing bar sizes range from 1" x 1/8" through 2-1/2" x 3/16" in 1/4" increments
3. Bearing bar spacing of 1-3/16", 15/16", 11/16" and 7/16" c.c. with cross bar spacing of 4" or 2"
4. Press locked bar grating serrated surface can be provided when skid resistance is needed

​





Aluminum I-Bar Grating:


1. Pressure locked aluminum grating which utilizes an “I” shaped bearing bar
2. Bearing bar sizes range from 1" x 1/4" through 2-1/2" x 1/4" in 1/4" increments
3. Bearing bar spacing of 1-3/16", 15/16", 11/16" and 7/16" c.c. with crossbar spacing of 4" or 2"
4. Design consideration of the aluminum grating allows for the same load carrying capacity at less grating weight per square foot than rectangular bar, which results in cost savings




Product Specifications



Aluminum grating Part Number Bearing bar size
I-Bar Swage Locked 19-SI-4
15-SI-4
11-SI-4		 (1-3/16")
(15/16")
(11/16")
I-Bar Swage Locked Close-Mesh 8-SI-4 (1/2")
Rectangular Bar Swage-Locked & Press Locked 19-SR-4,19-AP-4
15-SR-4, 15-AP-4		 (1-3/16")
(15/16")
Press-Locked Close Mesh 3-AP-4 (13/16")
Rectangular Bar Swage-Locked Close Mesh &Press-Locked Close Mesh 11-SR-4, 11-AP-4
10-AP-4
8-SR-4, 8-AP-4
7-AP-4		 (11/16")
(5/8")
(1/2")
(7/16")








Application





1 Storage facilities
2 processing plants
3 Food preparation
4 bottling facilities
5 Breweries



Advantage



1. Non-toxic


2.Lightweight


3. Resilient & durable


4. Corrosion resistant


5.High strength-to-weight ratio


6. Can be fabricated and customized


7 .Easily recycled & versatile



Product Process


One of the most common methods of manufacturing aluminum grating is through a swaging process. Swaged aluminum bar grating is defined by the NAAMM Metal Bar Grating Manual as “Grating in which the crossbars are mechanically locked to the bearing bars at their intersections by deforming or swaging the metal.”
