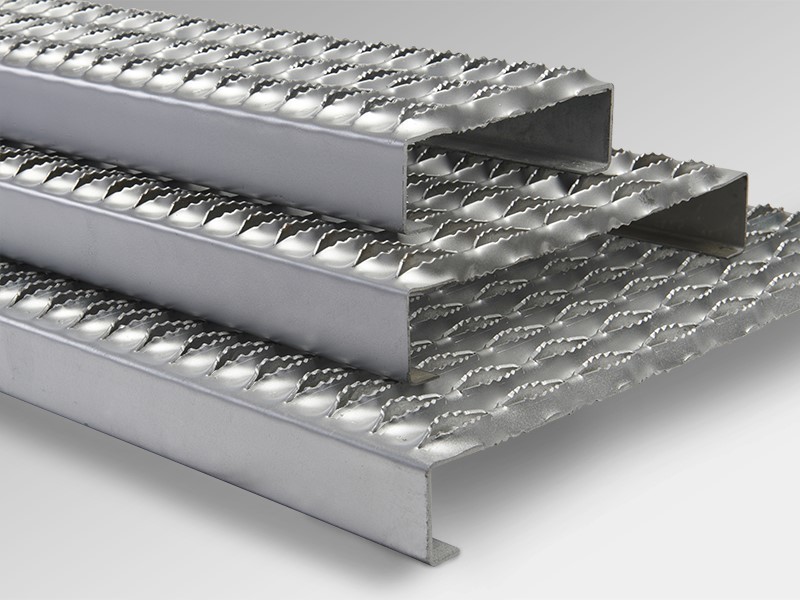

High Quality Strength Diamond Grip Grating Safety Strut Stair Treads

Place of Origin anping
Brand Name TT
Certification iso
Model Number q235
Minimum Order Quantity 50sqm
Price U.S 22.5-20.2 sq.m
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 15days
Payment Terms T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability 500sq.m per days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Texture Stainless Steel Surface Treatment Hot/Cold - DIP/NO
Bearing Product Attribute Application Wally/passageway/plant
Material Steel Function Anti-slip
High Light

high strength diamond grip grating

,

stair treads diamond grip grating

,

diamond high strength grip strut grating

Leave a Message
Product Description

Economical to install, use
In addition to low material cost and nominal erection cost,
Grip Strut Safety Grating also saves with its long-lasting, rustresisting materials and finishes. Standard mill-galvanized finish
resists corrosion to provide lasting surfaces. High-strength
aluminum and Types 304 and 316L stainless steel are available
to provide maximum corrosion resistance. Black unpainted
steel available for installations requiring hot dipped galvanized
finish after fabrication. These light weight but brawny panels
permit substantial reduction in structural steel requirements.
Open design is self-cleaning and virtually maintenance free.

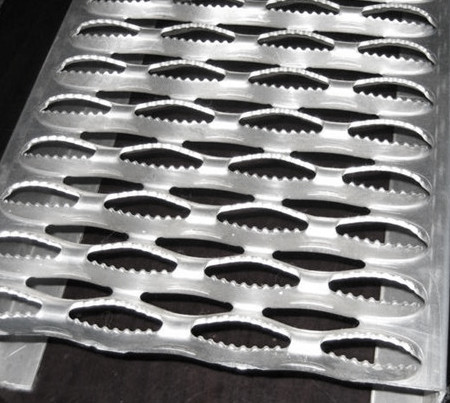

Safer, serrated surface
Grips soles securely — in all directions — in practically every
place. These non-slip Grip Strut Grating surfaces are ideal for
inside or outside locations where mud, ice, snow, oil and
detergents can create hazardous walking conditions. Openings
are small enough to catch most falling tools and other
dangerous objects.
Maintenance-free open design
Permits quick drainage of fluids, chips, grease and mud. Any
ice accumulation shears easily under normal foot pressure.
Open design allows convenient access for cleaning. It is easily
cleaned with brush, liquid or air spray to minimize overall
maintenance.
High load capacity, long life
High strength-to-weight performance is achieved through depth
of section and structural design. Bridged struts with integral
side channels form a plank that can support loads with
minimum transverse and longitudinal deflection. There are no
rivets or pressure joints to break or loosen. This sturdy
construction provides the advantages of heavy load-carrying
capacity with minimal deflection; rugged durability with longerlasting performance.
Fast Installation
Light, easy-to-handle planks make installation simpler and
quicker. They can be handled by one man. Most sections are
rapidly bolted, clamped or welded into place, easily field-cut at
virtually any angle, or fabricated to adapt to field conditions.
Several attachment devices permit fastening to most existing
surfaces; allow fast installation or disassembly.
Economical to install, use
In addition to low material cost and nominal erection cost,
Grip Strut Safety Grating also saves with its long-lasting, rustresisting materials and finishes. Standard mill-galvanized finish
resists corrosion to provide lasting surfaces. High-strength
aluminum and Types 304 and 316L stainless steel are available
to provide maximum corrosion resistance. Black unpainted
steel available for installations requiring hot dipped galvanized
finish after fabrication. These light weight but brawny panels
permit substantial reduction in structural steel requirements.
Open design is self-cleaning and virtually maintenance free.
Versatile in application
A variety of Standard widths and channel heights combine
with numerous Non-Standard shapes and sizes to meet almost
any requirement of strength, size, durability, weight, finish,
appearance and application. Grip Strut Safety Grating combines
safety and durability with ease of fabrication and versatility. One
piece construction — no welds or rivets to fail — minimizes
need for plant fabrication. Special shapes and forming can be
accomplished to suit unusual requirements.

High Quality Strength Diamond Grip Grating Safety Strut Stair Treads 0High Quality Strength Diamond Grip Grating Safety Strut Stair Treads 1High Quality Strength Diamond Grip Grating Safety Strut Stair Treads 2

High Quality Strength Diamond Grip Grating Safety Strut Stair Treads 3



FAQ
Q: Quotation time
A:We usually quote with 12 hours after getting inquiry .
Q:How can I get a sample to check your quality ?
A:We are very glad to post you samples before order .
Q:Can you do the design for us ?
A:Yes , We have a professional team with rich experience in design .
Q:What is the lead time for mass production ?
A:It depends on the order quantity and the season you place the order . The lead time is about 7-10days !
