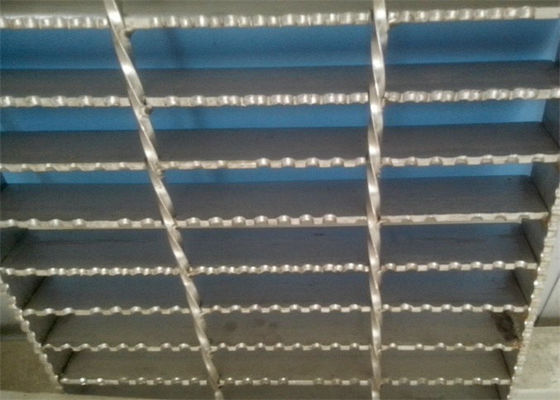

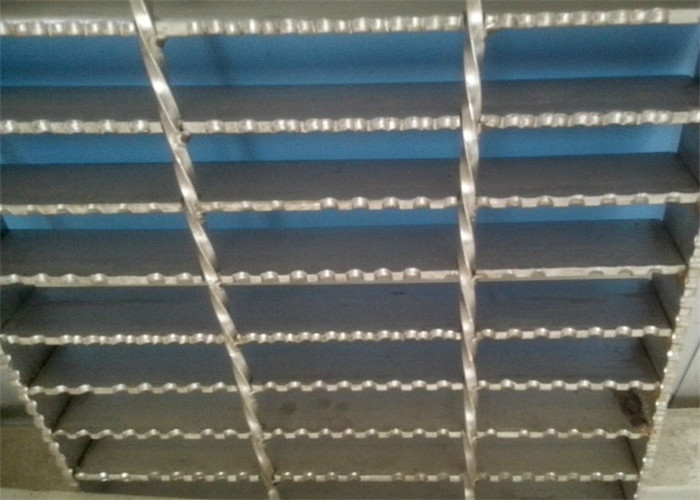

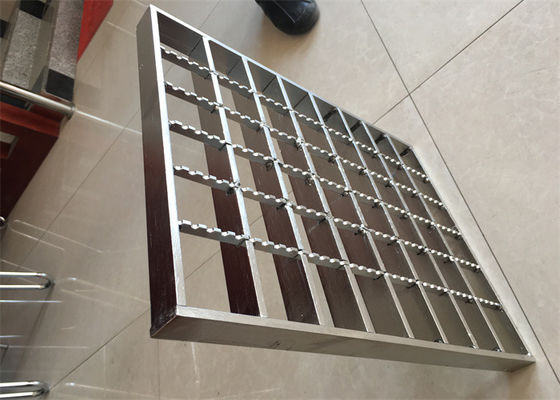

316l Material Stainless Steel Grating Polish Serrated Surface For Shop

Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month
Product Details
Material Stainless Steel Color Silver
Product Name Hot Dipped Galvanized Platform Serrated Floor Steel Grating In Metal Building Materials Thickness 0.12 ----1.50mm
High Light

0.12mm thickness stainless steel grating

,

shop 316l stainless steel grating

,

punched hole serrated grating

Leave a Message
Product Description

316L Material Polish Serrated Surface Stainless Steel Grating For Shop



Product Description

stainless steel gratings are suited for a wide range of applications owing to their almost total resistance to a large number of substances. They are a very popular choice, for example, in the food processing industry, in breweries or in beverage manufacturing. Pharmaceutical and cosmetics producers also use stainless steel gratings in their plants and mechanical systems, as do all chemical corporations.



Property developers, too, swear by stainless steel gratings. Thanks to their uniform, attractive surface, stainless steel gratings are the solution of choice for aesthetic architecture.



Product Specification




Bearing bar 25x5x3,32x5x3,38x5x3,50x7x4,60x7x4,...75x7x4mm
Bear bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
Crossbar pitch 38,50,76,100,101.6mm
Material 304,316,316L
Surface treatment Polish
Standard USA: ANSI/NAAMM(MBG531-88)  UK: BS4592-1987  Australia: AS1657-1985





Product Type



Type “WS” Welded Stainless Steel Grating



Our strongest and most economical stainless product, type WS gratings are made by forge welding rectangular bearing bars and drawn crossbars. The welding process provides a positive fused intersection providing years of service under the most demanding conditions.

Type WS stainless gratings are available in 19 spaces (1-3/16”), 15 spaces (15/16”), and 11 spaces (11/16”) bearing bar centers. Standard crossbar spacing is 4” on center with optional 2” spacing available.

316l Material Stainless Steel Grating Polish Serrated Surface For Shop 0

Type “SL” Swage Locked Stainless Steel Grating

Hollow tube crossbars are hydraulically swaged into pre-punched holes in the bearing bars to make type SLS swage locked stainless grating. This type of construction provides a secure bearing bar/crossbar intersection and products are available with bearing bar spacings ranging from 19/16” (1-3/16”) to 7/16” on center.

The swaged cross bars sit slightly below the top surface of the grating making this product very popular for “close mesh”, ADA conforming applications. 11 spaces and 7 spaces are ideal for vault covers or entrance mats located in a public way.



316l Material Stainless Steel Grating Polish Serrated Surface For Shop 1


Product HIGH INERTNESS

stainless steel gratings are manufactured using the same process as press-welded gratings. They are made from 1.4301 (V2A) grade stainless steel and pickled by total immersion. The passive coating produced in this way is resistant to water, steam, atmospheric humidity, and food acidifiers as well as to weak organic and inorganic acids. Stainless steel gratings have high inertness for this reason.

Stainless steel gratings require no additional corrosion protection. The chromium contained in the stainless steel forms an invisible oxide layer on the surface. It is this layer that makes the stainless steel grating so incredibly resistant to corrosion. That’s why stainless steel gratings are used wherever high corrosion and hygienic requirements apply.


Application

Common uses for stainless steel bar grating include walkways, catwalks, platforms, stairways, entranceways, and trench grating. Water treatment, chemical processing, oil and gas production, food processing, and outdoor industries can benefit from this grating type.


 Advantage

1
  • High strength and light structure
2
  • Powerful anti-corrosion, durable and long working life
3
  • Beautiful appearance, bright surface
4
  • No dirt-rain-snow deposit, automatic cleaning, easy maintenance
5
  • Easy installation and disassembly, can save wages.
