Light Duty 50mm Swage Locked Steel Walkway Grating
| Place of Origin | CN |
|---|---|
| Brand Name | Zhuote Metal |
| Certification | ISO9001 |
| Model Number | ZT325/30/100 |
| Minimum Order Quantity | 5tons |
| Price | 800$/tons |
| Packaging Details | Steel Belt Or Woden Box |
| Delivery Time | 5-10days |
| Payment Terms | T/T |
| Supply Ability | 300tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel,Q235,q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized,Painted,Black,untreated |
|---|---|---|---|
| Product Name | Steel Grating,Industrial Platform Metal Building Material Steel Grating Weight | Application | Floor,Walkway,platform,bridge |
| Thickness | 2mm-5mm,6mm | Standard | ISO9001 |
| Length | 100-3000mm,according To Your Size | Cross Bar Pitch | 50mm,As Customers' Requirement Or 40 |
| Bearing Bar Pitch | 30mm,on Request. | Name | Steel Grating |
| Width | 1000mm,according To Your Size | Shape | As Your Request |
| Factory | Yes | ||
| High Light | swage locked steel walkway grating,50mm steel walkway grating,light duty swage locked grating |
||
Product Description

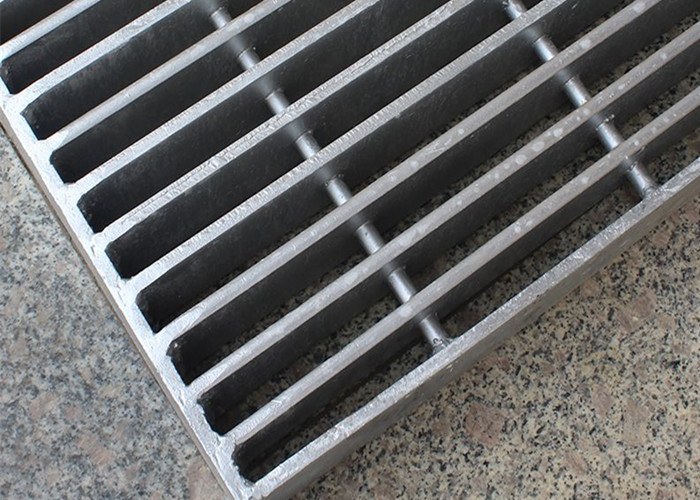

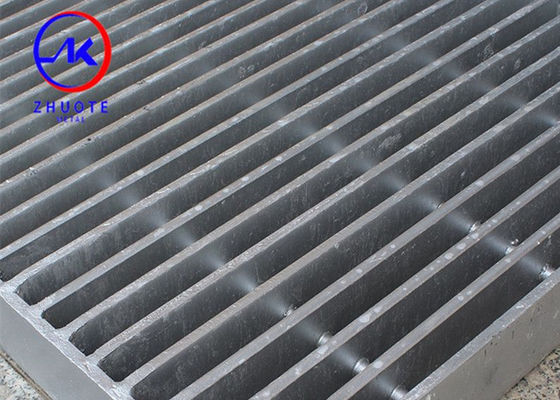

Swage Locked Steel walkway Grating

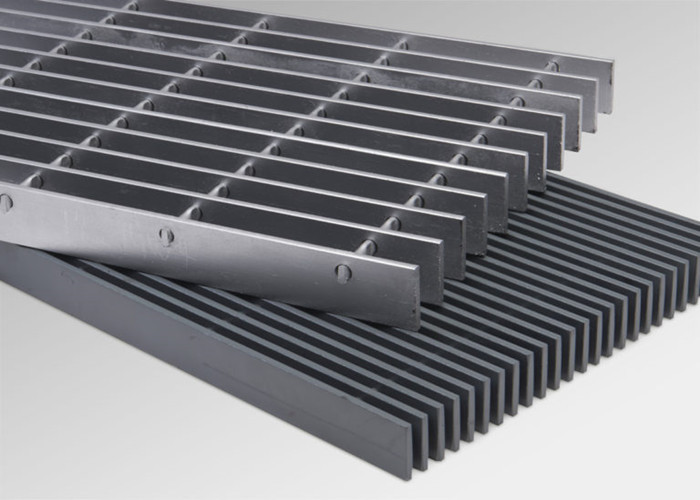

Type “SL” steel gratings are manufactured by inserting hollow tube cross bars into pre-punched holes in the bearing bars. The cross bars are then hydraulically compressed to form a positive mechanical connection. The cross bars are recessed below the top surface of the bearing bars providing a uniform and attractive architectural appearance.
Swaged grating is a heavy duty grating / open mesh flooring capable of withstanding vehicle loadings.
It has 6mm diameter round bar passing through the flooring at 100mm intervals and then spot welded on one side. This provides the grating with greater lateral restraint when subjected to breaking and acceleration motions of the vehicle.
Mesh Size
|
Loading bar centers
|
Cross bar centers | Bearing bar thickness | Loading bar depth |
|
|
|||
|
|
Applications
It is used where vehicles are likely to pass over the grating such as:
Vehicle wash areas
Loading bays.
Boat landings
Offshore oil rigs where trolleys can be pulled across the grating
Data centres.
