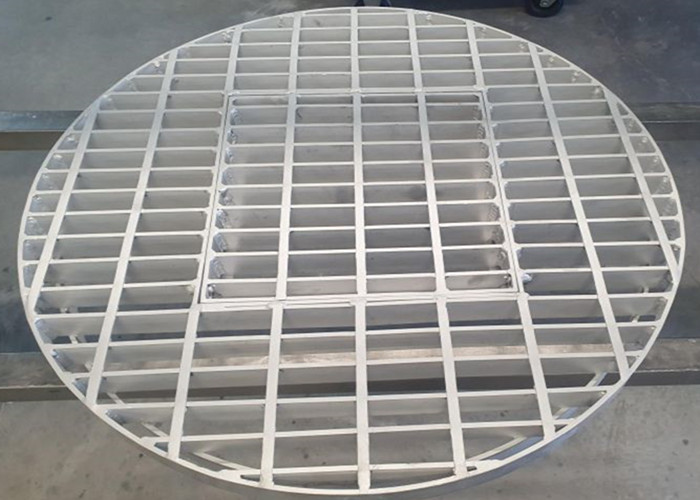

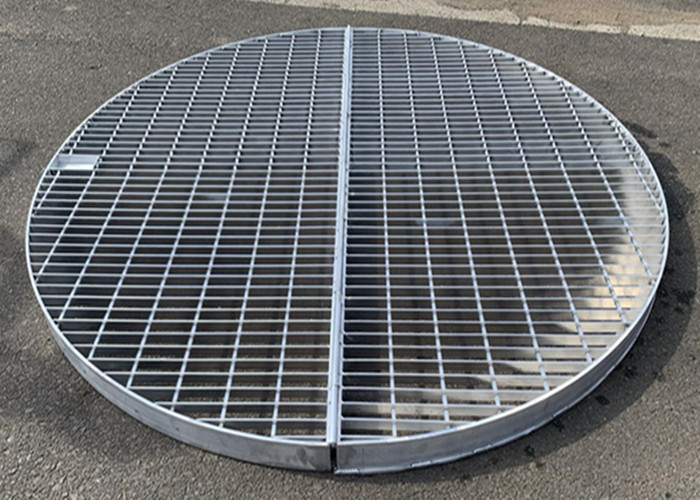

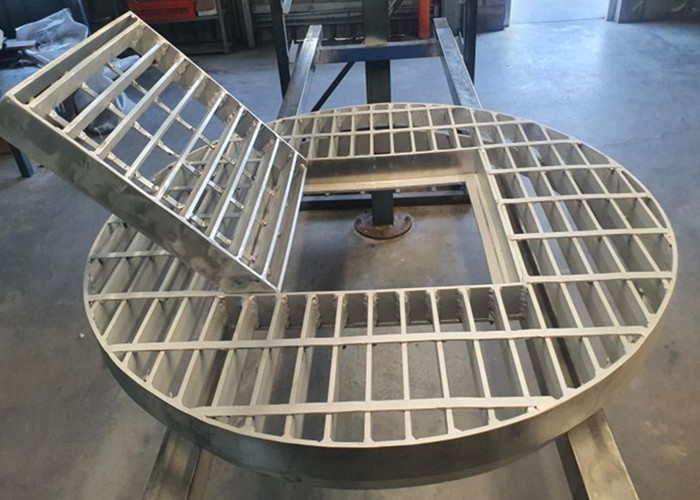

Round Shaped Q235 Galvanized Grate Trench Cover Drainage Cover Gully Cover
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Steel,q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized |
---|---|---|---|
Product Name | Construction Steel Floor Decking/Industrial GI Steel Grating,Deck Grating | Type | Plain Bar Grating,Flat |
Application | Floor,Walkway | Color | Silver,ect Or Custom |
Thickness | 2mm-5mm | Standard | ISO9001 |
Length | According To Your Size | Cross Bar Pitch | 50mm |
Bearing Bar Pitch | 30mm | Shape | As Required |
High Light | trench cover galvanized grate,q235 galvanized grate,gully cover galvanized steel grating |
Trench Grating Covers
Steel Trench Grates Used as Draining Covers in Waste Water System
Steel grating can be made into trench covers for well cover plates and gully covers. We can customize other types according to customer demands and drawings. Our trench cover plate generally consists of the steel grating, the angle iron frame and the embedded part. Surface treatment: Hot dip galvanizing.
Trench grates are used as draining cover, gully cover and well cover is used in city public works.
Processing and Welding of Trench Grating Covers:
1.lt is to use of high frequency automatic welding machine to do welding on the hot dip galvanized gratings and covers (except end plate welding).
It is not allowed to create melting-corrosion on the based material.
2.Material: Q195 or Q235 low carbon steel
3.Surface Treatment: After grating is formed, the surface is by hot dip galvanization; the thickness of galvanization is 610 g/m2.
4.End Plate Welding: Two sides of gratings are welded on with H*6 mm flat steel.
Welding slag is required to be cleaned.
No | Item | Description |
1 | Bearing bar | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
2 | Bear bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
3 | Cross bar pitch | 38,50,76,100,101.6mm |
4 | Material | Q235,A36,SS304 |
5 | Surface treatment | Black, hot dipped galvanising, paint |
6 | Standard | China: YB/T 4001.1-2007 |
USA: ANSI/NAAMM(MBG531-88) | ||
UK: BS4592-1987 | ||
Australia: AS1657-1985 |
Features:
Attractive appearance: Simple lines, silver surface and modern conception.
Optimized Draining Design: Water draining area amounts up to 83.3%, which is equal to twice of the cast iron product.
Hot-dip Galvanization for Trench Steel Grates: Strongly rust-proof, need no maintenance and replacement within 30 years.
Anti-theft Design: The draining cover and the frame are connected with chains, which is anti-theft, safe and easy to open.
Saving Investment: Cost less than cast iron product in the case of large span and heavy load, and can save expenses incurred by replacement of stolen or crushed cast iron covers.
