Welded Walkway Q235 Grade Industrial Steel Grating Anti Rust

  • Welded Walkway Q235 Grade Industrial Steel Grating Anti Rust
  • Welded Walkway Q235 Grade Industrial Steel Grating Anti Rust
Brand Name ZT
Certification ISO 9001-2015
Model Number TT-4
Minimum Order Quantity 3tons
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10 work days
Payment Terms L/C T/T
Supply Ability 100 TONS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Hebei, China Warranty 2 Year
Size Customzed Alloy Or Not Non-Alloy
Project Solution Capability 3D Model Design Shape Various
Thinkness 3-10mm Bearing Product Attribute
Packing Steel Pallet Certificate ISO9001
Raw Material Low Carbon Steel Wire Q235 Product Name Stainless Steel Trench
High Light

q235 grade industrial steel grating

,

anti rust industrial steel grating

,

q235 grade welded steel grating
Leave a Message
Product Description

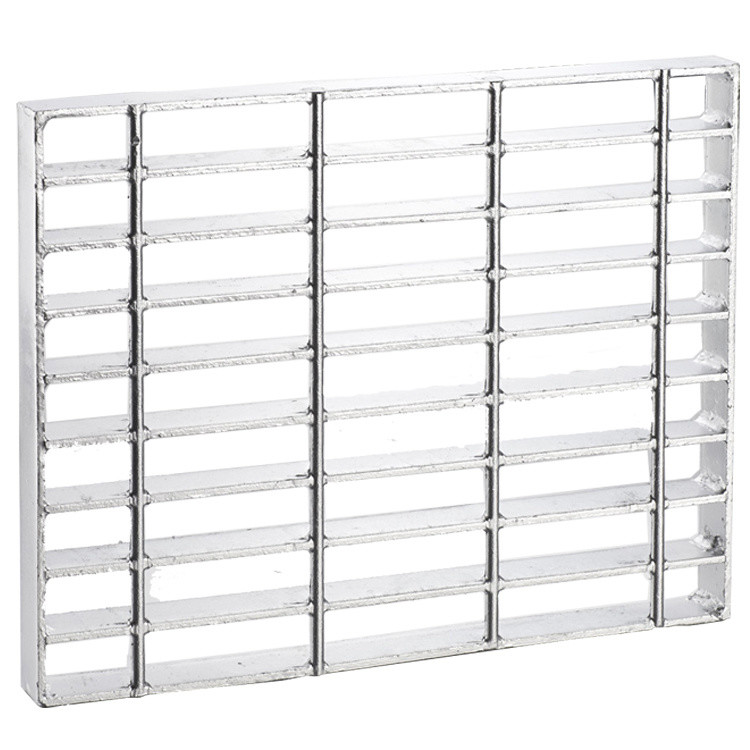

Galvanized steel walkway bar grating weight And Welded Steel Grating Walkway On Sale







Product Specification



Galvanized grating, also known as galvanized steel grating or galvanized steel grating, is a steel grating made of low-carbonsteel through hot-dip galvanizing surface treatment.
Low carbon steel provides cost-effective high strength for many industrial and commercial applications. And the hot-dip galvanized surface treatment material has excellent anti-rust efficiency, strong and durable.

Welded Walkway Q235 Grade Industrial Steel Grating Anti Rust 0



Parameters
Data
Bear Bar Type
Flat Bar, I-Bar, Serrated Bar, etc..
Bearing Bar Size
20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc..
Bearing Bar Spacing
20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier.
Cross Bar Type
Twisted Steel Rod, Flat Bar
Cross Bar Size
3mm, 4mm, 5mm ,6mm or thicker
Cross Bar Spacing
50mm or 100mm
Bearing Bar Length
Customerized from 1000mm to 6000mm or more
Cross Bar Length
Under 1200mm
Material Grade
Mild Steel(Q235B), Stainless Steel 304 or 316, etc.
Treatment Available
Hot dipped Galvanized, Anodized, Polished and Powder Coated
HS code
7308900000



Product Details



Welded Walkway Q235 Grade Industrial Steel Grating Anti Rust 1

Welded Walkway Q235 Grade Industrial Steel Grating Anti Rust 2

Welded galvanized grille. The crossbar is glued to the bearing rod with a high-pressure welding machine, and then reduced in diameter, bundled, and surface treated. Pressure lock galvanized grille. The crossbar is locked on the bearing rod by slotting and welding and hot-dip galvanizing pressure.
