1200 X 70 Ss Floor Grating Heelguard Pattern Grate Drain Cover
| Place of Origin | CHINA |
|---|---|
| Brand Name | ZT |
| Certification | ISO |
| Model Number | G325 |
| Minimum Order Quantity | 100sq.m |
| Price | negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 5-8work days |
| Payment Terms | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability | 500sq.m per days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Floor,Walkway,Industrial Platform,steel Structure,drainage | Material | Steel,Q235,304 316 Stainless Steel |
|---|---|---|---|
| Surface Treatment | Hot Dipped Galvanized,painting,Galvanized | Product Name | Steel Grating,Stainless Steel Grate 304,Hot Sale Stainless Steel /galvanized Steel Bar Grating/safety Grating,25 X 5 Hot-dip Galvanized Steel Grating Prices,Floor Drain Grate/Floor Drain/Wedge Wire Strip Drain Grate |
| Type | Plain Bar Grating,Serrated Bar Grating,I Bar Grating | Color | Silver,black,available To Any Colors,on Your Request,ect Or Custom |
| Length | 300-3000mm,800mm,6000mm,Customers' Demand | Name | Steel Sheet Grating,Steel Floor Decking,composite Drainage Cover Road Drain Grating Covers / Manhole Cover,steel Bar Grating |
| Standard | ISO9001 | Thickness | 5mm,0.3-1.0mm |
| Cross Bar Pitch | 120,60,76 | Size | Customized,300*450*35 |
| Width | 600-1250mm,70-600mm | Feature | Easily Assembled,Durable,Corrode-resistant,less Weight |
| Keywords | Heavy Duty Stainless Steel Metal Floor Bar Grating,galvanized Steel Grating | Bearing Bar Pitch | 25,30mm,on Request. |
| Packing | Pallet,Wooden Box | Grating Size | 3'x20',1000x1000mm,1000x6000mm And All |
| Process | Pressure-locked,Swage Locked,Casting. Deburring .Drilling .threading | ||
| High Light | 1200 x 70 ss floor grating,heelguard pattern ss floor grating,shower grates 316 stainless steel |
||
Product Description

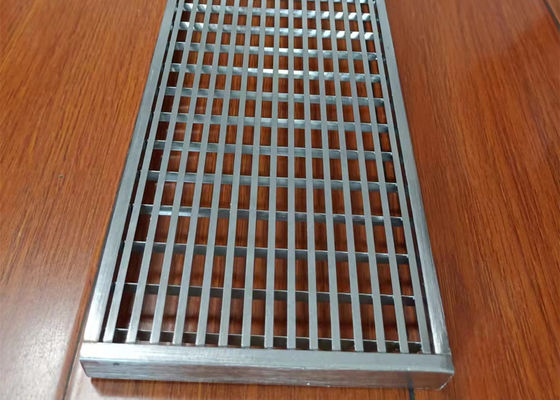

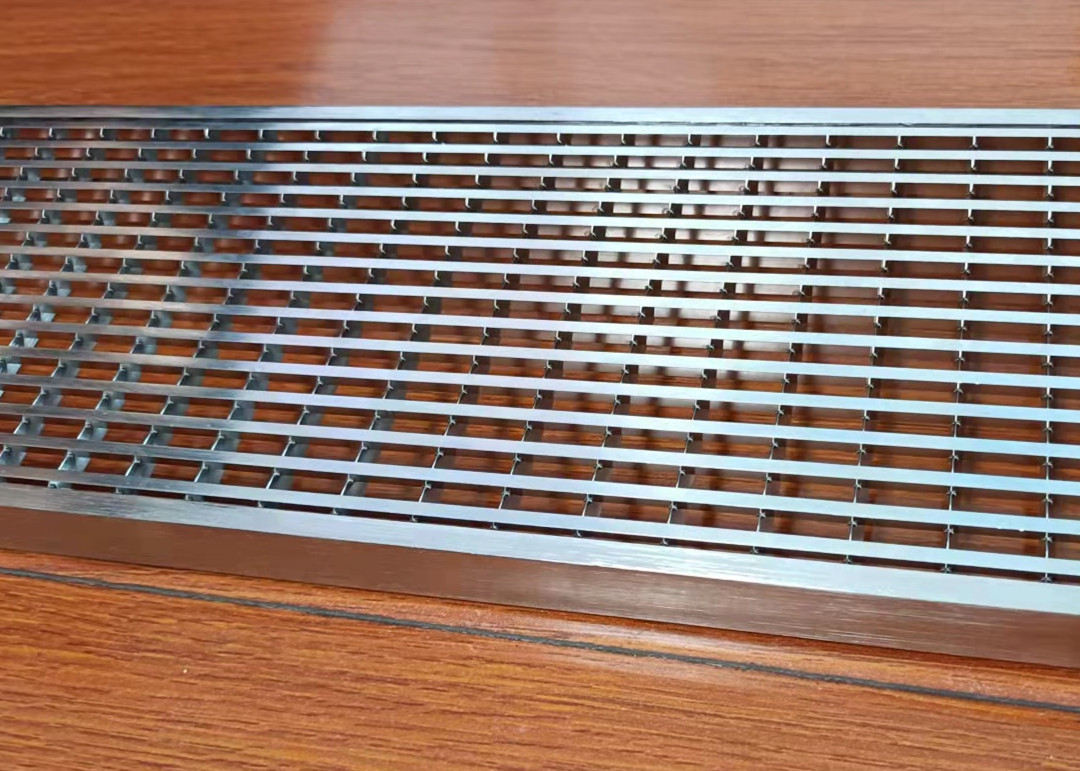

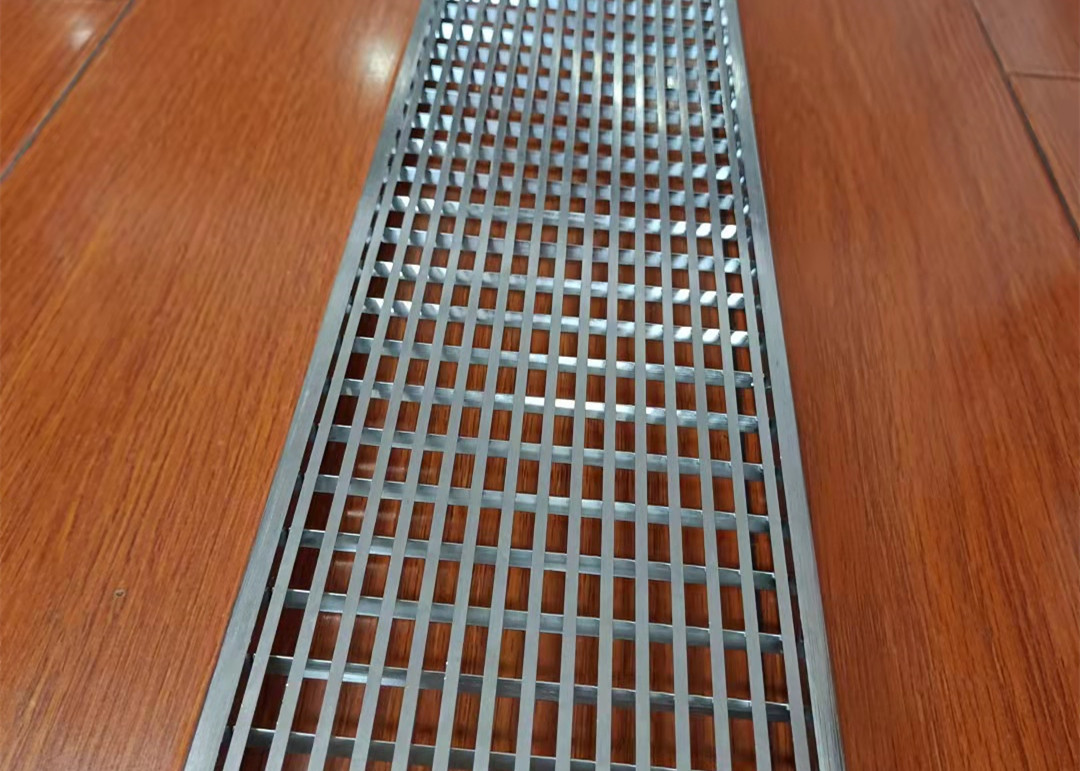

1200 X 70 Heelguard Pattern Grate Drain Cover Stainless Steel Grating
1200mm Long x 70mm Wide x 22mm Deep - Heelguard Pattern Stainless Grate and Drain with Loose Outlet (Do it Yourself). Drain Base does not come with folds. Outlet is supplied loose and is 50.8 OD. Outlet can easily be cut on site by a holesaw wherever the customer needs, then fixed using an adhesive (not supplied). Grate is our Heelguard Pattern. Heelguard grate is also know as a wedge wire grate. Our Heelguard grates come with full edge bars welded on the side and at the end of the grate giving the grate a more architectural and neat look. Other styles available, check out our other styles. Both grate top and drain base are made from 304 Stainless Steel.
The 316 stainless steel grate provides a prestige finish with design flexibility to allow it to be used in contemporary or classic styles.
Available in 38mm and 65mm widths
Product ApplicationsBathrooms
Suspended Slabs and Balconies
Thresholds and Doortracks
Driveways
Pools and Paved Areas
Patios, Courtyards and Terraces
Commercial Applications and Large Scale Projects
Special Needs Access
|
Parameters |
Data |
|
Bear Bar Type |
Flat Bar, I-Bar, Serrated Bar, etc.. |
|
Bearing Bar Size |
20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.. |
|
Bearing Bar Spacing |
20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier. |
|
Cross Bar Type |
Twisted Steel Rod, Flat Bar |
|
Cross Bar Size |
3mm, 4mm, 5mm ,6mm or thicker |
|
Cross Bar Spacing |
50mm or 100mm |
|
Bearing Bar Length |
Customerized from 1000mm to 6000mm or more |
|
Cross Bar Length |
Under 1200mm |
|
Material Grade |
Mild Steel(Q235B), Stainless Steel 304 or 316, etc. |
|
Treatment Available |
Hot dipped Galvanized, Anodized, Polished and Powder Coated |
|
Standards |
Steel Grating Standard |
Steel Material Standard |
HDG Coating Standard |
|
China |
YB/T4001-1998 |
GB700-88 |
GB/T13912-92 |
|
USA |
ANSI/NAAMM(MBG531-88) |
ASTM-A36 |
ASTM-A123 |
|
UK |
BS4592-1987 |
BS4360(43A) |
BS729 |
|
Australia |
ASl 657-1992 |
AS3679 |
ASl650 |
Product display:
Application:
indoor:bathroom, shower room, kitchen, Shopping mall, Super market, warehouse, Hotels, Clubhouses, Gyms, Spas, Restaurants, etc.
outdoor:walkway,square, New Construction, Resorts, Driveways, Balconies,Pools, Storm Drainage,Universities, Schools, Office Buildings, etc
Product certification
FAQ
1. How can I get a catalogue?
Please call us or send us email. We will reply within 24 hours.
2. Is customized product available ?
Besides common size, we accept customized fabrication. Just let us know your requirements.
3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
