Food Grade 316 Stainless Steel Grating Channel Drain Wedge Wire

Place of Origin CHINA
Brand Name ZT
Certification ISO
Model Number G325
Minimum Order Quantity 100sq.m
Price negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8work days
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 500sq.m per days
Product Details
Application Floor,Walkway,Industrial Platform,steel Structure,drainage Material Steel,Q235,304 316 Stainless Steel
Surface Treatment Hot Dipped Galvanized,painting,Galvanized Product Name Steel Grating,Stainless Steel Grate 304,Hot Sale Stainless Steel /galvanized Steel Bar Grating/safety Grating,25 X 5 Hot-dip Galvanized Steel Grating Prices,Floor Drain Grate/Floor Drain/Wedge Wire Strip Drain Grate
Type Plain Bar Grating,Serrated Bar Grating,I Bar Grating Color Silver,black,available To Any Colors,on Your Request,ect Or Custom
Length 300-3000mm,800mm,6000mm,Customers' Demand Name Steel Sheet Grating,Steel Floor Decking,composite Drainage Cover Road Drain Grating Covers / Manhole Cover,steel Bar Grating
Standard ISO9001 Thickness 5mm,0.3-1.0mm
Cross Bar Pitch 120,60,76 Size Customized,300*450*35
Width 600-1250mm,70-600mm Feature Easily Assembled,Durable,Corrode-resistant,less Weight
Keywords Heavy Duty Stainless Steel Metal Floor Bar Grating,galvanized Steel Grating Bearing Bar Pitch 25,30mm,on Request.
Packing Pallet,Wooden Box Grating Size 3'x20',1000x1000mm,1000x6000mm And All
Process Pressure-locked,Swage Locked,Casting. Deburring .Drilling .threading
High Light

food grade 316 stainless steel grating


channel drain 316 stainless steel grating


wedge wire ss grating

Leave a Message
Product Description


316 Food Grade Stainless Grate Channel Drain Wedge Wire Grating



HEELGUARD technology drain grates are constructed with your safety in mind. We’ve created our stainless steel drains in a grid form with a non-slip finish that is easy to walk across. The holes are also small enough that any worries about your child’s fingers being stuck in there, or something falling in, are unfounded. The grid form is also aesthetically pleasing, with a narrow profile specifically designed to blend into all types of flooring.

Our stainless steel grates are perfectly suited to public spaces, such as public plazas, railway stations, outdoor malls or streetscapes. They are slip resistant and can be walked across safely, even while wearing high heels, as they will not get caught. This unique design prevents possible falls and injuries, reducing the risk of lawsuits. Also, all our HEELGUARD gratings are designed to withstand high volumes of foot traffic and withstand the test of time.


Material: Stainless steel 304, Stainless steel 316

Size: 50mm-400mm width, 500-3000mm length.

Usage: Residential Project, Commerical Project, Bathroom, Swimming Pool, Outdoor, Balcony, Bar and so on

  • water mark approved and certified
  • manufactured from Marine Grade Stainless Steel
  • Inbuilt fall to assist with water flow
  • Fully elded design to eliminate leaks
  • Special orders can be manufactured to your specific size requirements





Bear Bar Type

Flat Bar, I-Bar, Serrated Bar, etc..

Bearing Bar Size

20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc..

Bearing Bar Spacing

20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier.

Cross Bar Type

Twisted Steel Rod, Flat Bar

Cross Bar Size

3mm, 4mm, 5mm ,6mm or thicker

Cross Bar Spacing

50mm or 100mm

Bearing Bar Length

Customerized from 1000mm to 6000mm or more

Cross Bar Length

Under 1200mm

Material Grade

Mild Steel(Q235B), Stainless Steel 304 or 316, etc.

Treatment Available

Hot dipped Galvanized, Anodized, Polished and Powder Coated


Steel Grating Standard

Steel Material Standard

HDG Coating Standard














ASl 657-1992

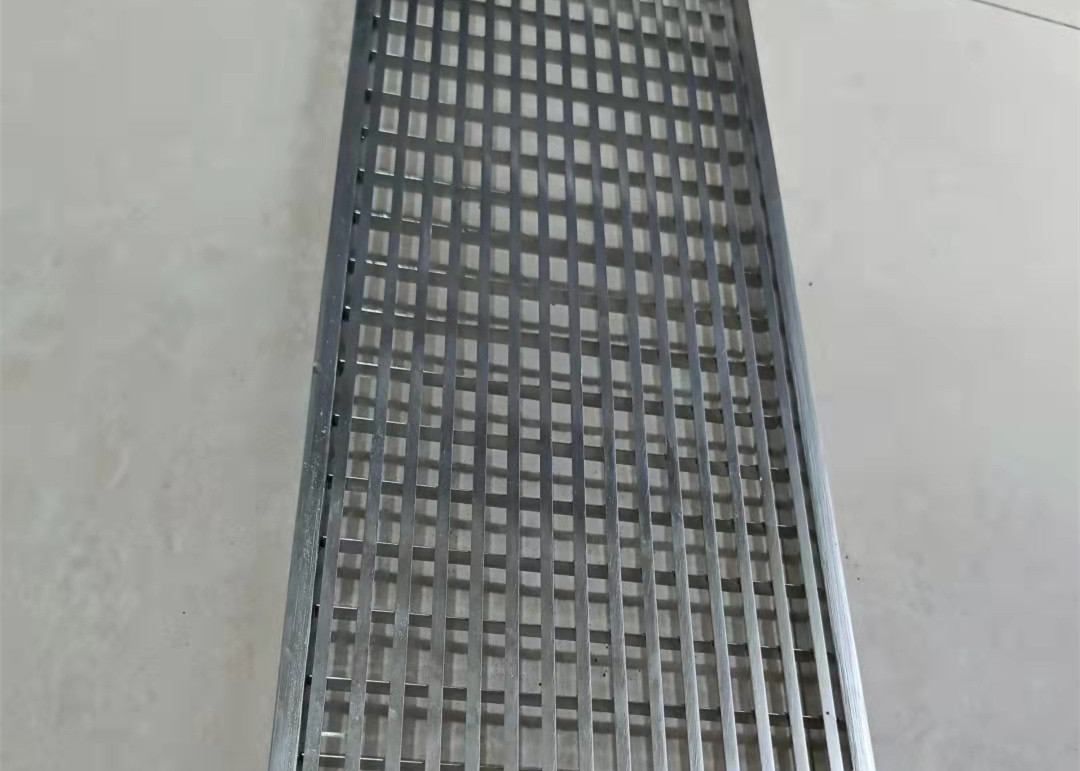

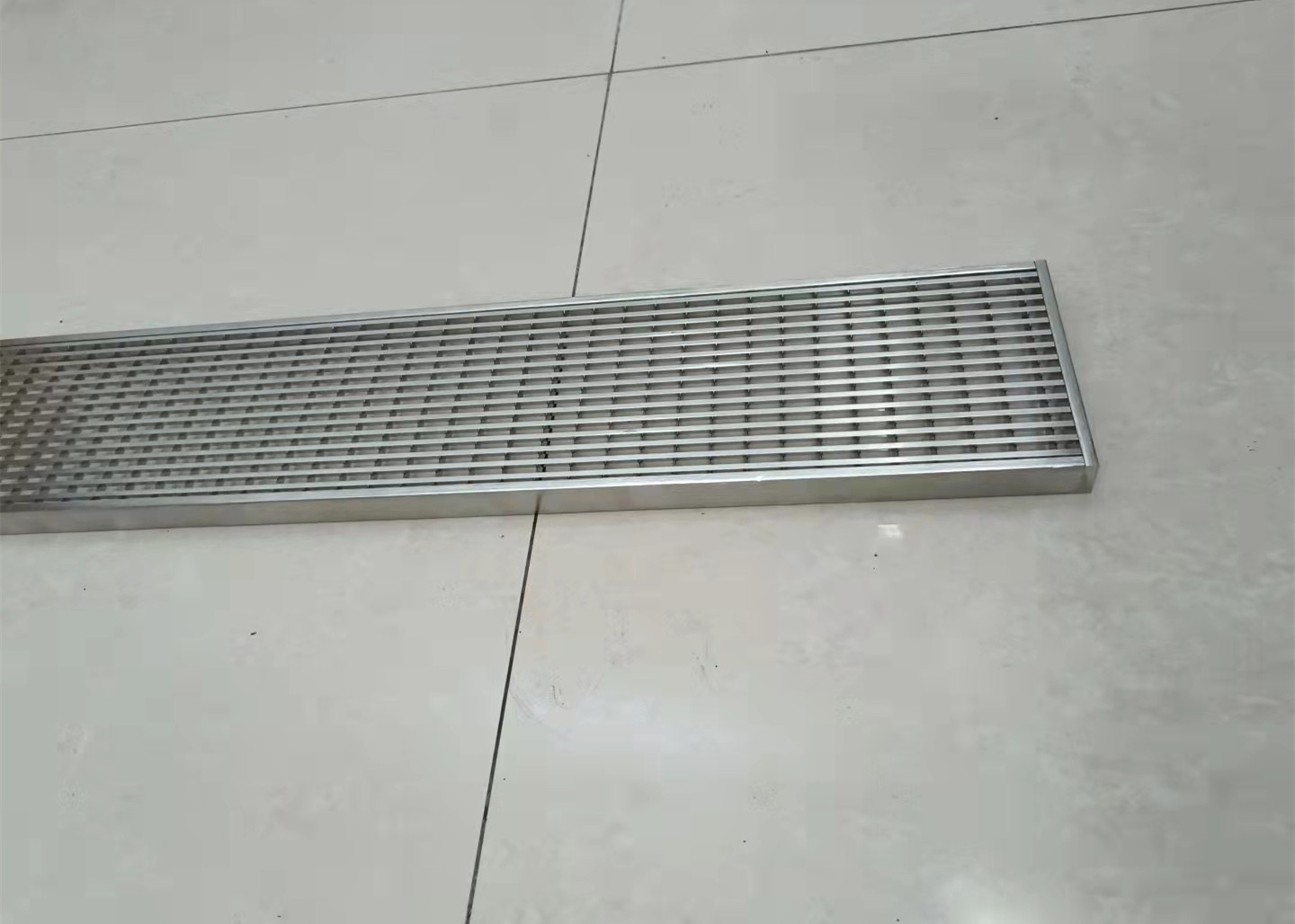

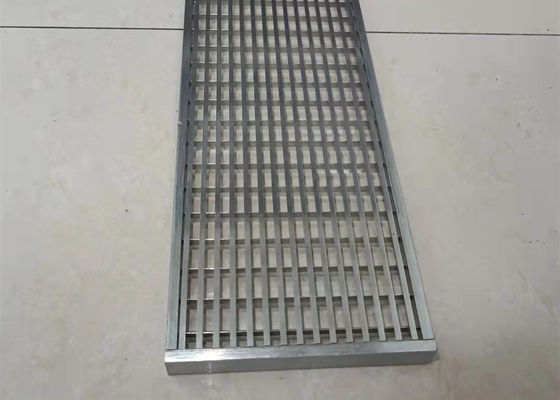

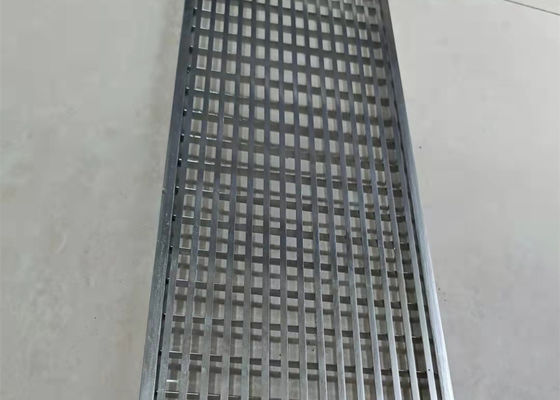

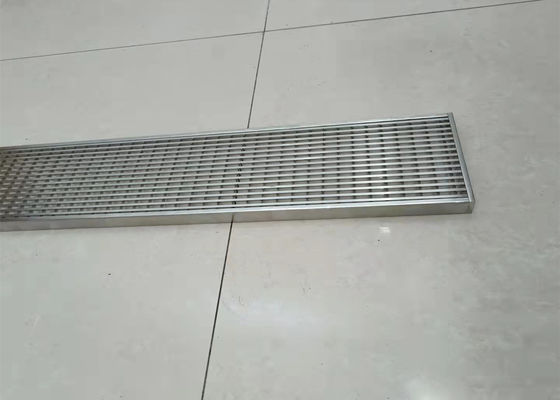

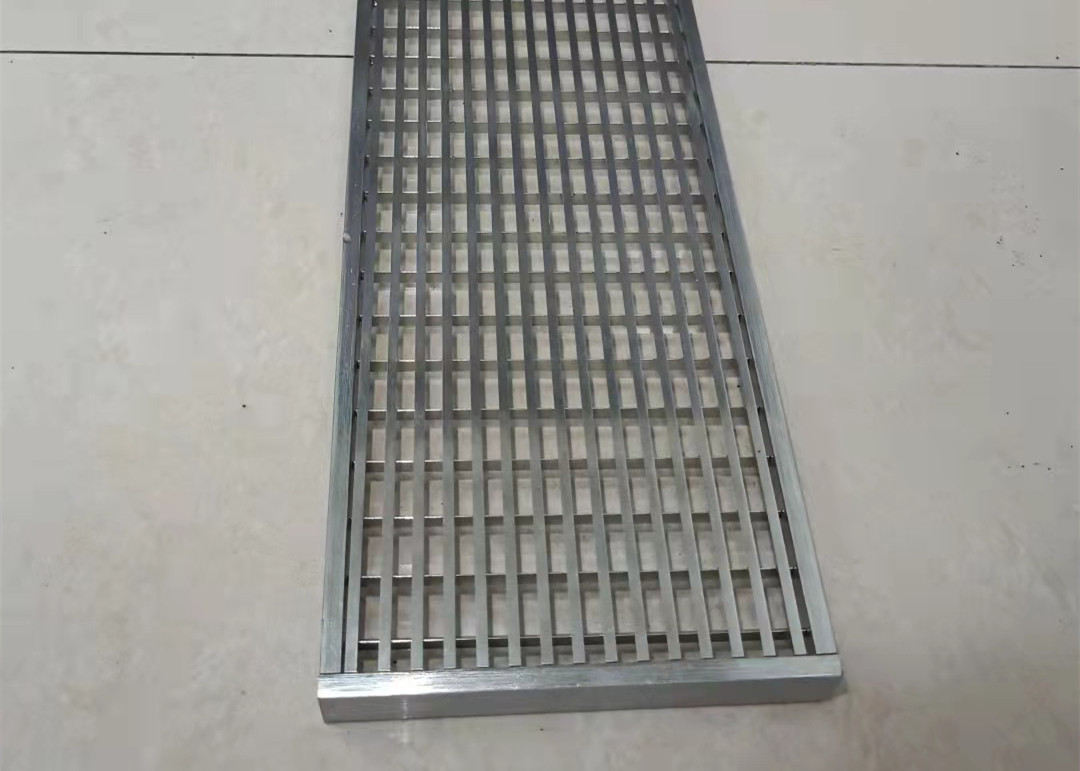

Product display:

Food Grade 316 Stainless Steel Grating Channel Drain Wedge Wire 0Food Grade 316 Stainless Steel Grating Channel Drain Wedge Wire 1


indoor:bathroom, shower room, kitchen, Shopping mall, Super market, warehouse, Hotels, Clubhouses, Gyms, Spas, Restaurants, etc.
outdoor:walkway,square, New Construction, Resorts, Driveways, Balconies,Pools, Storm Drainage,Universities, Schools, Office Buildings, etc

Food Grade 316 Stainless Steel Grating Channel Drain Wedge Wire 2


Product certification

Food Grade 316 Stainless Steel Grating Channel Drain Wedge Wire 3



1. How can I get a catalogue?

Please call us or send us email. We will reply within 24 hours.


2. Is customized product available ?

Besides common size, we accept customized fabrication. Just let us know your requirements.


3. How long after I place an order can I expect delivery?

This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
