Flooring Drainage Cover Grating With 5mm Thickness Stainless Steel 316 Heavy Duty Drainage Channel

Place of Origin CHINA
Brand Name ZT
Certification ISO
Model Number G325
Minimum Order Quantity 100sq.m
Price U.S 22.5-20.2 sq.m
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8work days
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 500sq.m per days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Floor,Walkway,Industrial Platform,steel Structure,drainage Material 304 316 Stainless Steel
Surface Treatment Hot Dipped Galvanized,painting,Galvanized Product Name Steel Grating,Stainless Steel Grate 304,Hot Sale Stainless Steel /galvanized Steel Bar Grating/safety Grating,25 X 5 Hot-dip Galvanized Steel Grating Prices,Floor Drain Grate/Floor Drain/Wedge Wire Strip Drain Grate
Type Plain Bar Grating,Serrated Bar Grating,I Bar Grating Color Silver,black,available To Any Colors,on Your Request,ect Or Custom
Length 300-3000mm,800mm,6000mm,Customers' Demand Name Steel Sheet Grating,Steel Floor Decking,composite Drainage Cover Road Drain Grating Covers / Manhole Cover,steel Bar Grating
Standard ISO9001 Thickness 5mm,0.3-1.0mm
Cross Bar Pitch 120,60,76 Size Customized,300*450*35
Width 600-1250mm,70-600mm Feature Easily Assembled,Durable,Corrode-resistant,less Weight
Keywords Heavy Duty Stainless Steel Metal Floor Bar Grating,galvanized Steel Grating Bearing Bar Pitch 25,30mm,on Request.
Packing Pallet,Wooden Box Grating Size 3'x20',1000x1000mm,1000x6000mm And All
Process Pressure-locked,Swage Locked,Casting. Deburring .Drilling .threading
High Light

channel floor drain grates stainless steel

,

316 floor drain grates stainless steel

,

5mm thick stainless steel grating

Leave a Message
Product Description

Stainless Steel Grating 316 Heavy Duty Drainage Channel Grating







Stainless steel grating is our best quality grating product,also know as press weld SS grating.Due to the extremely strong,durable and anti rust for all the bearing application,which become the most popular corrosion resistant grating products all over the world. The stability and corrosion resistance make the stainless steel gratings have a much higher performance in the special applications.

  • Materials: Stainless steel 304,304L,316,316L
  • Surface treatment: Original,Polishing

Specification:

  • Cross bars : Dia. 5mm,6mm,8mm (Round bar)
  • Cross bar spacing : 40,50,60,65,76,100,101.6,120,130mm, etc.
  • Bearing bars : 20*3,25*3,25*4,25*5,30*3,30*4,30*5,32*3,32*5,40*5,50*4… 75*8mm, etc.
  • Bearing bar spacing : 20,25,30,32.5,34.3,40,50,60,62,65mm



Applications

Stainless steel grating is widely used in flooring, catwalk, mezzanine,decking,trench cover, drainage pit cover, maintenance platform, wash rack, ventilation screen, window and machinery safe guards, factory, workshop, motor rooms, trolley channel, special loading area and special equipment area.

Parameters

Data

Bear Bar Type

Flat Bar, I-Bar, Serrated Bar, etc..

Bearing Bar Size

20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc..

Bearing Bar Spacing

20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier.

Cross Bar Type

Twisted Steel Rod, Flat Bar

Cross Bar Size

3mm, 4mm, 5mm ,6mm or thicker

Cross Bar Spacing

50mm or 100mm

Bearing Bar Length

Customerized from 1000mm to 6000mm or more

Cross Bar Length

Under 1200mm

Material Grade

Mild Steel(Q235B), Stainless Steel 304 or 316, etc.

Treatment Available

Hot dipped Galvanized, Anodized, Polished and Powder Coated

Standards

Steel Grating Standard

Steel Material Standard

HDG Coating Standard

China

YB/T4001-1998

GB700-88

GB/T13912-92

USA

ANSI/NAAMM(MBG531-88)

ASTM-A36

ASTM-A123

UK

BS4592-1987

BS4360(43A)

BS729

Australia

ASl 657-1992

AS3679

ASl650



Product display:

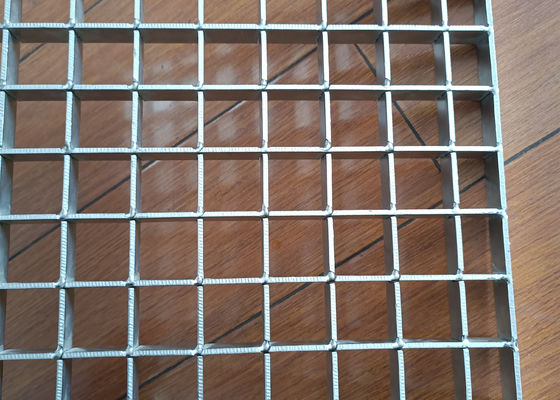

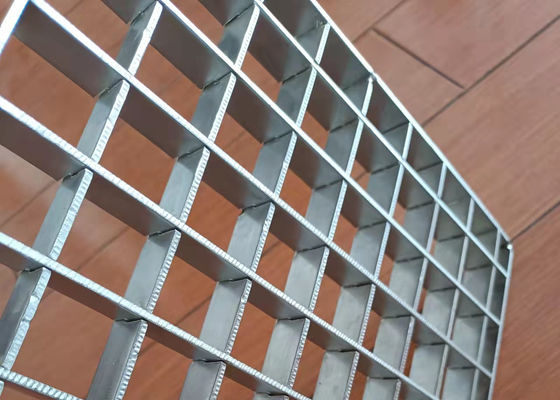

Flooring Drainage Cover Grating With 5mm Thickness Stainless Steel 316 Heavy Duty Drainage Channel 0Flooring Drainage Cover Grating With 5mm Thickness Stainless Steel 316 Heavy Duty Drainage Channel 1



Application:

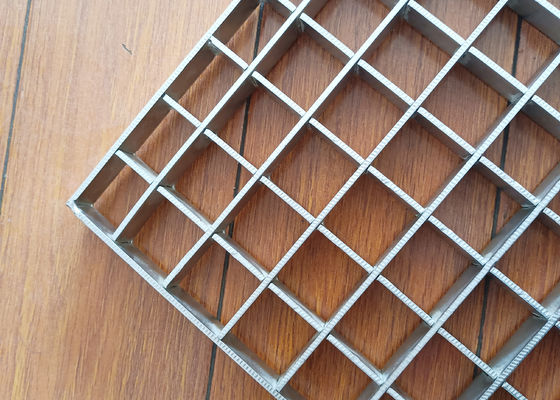

Flooring Drainage Cover Grating With 5mm Thickness Stainless Steel 316 Heavy Duty Drainage Channel 2





Product Certification

Flooring Drainage Cover Grating With 5mm Thickness Stainless Steel 316 Heavy Duty Drainage Channel 3





FAQ

1. How can I get a catalogue?

Please call us or send us email. We will reply within 24 hours.



2. Is customized product available ?

Besides common size, we accept customized fabrication. Just let us know your requirements.



3. How long after I place an order can I expect delivery?

This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
