Press Locked Driveway Grating Ss For Covering Drainage

Place of Origin CHINA
Brand Name ZT
Certification ISO
Model Number G325
Minimum Order Quantity 100sq.m
Price U.S 22.5-20.2 sq.m
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8work days
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 500sq.m per days
Product Details
Application Floor,Walkway,Industrial Platform,steel Structure,drainage Material Steel,Q235,304 316 Stainless Steel
Surface Treatment Hot Dipped Galvanized,painting,Galvanized Product Name Steel Grating,Stainless Steel Grate 304,Hot Sale Stainless Steel /galvanized Steel Bar Grating/safety Grating,25 X 5 Hot-dip Galvanized Steel Grating Prices,Floor Drain Grate/Floor Drain/Wedge Wire Strip Drain Grate
Type Plain Bar Grating,Serrated Bar Grating,I Bar Grating Color Silver,black,available To Any Colors,on Your Request,ect Or Custom
Length 300-3000mm,800mm,6000mm,Customers' Demand Name Steel Sheet Grating,Steel Floor Decking,composite Drainage Cover Road Drain Grating Covers / Manhole Cover,steel Bar Grating
Standard ISO9001 Thickness 5mm,0.3-1.0mm
Cross Bar Pitch 120,60,76 Size Customized,300*450*35
Width 600-1250mm,70-600mm Feature Easily Assembled,Durable,Corrode-resistant,less Weight
Keywords Heavy Duty Stainless Steel Metal Floor Bar Grating,galvanized Steel Grating Bearing Bar Pitch 25,30mm,on Request.
Packing Pallet,Wooden Box Grating Size 3'x20',1000x1000mm,1000x6000mm And All
Process Pressure-locked,Swage Locked,Casting. Deburring .Drilling .threading
High Light

press locked grating ss

,

driveway grating ss

,

covering drainage stainless steel grating

Leave a Message
Product Description

Stainless Press Locked Steel Driveway Grates Grating For Covering Drainage







Stainless Steel grating is usually custom manufactured to project specifications. The standard panel sizes are generally the same as steel grating stock panels, depending on profile chosen.

Our Gratings are widely used in Trenches, Platform Walkways in Oil & Gas Sector, Petrochemical Industries, Civil Constructions, Food Industries, Chemical Industries, Industrial kitchens, etc.,

  • Materials: Stainless steel 304,304L,316,316L
  • Surface treatment: Original,Polishing

Specification:

  • Cross bars : Dia. 5mm,6mm,8mm (Round bar)
  • Cross bar spacing : 40,50,60,65,76,100,101.6,120,130mm, etc.
  • Bearing bars : 20*3,25*3,25*4,25*5,30*3,30*4,30*5,32*3,32*5,40*5,50*4… 75*8mm, etc.
  • Bearing bar spacing : 20,25,30,32.5,34.3,40,50,60,62,65mm



Applications

Stainless steel grating is widely used in flooring, catwalk, mezzanine,decking,trench cover, drainage pit cover, maintenance platform, wash rack, ventilation screen, window and machinery safe guards, factory, workshop, motor rooms, trolley channel, special loading area and special equipment area.Platform Walkways in Oil and Gas Sector, Petrochemical Industries, Civil Construction, Food Industries etc.,

Parameters

Data

Bear Bar Type

Flat Bar, I-Bar, Serrated Bar, etc..

Bearing Bar Size

20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc..

Bearing Bar Spacing

20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier.

Cross Bar Type

Twisted Steel Rod, Flat Bar

Cross Bar Size

3mm, 4mm, 5mm ,6mm or thicker

Cross Bar Spacing

50mm or 100mm

Bearing Bar Length

Customerized from 1000mm to 6000mm or more

Cross Bar Length

Under 1200mm

Material Grade

Mild Steel(Q235B), Stainless Steel 304 or 316, etc.

Treatment Available

Hot dipped Galvanized, Anodized, Polished and Powder Coated

Standards

Steel Grating Standard

Steel Material Standard

HDG Coating Standard

China

YB/T4001-1998

GB700-88

GB/T13912-92

USA

ANSI/NAAMM(MBG531-88)

ASTM-A36

ASTM-A123

UK

BS4592-1987

BS4360(43A)

BS729

Australia

ASl 657-1992

AS3679

ASl650

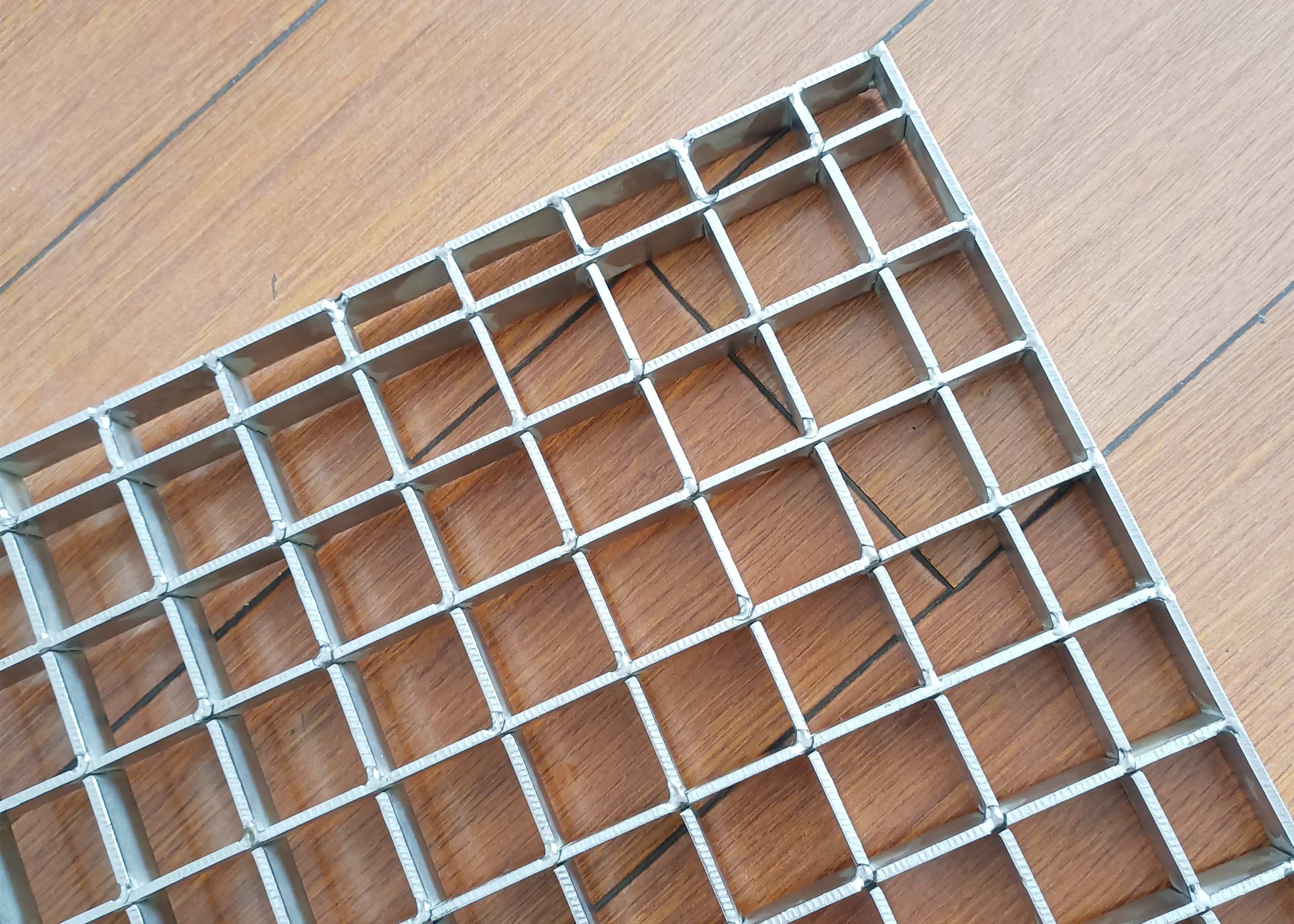

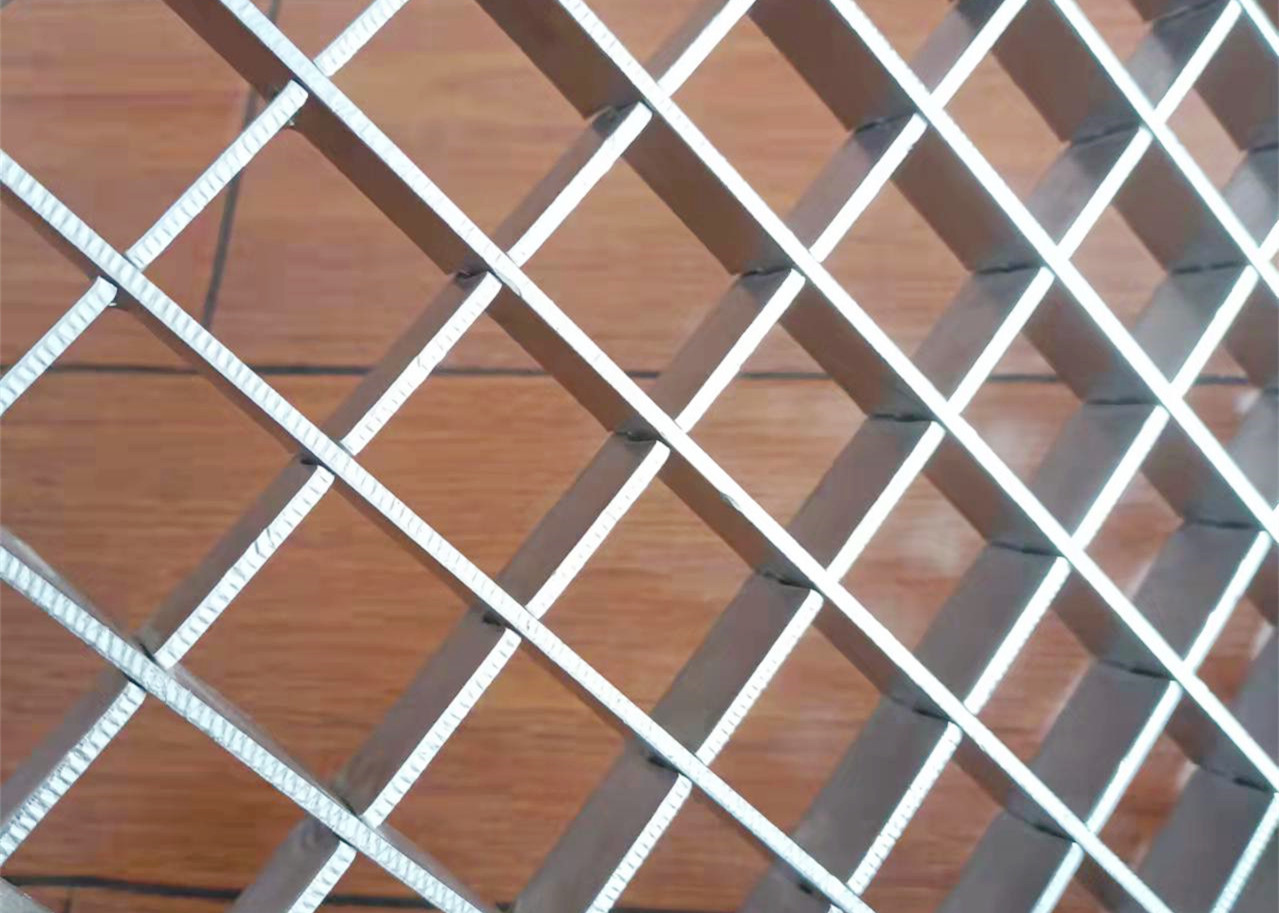

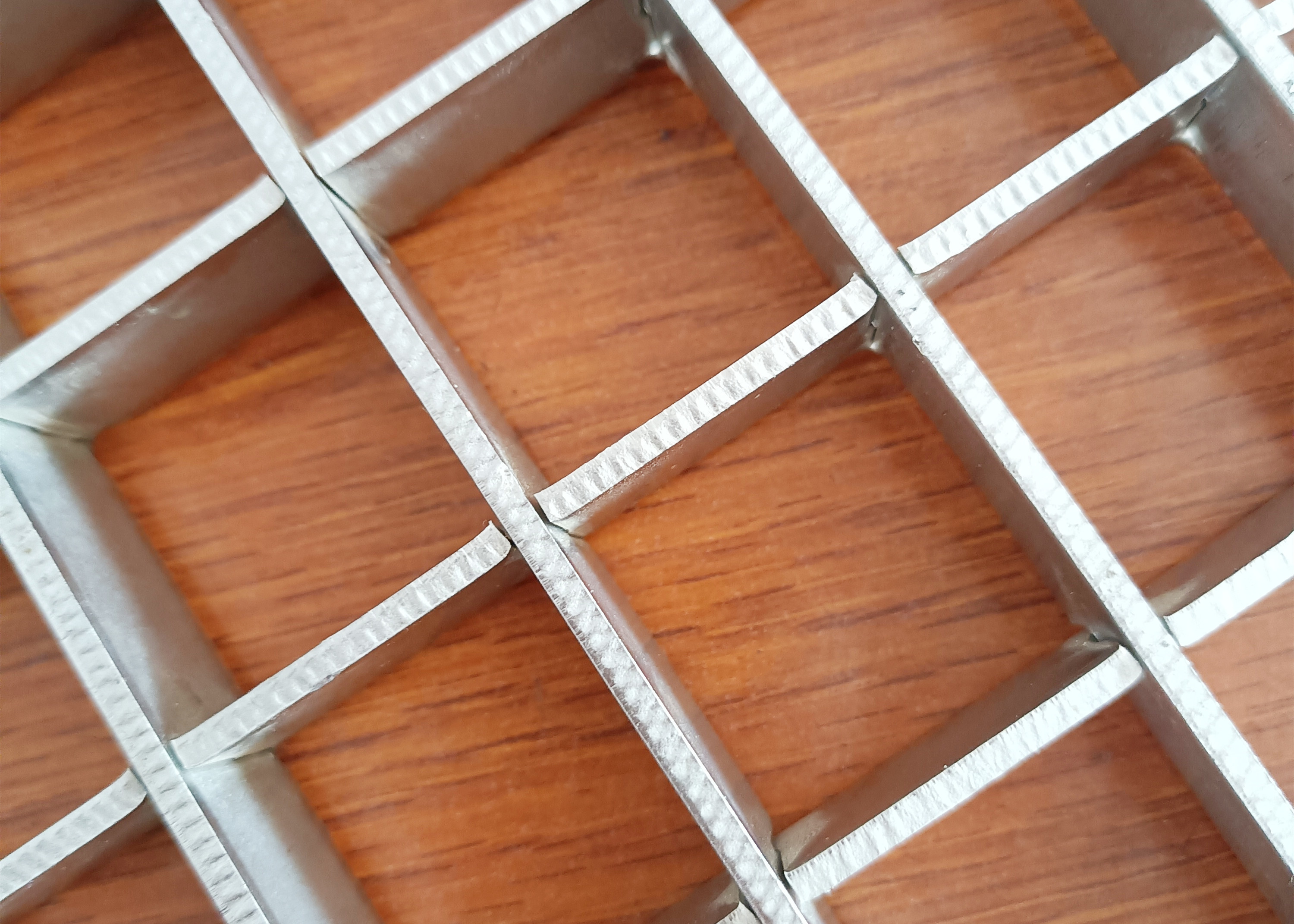

Product display:

Press Locked Driveway Grating Ss For Covering Drainage 0Press Locked Driveway Grating Ss For Covering Drainage 1

Application:



Press Locked Driveway Grating Ss For Covering Drainage 2



Product certification

Press Locked Driveway Grating Ss For Covering Drainage 3



FAQ

1. How can I get a catalogue?

Please call us or send us email. We will reply within 24 hours.



2. Is customized product available ?

Besides common size, we accept customized fabrication. Just let us know your requirements.



3. How long after I place an order can I expect delivery?

This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
