Swage Locked T6063 Aluminum Bar Grating Garden Safety Walkway For Construction

Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month
Product Details
Material 6063 T6 Surface Finish Anodized
Model Number EM-025 Cross Bar Pitch 30, 40, 60, 100mm
High Light

garden walkway aluminum bar grating

,

swage locked aluminum bar grating

,

6063 aluminum swage locked grating

Leave a Message
Product Description

T6063 Material Garden Safety Walkway Aluminum Walkway Grating For Construction

Product Description

Swaged Grating



Swage-locked aluminum grating is manufactured with either an "I" or rectangular bearing bar. These

bearing bars are permanently locked to the cross rods with a swaging process which reshapes the

cross rods. Because of flange width, I-bars reduce the open spaces of the grating, yet I-bar

swage-locked is lighter weight and maintains load ratings. Swage-locked I-bar grating is the most

widely used and provides the strength equal to a rectangular bar of the same depth, but at far less

weight. Rectangular swage-locked is available with the cross rods flush with the top of the bearing bars,

or with the cross rods near the middle of the bearing bar. These options are available if a specific look is desired.

Rectangular v I-Bar Grating



Both rectangular and I-bar aluminum grating offer comparable strength.

Rectangular bar is offered in various crossbar configurations and can be either plain or serrated.

I-bar is only available in a swaged connection and is always striated. This bar is lighter weight than

rectangular bar and is a great option for any project that has weight limit restrictions.





Product Type&Specification

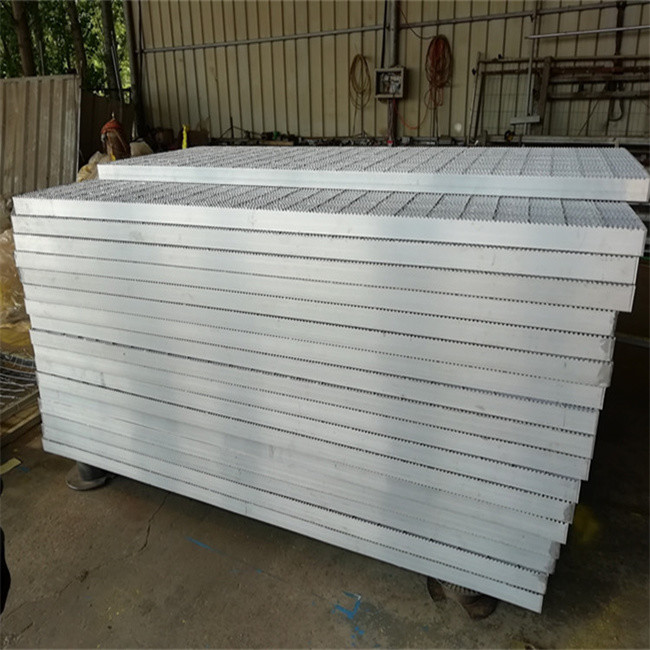

Swage Locked T6063 Aluminum Bar Grating Garden Safety Walkway For Construction 0



Aluminum Press Lock Bar Grating:



Bar grating made up of interlocking perpendicular bars
Bearing bar sizes range from 1" x 1/8" through 2-1/2" x 3/16" in 1/4" increments
Bearing bar spacing of 1-3/16", 15/16", 11/16" and 7/16" c.c. with cross bar spacing of 4" or 2"
Hydraulic pressure is used to bond the slotted bars together, locking the deep cross bar into the notched bearing bar
Smooth, clean look due to a flush top rectangular cross bar
Offers strong lateral stability
Used in architectural design because of clean look and tight spacing
1/4" and 1/2" openings conform to the “Americans with Disabilities Act” (July, 1991)
Slip resistant surfaces for floor grating available upon request

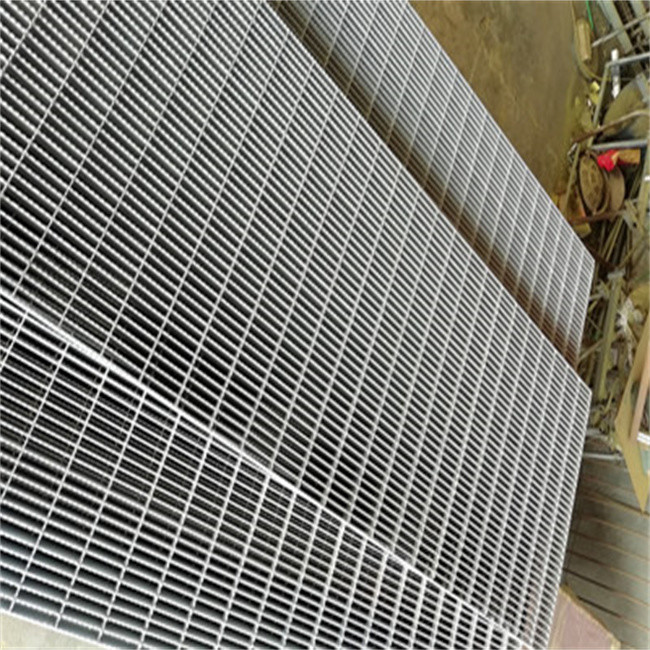

Swage Locked T6063 Aluminum Bar Grating Garden Safety Walkway For Construction 0





Aluminum Flush Top Bar Grating:


Pressure locked by permanently attaching cross bars to bearing bars through a pressure applied swaging process
Bearing bar sizes range from 1" x 1/8" through 2-1/2" x 3/16" in 1/4" increments
Bearing bar spacing of 1-3/16", 15/16", 11/16" and 7/16" c.c. with cross bar spacing of 4" or 2"
Press locked bar grating serrated surface can be provided on aluminum grating when skid resistance is needed




Product Specifications



Aluminum grating Part Number Bearing bar size
I-Bar Swage Locked 19-SI-4
15-SI-4
11-SI-4
(1-3/16")
(15/16")
(11/16")
I-Bar Swage Locked Close-Mesh 8-SI-4 (1/2")
Rectangular Bar Swage-Locked & Press Locked 19-SR-4,19-AP-4
15-SR-4, 15-AP-4
(1-3/16")
(15/16")
Press-Locked Close Mesh 3-AP-4 (13/16")
Rectangular Bar Swage-Locked Close Mesh &Press-Locked Close Mesh 11-SR-4, 11-AP-4
10-AP-4
8-SR-4, 8-AP-4
7-AP-4
(11/16")
(5/8")
(1/2")
(7/16")




Product Differences



STANDARD ALUMINUM GRATING


Aluminum - Bearing Bars - 1-3/16” centers. Type 19P - Standard Bar. Type 19I - I Bar.



Swage Locked T6063 Aluminum Bar Grating Garden Safety Walkway For Construction 2





CLOSE MESH ALUMINUM GRATING



Aluminum - Bearing bars at 15/16". Type 15P - Standard Bar. Type 15I - I Bar.





Swage Locked T6063 Aluminum Bar Grating Garden Safety Walkway For Construction 3



Aluminum - ADA Compatible with 3/16” bars. Bearing bars at 11/16" centers. Type 11P - Standard Bar. Type 11I - I Bar.



Swage Locked T6063 Aluminum Bar Grating Garden Safety Walkway For Construction 4


Application





1 Storage facilities
2 processing plants
3 Food preparation
4 bottling facilities
5 Breweries



Advantage



Our aluminum bar grating does not produce sparks, which means it can also be safely used in munitions plants and other potentially volatile manufacturing operations where fire and explosion pose a constant threat.
