T6063 Aluminum Grate Walkway Anodizing Treatment Anti Slip Commercial
| Place of Origin | HeBei,China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001,CE |
| Minimum Order Quantity | 100piece/pieces |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 5-8days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 25000piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | EM-025 | Material | 6063 T6 |
|---|---|---|---|
| Surface Finish | Anodized | Cross Bar Pitch | 30, 40, 60, 100mm |
| High Light | t6063 aluminum grate walkway,anodizing aluminum grate walkway,antislip commercial aluminum bar grating |
||
Product Description
Metal Grating T6063 Material Anodizing Treatment Aluminum Bar Walkways Grating
Introduction

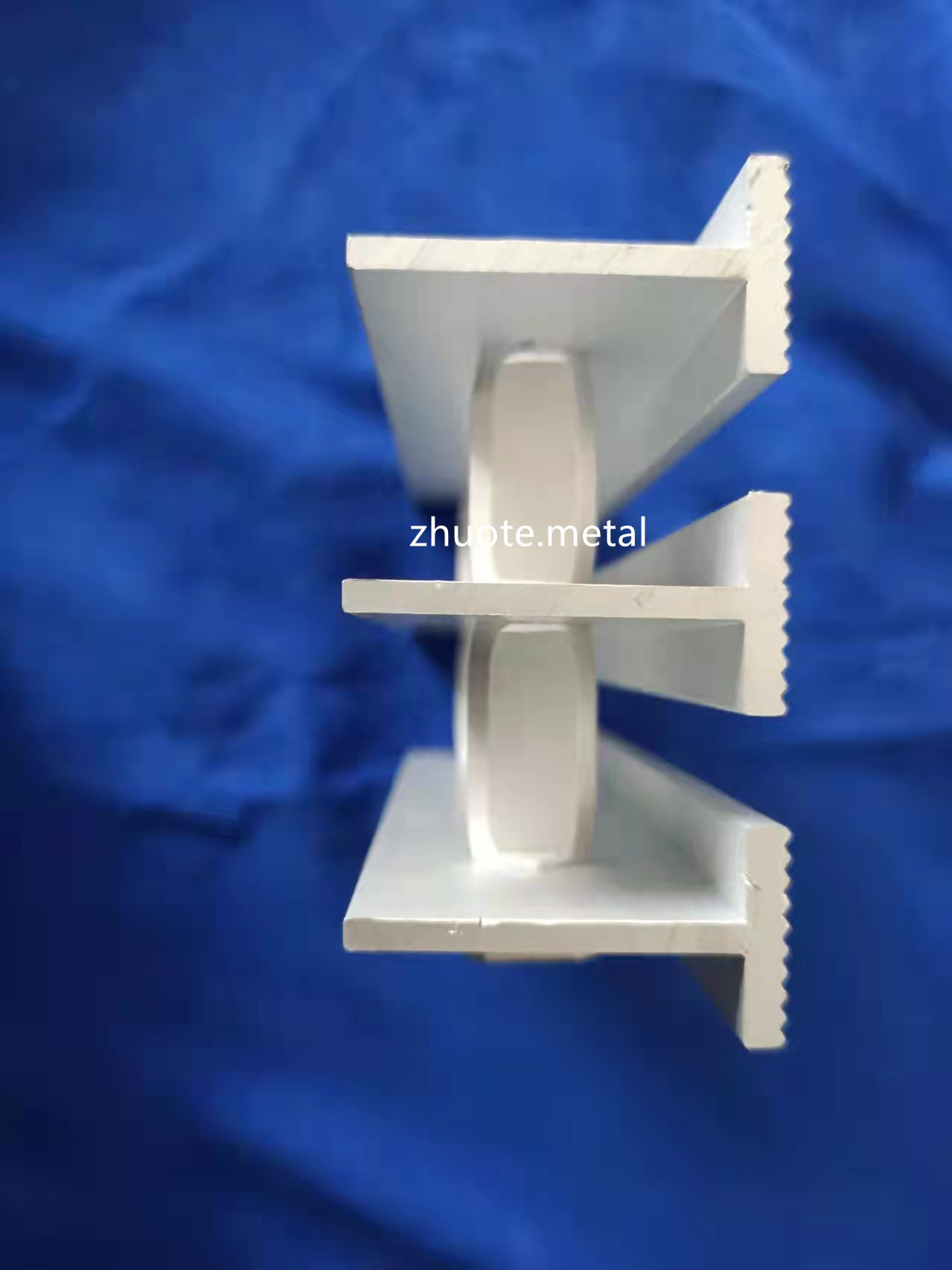

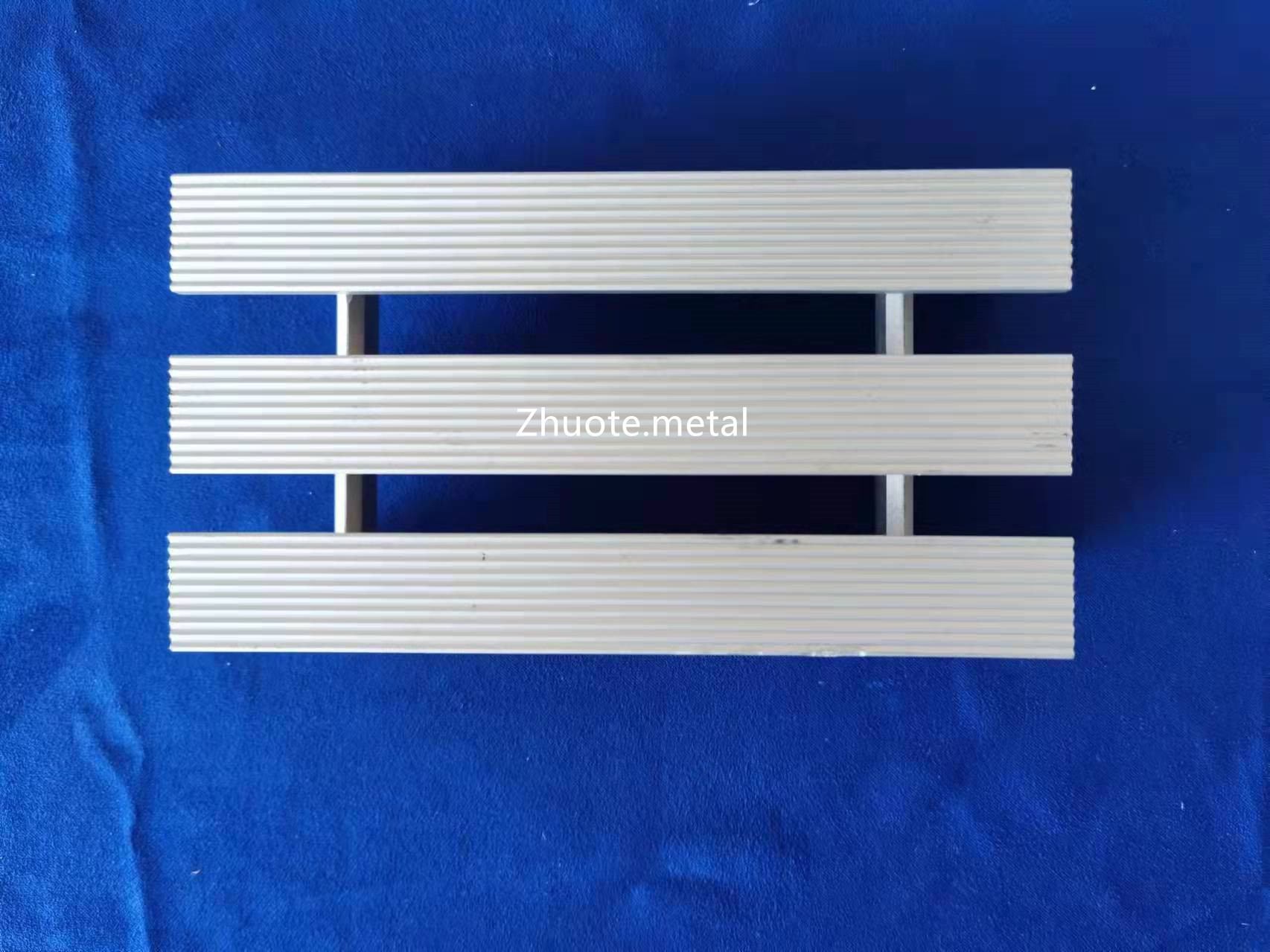

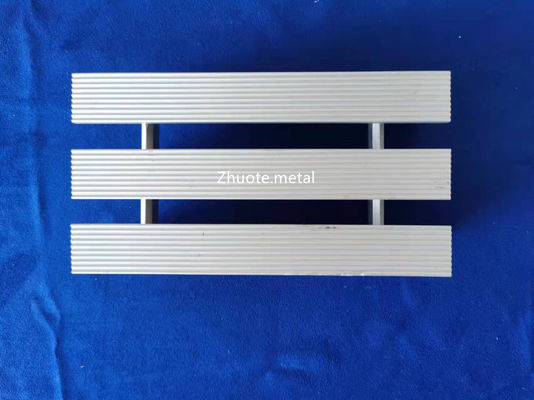

The T-bar grating manufactured with extruded T-shaped bearing bars has a larger supporting area for extra underfoot comfort and a striated surface for added slip resistance.
Product Specifications
| Aluminum grating | Part Number | Bearing bar size |
| I-Bar Swage Locked | 19-SI-4 15-SI-4 11-SI-4 |
(1-3/16") (15/16") (11/16") |
| I-Bar Swage Locked Close-Mesh | 8-SI-4 | (1/2") |
| Rectangular Bar Swage-Locked & Press Locked | 19-SR-4,19-AP-4 15-SR-4, 15-AP-4 |
(1-3/16") (15/16") |
| Press-Locked Close Mesh | 3-AP-4 | (13/16") |
| Rectangular Bar Swage-Locked Close Mesh &Press-Locked Close Mesh | 11-SR-4, 11-AP-4 10-AP-4 8-SR-4, 8-AP-4 7-AP-4 |
(11/16") (5/8") (1/2") (7/16") |
Type Introduction
Type “SGF” Swaged Flush-Top Aluminum Grating
Manufactured with a unique, extruded cross bar that is flush with the top surface of the bearing bars, type SGF aluminum grating provides an enhanced walking surface for areas subject to continuous pedestrian traffic.
Available in rectangular bar with plain or serrated surfaces, type SGF aluminum grating is also available in ADA conforming spacings for applications located in the public way.
Type “ADT” Aluminum Dovetail Pressure Locked Grating
Type ADT aluminum gratings have deep rectangular cross bars and are manufactured by inserting pre-punched bearing bars and cross bars into an “egg-crate” configuration and deforming the cross bars under intense hydraulic pressure.
The deep cross bars on type ADT gratings make them popular for architectural applications such as sun shades and infill panels with the deeper cross bar serving as a distinct visual accent.
Application
| 1 | Storage facilities |
| 2 | processing plants |
| 3 | Food preparation |
| 4 | bottling facilities |
| 5 | Breweries |
Feature
Strong yet lightweight
1. Aluminium Grating is available in a range of crossbar and load bar combinations.
2. Aluminium Grating allows the building or project designer to incorporate a functional element, which also has an aesthetic appeal.
3. Often used in environments where moisture and therefore rust is a potential issue.
4. Alternatively Aluminium Grating can be used in architectural applications as a false ceiling or as a facade or landscape feature.
5. Aluminium Grating allows the building or project designer to incorporate a functional element, which also has an aesthetic appeal.
Slip Resistance
Aluminum Grating is recommended for corrosive applications where lightweight is important, and/or quality of appearance is paramount.
Manufactured The slip resistance of the flooring and walkway profile is an essential consideration in any project. Standard aluminum grating comprises plain square edge flat bars. In order to increase slip resistance, there are a number of options available for consideration, especially for sloping walkways.
The use of 10x10mm square bar cleats is required for additional security underfoot on walkways with slope >10 percent.
