catwalk steel grate bar grating steel grating walkway platform

Place of Origin CN
Brand Name ZT Brand
Certification ISO9001
Model Number 30x5mm
Minimum Order Quantity 5TONS
Price 1050$/TON
Delivery Time 15-35DAYS
Payment Terms T/T, L/C
Supply Ability 300TONS/MONTH
Product Details
Material Low Carbon Steel(Q195) Surface Treatment Hot Dipped Galvanized,painted,untreated
Application Platform Walkway Products Product Name Heavy Duty Steel Grating Serrated Flat Bar Trench Drain Cover Prices
Color Sliver Standard ISO9001
Length 5900mm Cross Bar Pitch 30mm
Thickness 2mm
Leave a Message
Product Description

Catwalk Steel Grate Bar Grating Steel Grating Walkway Platform

Desprictions:


Steel grating is made by welding Flat steel and Cross bars with certain distance.



It goes through cutting, opening, edging and other processes.



The products enjoy the features of high strength,



Light structure, high bearing, convenience for loading and other properties.



The hot dipped zinc coating gives the product excellent anti-corrosion property.

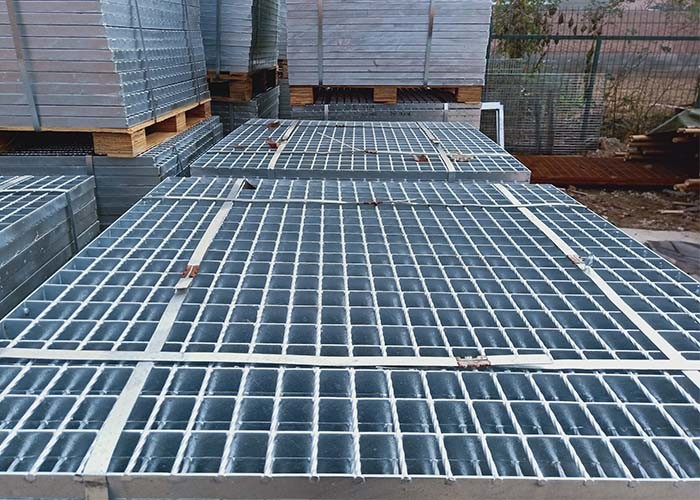

catwalk steel grate bar grating steel grating walkway platform 0



Detail:




NO



TermStandard Options
1


Bearer Bar



25×4.5 mm | 30×4.5 mm, | 40×4.5 mm , 50×4.5 mm
2


Transverse Bar



6 mm, 8 mm (standard)
3


Bearer Bar Pitch



50 mm | 43 mm
4


Transverse Bar Pitch



50 mm | 40 mm
5


Edge Finish



Serrated | Plain

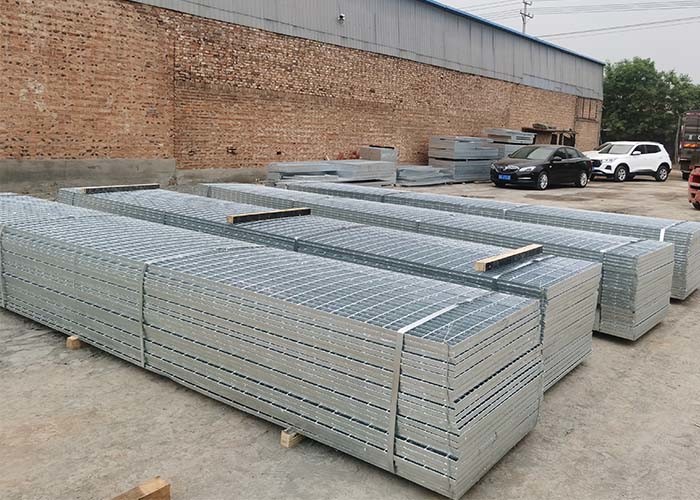

catwalk steel grate bar grating steel grating walkway platform 1

Feature:

1. Save material: the most material-saving way to bear the same load condition, accordingly, the material of supporting structure can be reduced.
2. Reduce investment: save material, save labor, save construction time, free of cleaning and maintenance. Easy construction: fixed by bolt clamp or welding on the pre-installed support, one person can finish.
3. Save time: No need to re-process the product on site, very fast installation.
4. Durable: Hot-dip galvanized anti-corrosion treatment before delivery, strong impact and heavy pressure resistance.

catwalk steel grate bar grating steel grating walkway platform 2

About Us:

We Hebei Zhuote Metal Products founded in 2007 the business was a producer of a variety of grating products, metal pressings and sheet metal work for the construction industry.

With the development we have reach more than 300tons month production capacity. We are best to help our customers get the more Competitiveness materials.
