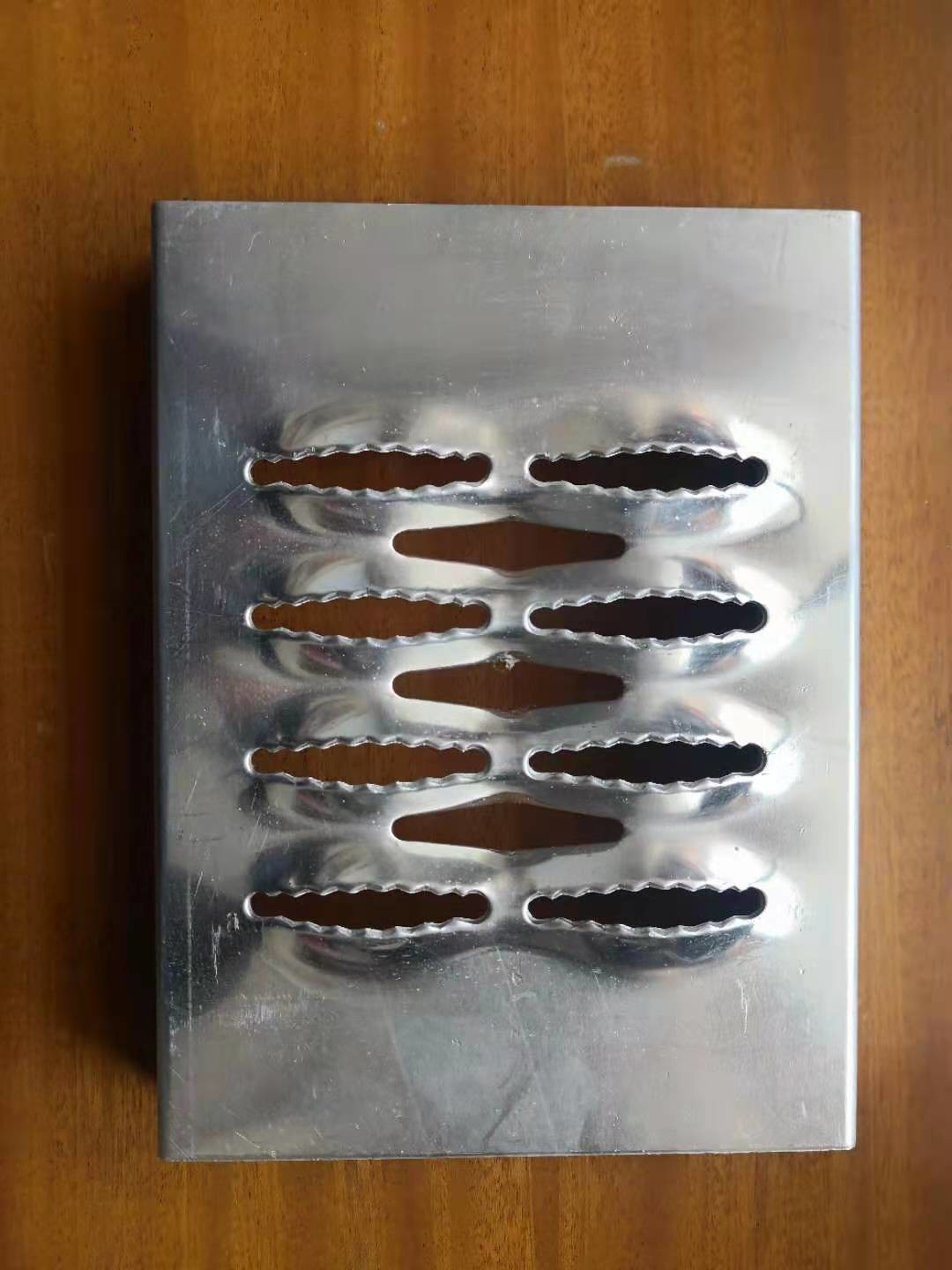

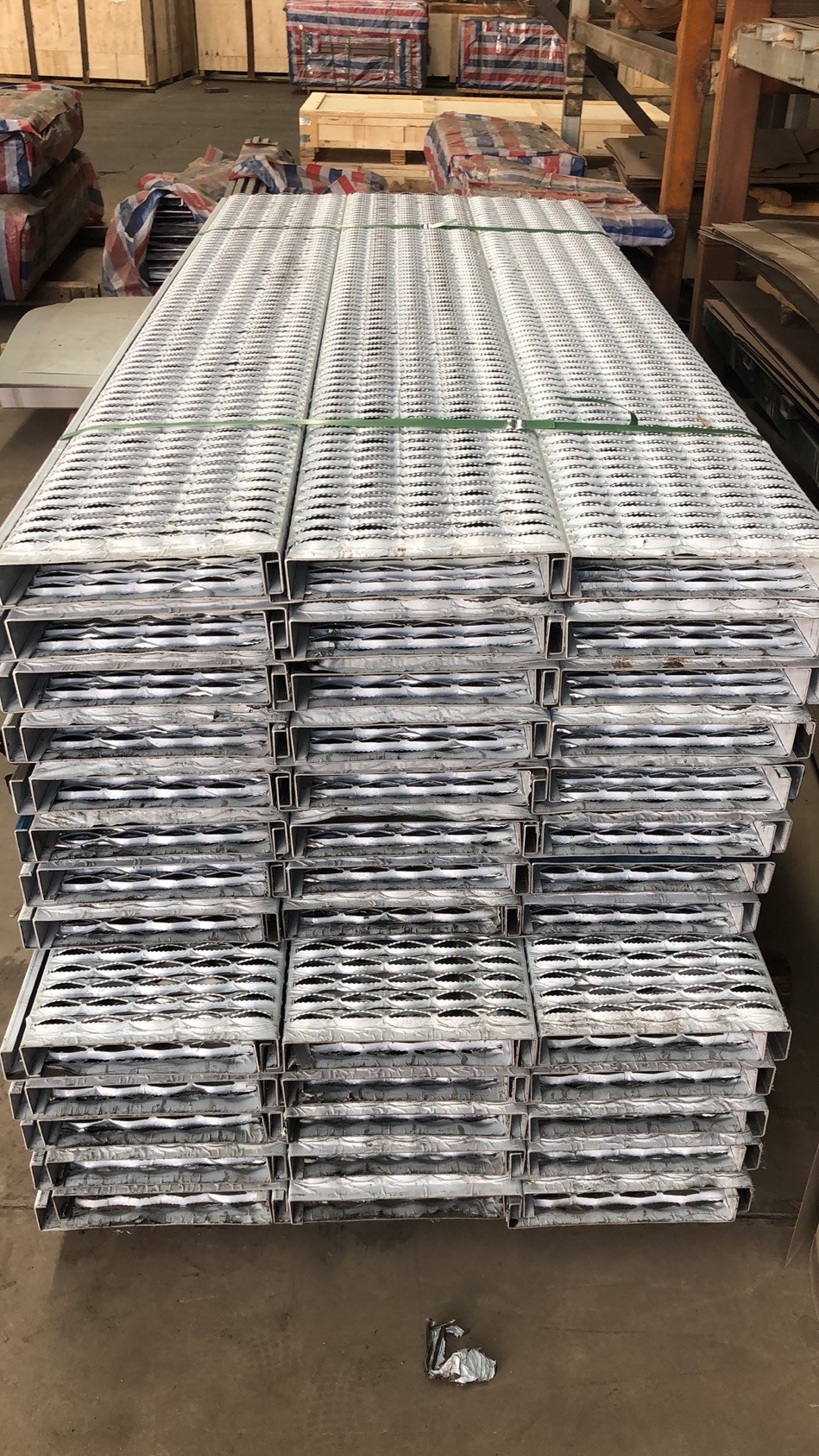

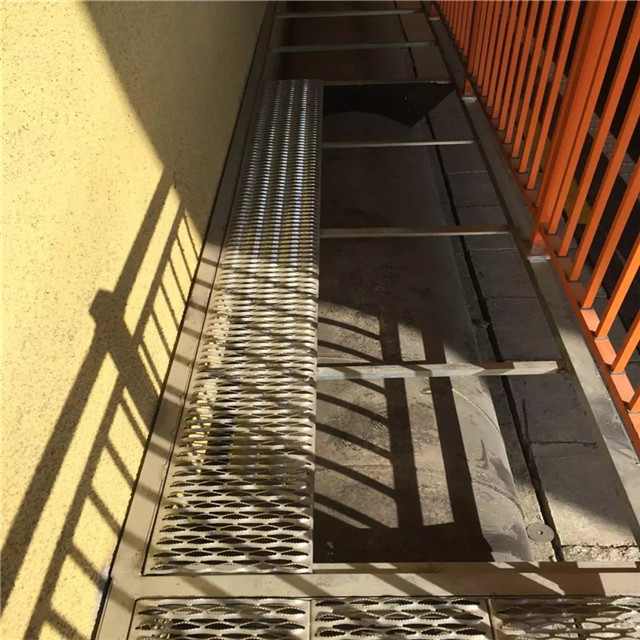

Safety Anti Skid Stainless Grip Strut Diamond Channel Perforated Metal Treads

Place of Origin anping
Brand Name TT
Certification iso
Model Number q235
Minimum Order Quantity 50sqm
Price U.S 22.5-20.2 sq.m
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 15days
Payment Terms T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability 500sq.m per days
Product Details
Texture Stainless Steel Surface Treatment Hot/Cold - DIP/NO
Bearing Product Attribute Application Wally/passageway/plant
Material Steel
High Light

anti skid stainless grip strut

,

perforated diamond stainless grip strut

,

grip strut grating anti skid

Leave a Message
Product Description

safety anti skid diamond channel perforated metal grip strut safety grating tread treads

High strength-to-weight performance is achieved through depth of section and structural design. Bridged struts with integral side channels form a plank that can support loads with minimum transverse and longitudinal deflection. There are no rivets or pressure joints to break or loosen. This sturdy construction provides the advantages of heavy load-carrying capacity with minimal deflection; rugged durability with longerlasting performance.

Light, easy-to-handle planks make installation simpler and quicker. They can be handled by one man. Most sections are rapidly bolted, clamped or welded into place, easily field-cut at virtually any angle, or fabricated to adapt to field conditions. Several attachment devices permit fastening to most existing surfaces; allow fast installation or disassembly

A variety of Standard widths and channel heights combine with numerous Non-Standard shapes and sizes to meet almost any requirement of strength, size, durability, weight, finish, appearance and application. Grip Strut Safety Grating combines safety and durability with ease of fabrication and versatility. One piece construction — no welds or rivets to fail — minimizes need for plant fabrication. Special shapes and forming can be accomplished to suit unusual requirements.

Tested by an independent laboratory for slip resistance according to standards and methods established by Federal Specifications RR-G-1602A, Grip Strut® Safety Grating proved its superiority by exceeding all requirements of this specification. The standards where exacting - five shoe sole materials tested in three directions under five conditions: dry, greasy, muddy, soapy and icy. Grip Strut Safety Grating tested 10% to 180% more slip-resistant than similar materials, depending on shoe materials and surface conditions. In survey after survey, accidents caused by falls are high on the list of disabling and lost-time injuries and death. In fact, statistics from many states rate this type of accident second as the cause for industry’s loss of manhours and lower productivity. As proved in the test described above, Grip Strut Safety Grating substantially reduces this kind of accident. In addition, the hazard of falling objects is minimized by the shape and size (17/8” x 11/16”) of the surface openings. Fewer accidents, with resultant lower insurance costs and reduced workman’s compensation losses, should be the logical reason for specifying Grip Strut Safety Grating for all walking-working surfaces and stair treads

Safety Anti Skid Stainless Grip Strut Diamond Channel Perforated Metal Treads 0Safety Anti Skid Stainless Grip Strut Diamond Channel Perforated Metal Treads 1Safety Anti Skid Stainless Grip Strut Diamond Channel Perforated Metal Treads 2

Safety Anti Skid Stainless Grip Strut Diamond Channel Perforated Metal Treads 3
