Heavy Duty Q235 Grip Strut Grating 8 Diamond Plank Galvanized Safety

Place of Origin anping
Brand Name TT
Certification iso
Model Number q235
Minimum Order Quantity 50sqm
Price U.S 22.5-20.2 sq.m
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 15days
Payment Terms T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability 500sq.m per days
Product Details
Texture Stainless Steel Surface Treatment Hot/Cold - DIP/NO
Bearing Product Attribute Application Wally/passageway/plant
Material Steel Name Heavy Duty Grip Strut Grating 8 Diamond Plank Galvanized Safety
High Light

8 diamond grip strut grating

,

grip strut grating q235

,

heavy duty grip strut safety grating

Leave a Message
Product Description

safety anti skid diamond channel perforated metal grip strut safety grating tread treads

GRATE-LOCK™ grating is an easy-to-install
system of interlocking grating planks, treads,
and accessories that provides safe, sturdy
footing for mezzanine floors, platforms,
walkways and other applications where
non-slip performance is required. Hundreds
of sole-gripping dimples insure a safe surface
in all kinds of weather and environments. The
grating is available textured for safer working
surfaces and non-textured for wheeled traffic
or rack decking
Design Improves Loading Performance
The unique design of GRATE-LOCK grating provides more design options. Increased load performance
(see charts pages 8-15) has been achieved through interlocking planks, stronger rung design and an
expanded selection of leg heights and material gauges. GRATE-LOCK lets you specify lighter gauge steel
for substantial material savings.
More Sizes and Gauges
GRATE-LOCK grating provides one of the broadest line of grating products of any manufacturer.
• Three (3) plank width options
• Four (4) plank height options
• Three (3) gauge options
• Lengths up to 24 feet
Interlocking sections provide the strength you need for extra-wide designs.
Full Line of Accessories
Our line includes kickplates, hold-down clamps, attachment hardware and stair treads for complete
job design.
Fast Bolt-Together Assembly
Helps save time in the field with Grate-Lock bolt-together slotted assemblies. Kickplates and plank
sections are prepunched. For additional ease, planks can be straight, curved, or angle cut with hand
tools.
Specify GRATE-LOCK Grating with Confidence
We have constructed our tables using the most stringent interpretation of the AISI standards. Our safe
allowable loads guard against harmful local distortion as well as failure, while other manufacturers have
prepared allowable load tables guarding against failure only.

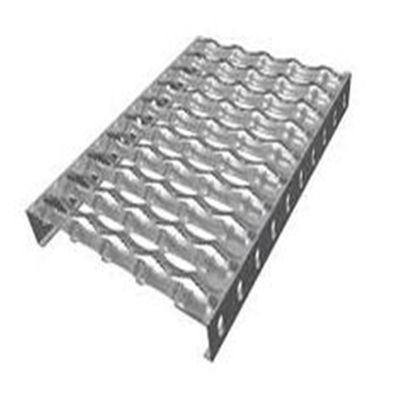

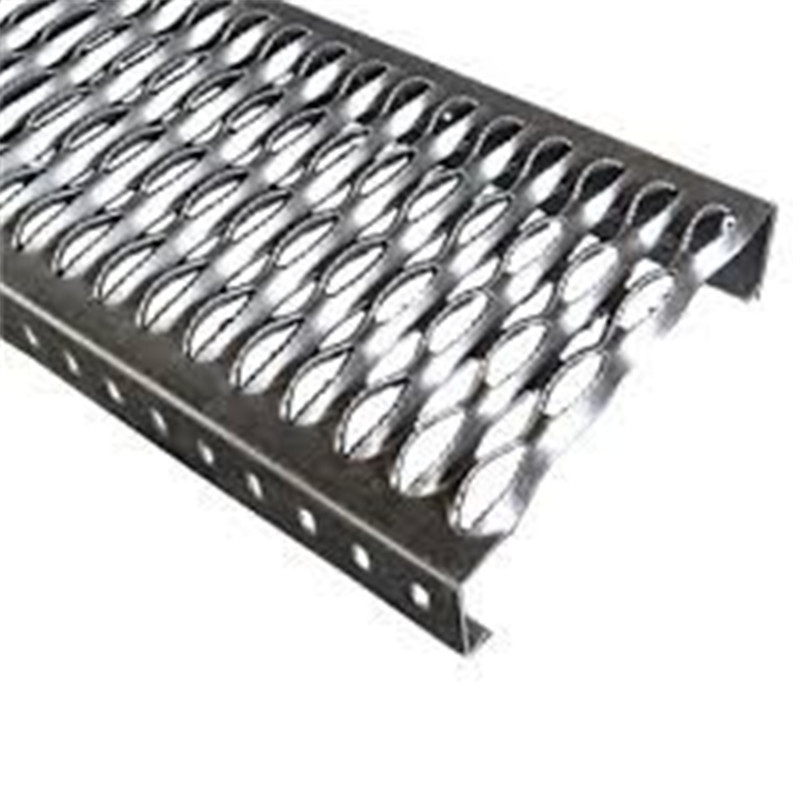

Heavy Duty Q235 Grip Strut Grating 8 Diamond Plank Galvanized Safety 0Heavy Duty Q235 Grip Strut Grating 8 Diamond Plank Galvanized Safety 1

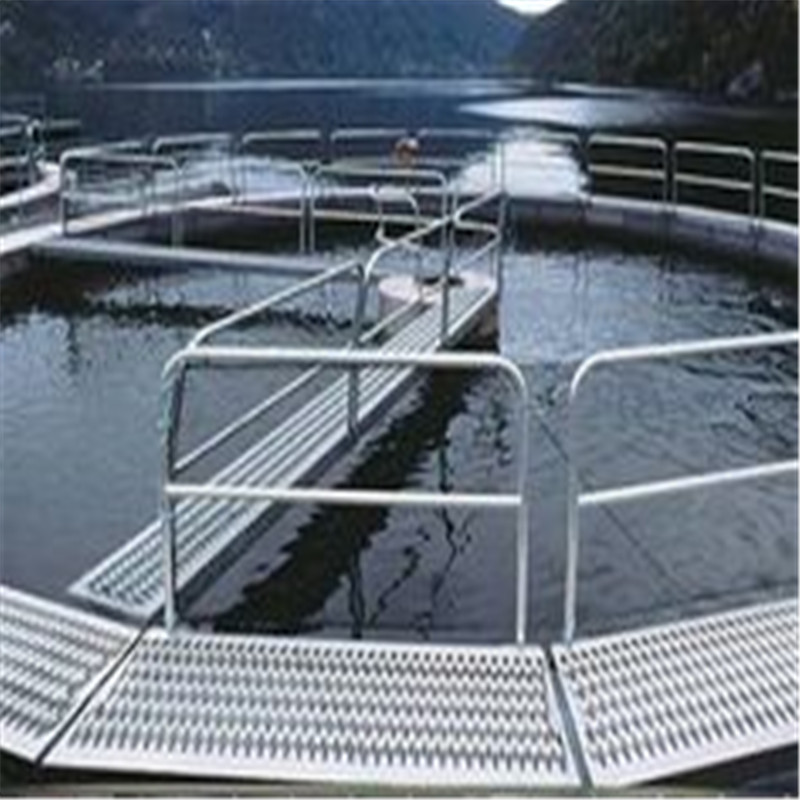

Heavy Duty Q235 Grip Strut Grating 8 Diamond Plank Galvanized Safety 2



FAQ
Q: Quotation time
A:We usually quote with 12 hours after getting inquiry .
Q:How can I get a sample to check your quality ?
A:We are very glad to post you samples before order .
Q:Can you do the design for us ?
A:Yes , We have a professional team with rich experience in design .
Q:What is the lead time for mass production ?
A:It depends on the order quantity and the season you place the order . The lead time is about 7-10days !
