Channel Drainage Trench Cover Stainless Steel Grating 3mm Thick

Place of Origin CHINA
Brand Name ZT
Certification ISO
Model Number G325
Minimum Order Quantity 100sq.m
Price negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8work days
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 500sq.m per days
Product Details
Application Floor,Walkway,Industrial Platform,steel Structure,drainage Material Steel,Q235,304 316 Stainless Steel
Surface Treatment Hot Dipped Galvanized,painting,Galvanized Product Name Steel Grating,Stainless Steel Grate 304,Hot Sale Stainless Steel /galvanized Steel Bar Grating/safety Grating,25 X 5 Hot-dip Galvanized Steel Grating Prices,Floor Drain Grate/Floor Drain/Wedge Wire Strip Drain Grate
Type Plain Bar Grating,Serrated Bar Grating,I Bar Grating Color Silver,black,available To Any Colors,on Your Request,ect Or Custom
Length 300-3000mm,800mm,6000mm,Customers' Demand Name Steel Sheet Grating,Steel Floor Decking,composite Drainage Cover Road Drain Grating Covers / Manhole Cover,steel Bar Grating
Standard ISO9001 Thickness 5mm,0.3-1.0mm
Cross Bar Pitch 120,60,76 Size Customized,300*450*35
Width 600-1250mm,70-600mm Feature Easily Assembled,Durable,Corrode-resistant,less Weight
Keywords Heavy Duty Stainless Steel Metal Floor Bar Grating,galvanized Steel Grating Bearing Bar Pitch 25,30mm,on Request.
Packing Pallet,Wooden Box Grating Size 3'x20',1000x1000mm,1000x6000mm And All
Process Pressure-locked,Swage Locked,Casting. Deburring .Drilling .threading
High Light

channel drainage stainless steel grating

,

stainless steel grating 3mm thick

,

trench cover stainless floor grates

Leave a Message
Product Description



SS314 Channel Steel Grating Stainless Compact Drainage Trench Grates



Heel guard grates and wedge wire grates are the ultimate in safe drainage solutions, with applications for outdoor zones, pools, balconies or showers.

Wedge wire gets its name from the wedge profile of stainless-steel bar and can add functionality and style to your drains. With many applications, heel guard grates and wedge wire grating can protect those using high traffic areas, making it easier for people to navigate in a wheelchair, with a suitcase or high heels.

  • 316 stainless steel construction
  • Infinity HeelGuarge grate provides the strongest and best flowing drainage for any shower
  • Fits against the wall or any location, including barrier free showering applications
  • Height adjustable leveling feet for grate
  • Includes debris strainer and grate removal key



Our heel guard / wedge wire range

Wedge Wire Grate and Trough Width 60mm Depth 20mm

Wedge Wire Grate and Trough Width 85mm Depth 20mm

Wedge Wire Grate and Trough Width 100mm Depth 20mm

Available lengths 800, 850, 900, 950, 1000

Parameters

Data

Bear Bar Type

Flat Bar, I-Bar, Serrated Bar, etc..

Bearing Bar Size

20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc..

Bearing Bar Spacing

20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier.

Cross Bar Type

Twisted Steel Rod, Flat Bar

Cross Bar Size

3mm, 4mm, 5mm ,6mm or thicker

Cross Bar Spacing

50mm or 100mm

Bearing Bar Length

Customerized from 1000mm to 6000mm or more

Cross Bar Length

Under 1200mm

Material Grade

Mild Steel(Q235B), Stainless Steel 304 or 316, etc.

Treatment Available

Hot dipped Galvanized, Anodized, Polished and Powder Coated

Standards

Steel Grating Standard

Steel Material Standard

HDG Coating Standard

China

YB/T4001-1998

GB700-88

GB/T13912-92

USA

ANSI/NAAMM(MBG531-88)

ASTM-A36

ASTM-A123

UK

BS4592-1987

BS4360(43A)

BS729

Australia

ASl 657-1992

AS3679

ASl650


Product display:

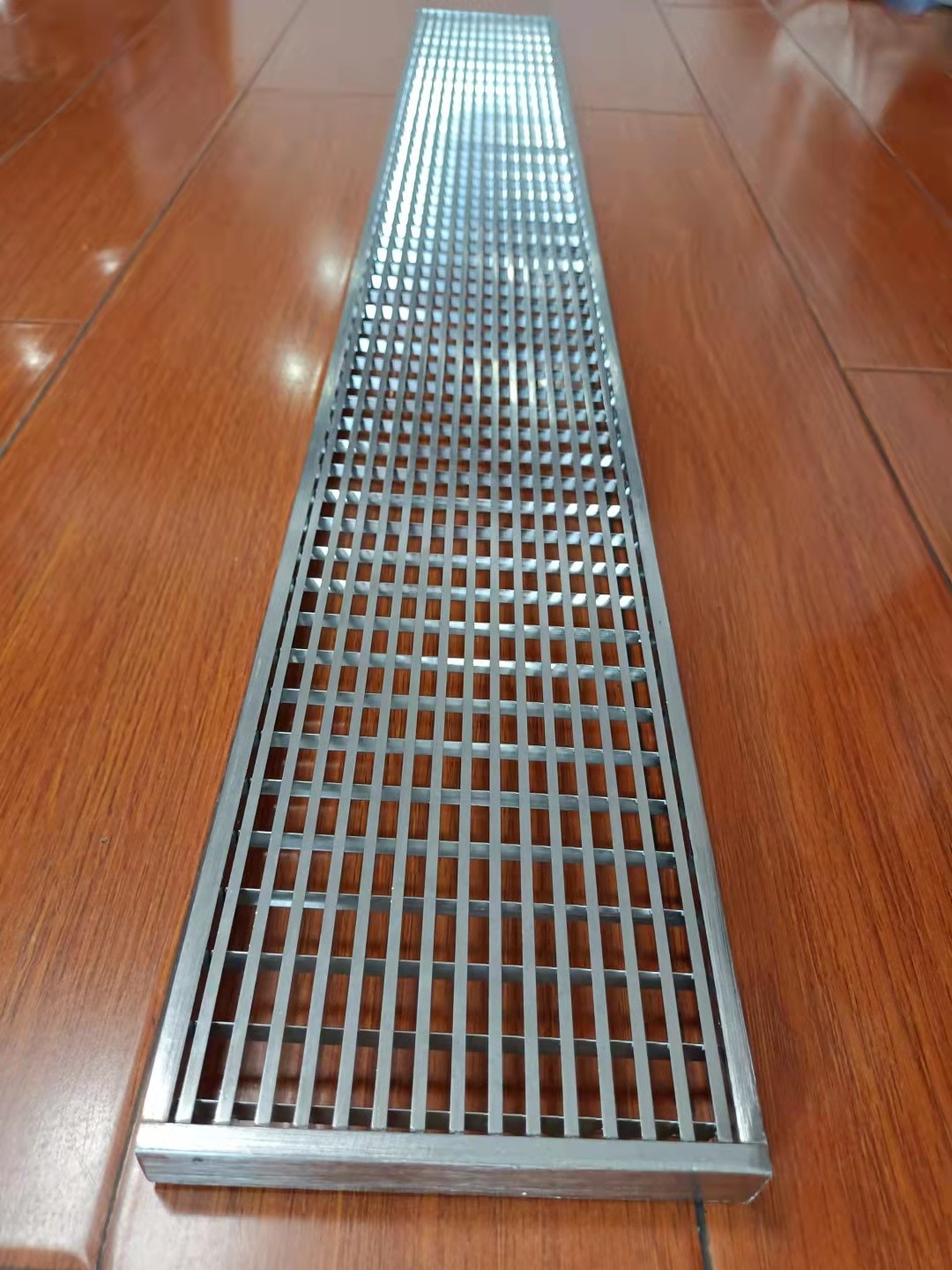

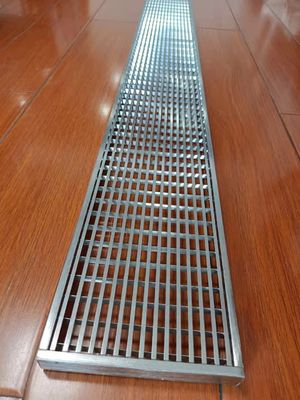

Channel Drainage Trench Cover Stainless Steel Grating 3mm Thick 0Channel Drainage Trench Cover Stainless Steel Grating 3mm Thick 1
Application:

indoor:bathroom, shower room, kitchen, Shopping mall, Super market, warehouse, Hotels, Clubhouses, Gyms, Spas, Restaurants, etc.
outdoor:walkway,square, New Construction, Resorts, Driveways, Balconies,Pools, Storm Drainage,Universities, Schools, Office Buildings, etc

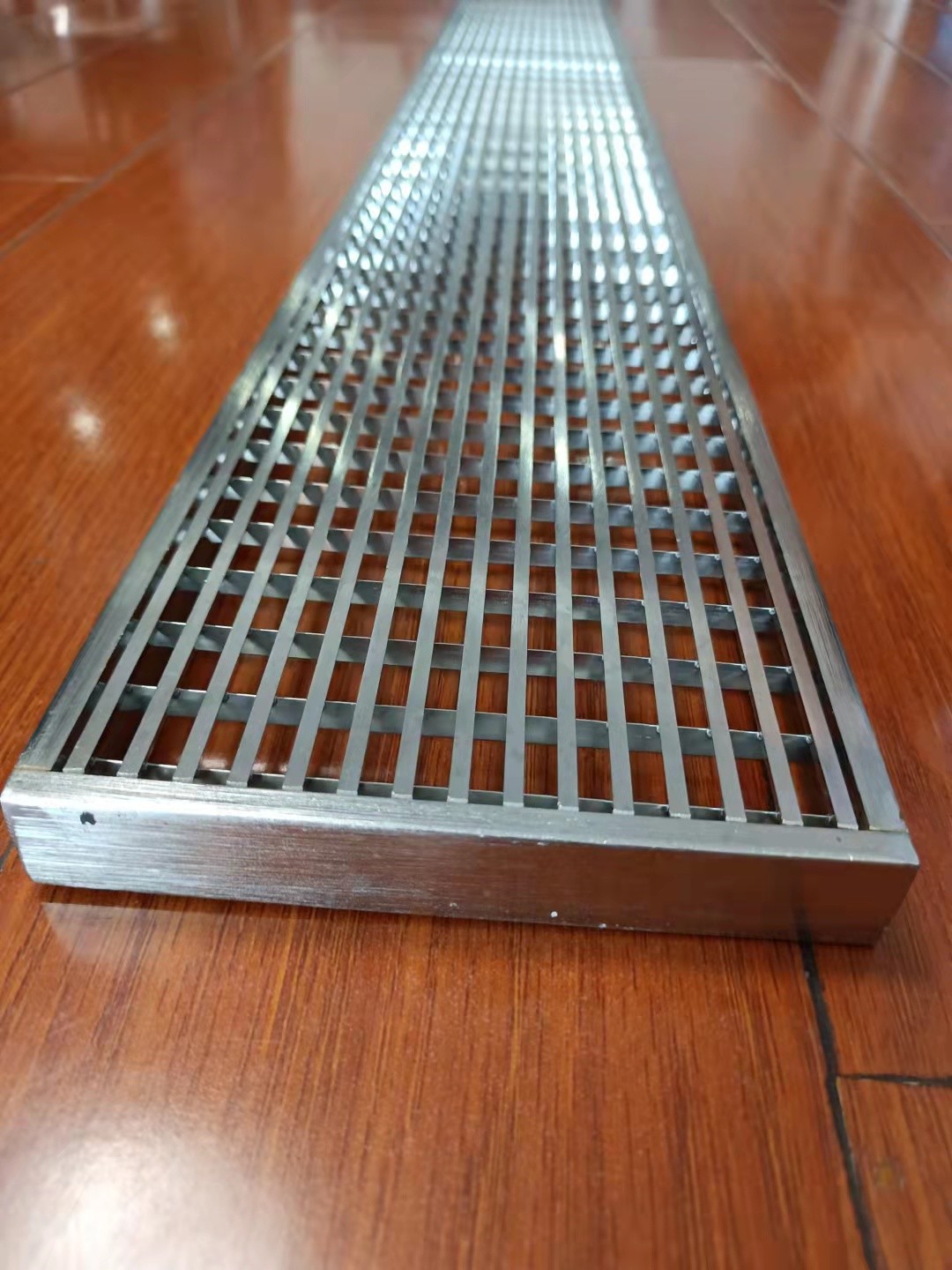

Channel Drainage Trench Cover Stainless Steel Grating 3mm Thick 2

Product certification

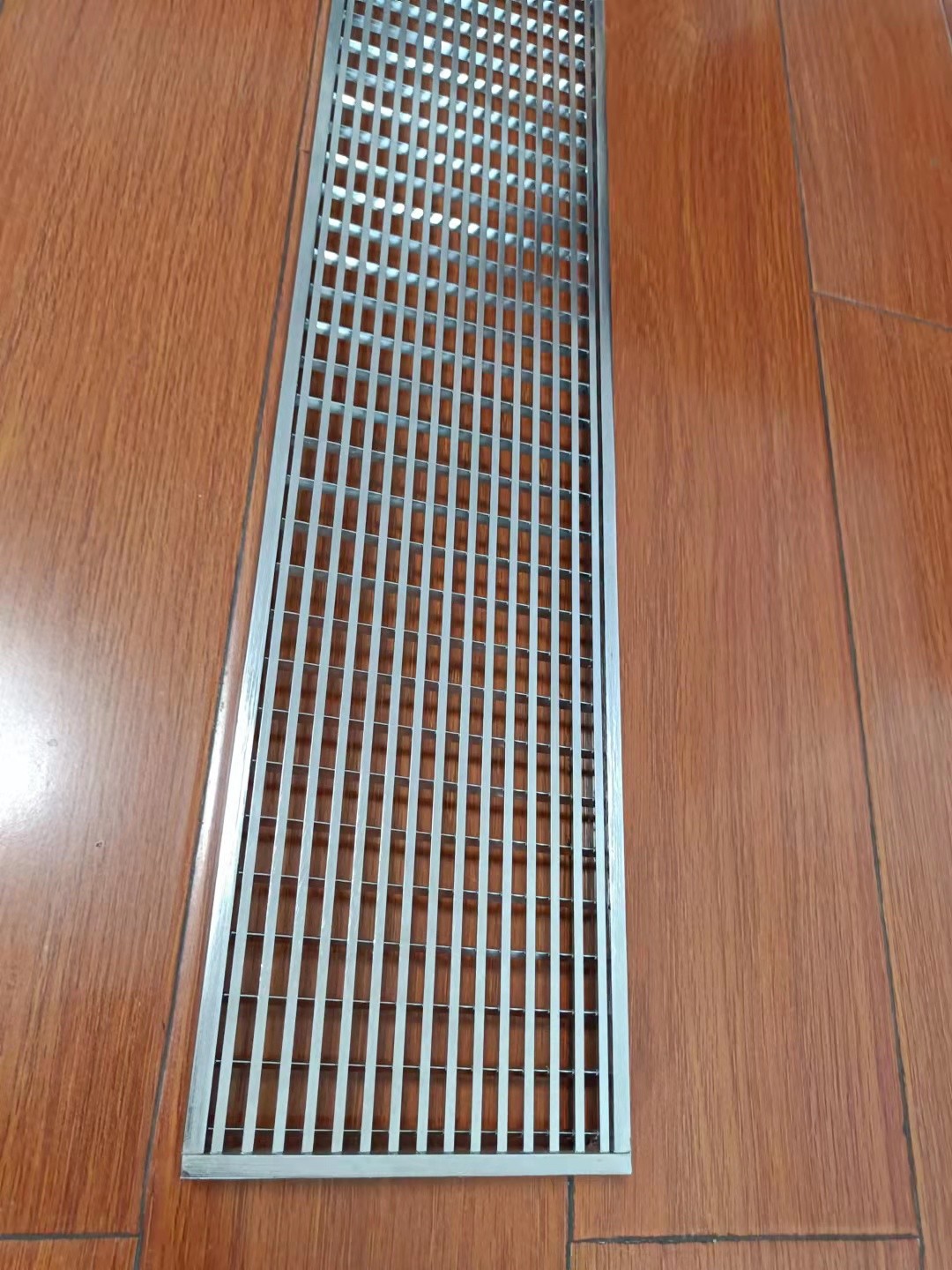

Channel Drainage Trench Cover Stainless Steel Grating 3mm Thick 3

FAQ
1. How can I get a catalogue?
Please call us or send us email. We will reply within 24 hours.

2. Is customized product available ?
Besides common size, we accept customized fabrication. Just let us know your requirements.

3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
