Trench Cover Stainless Steel Grating Compact Channel 20mm High Bar Grate

Place of Origin CHINA
Brand Name ZT
Certification ISO
Model Number G325
Minimum Order Quantity 100sq.m
Price negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8work days
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 500sq.m per days
Product Details
Application Floor,Walkway,Industrial Platform,steel Structure,drainage Material Steel,Q235,304 316 Stainless Steel
Surface Treatment Hot Dipped Galvanized,painting,Galvanized Product Name Steel Grating,Stainless Steel Grate 304,Hot Sale Stainless Steel /galvanized Steel Bar Grating/safety Grating,25 X 5 Hot-dip Galvanized Steel Grating Prices,Floor Drain Grate/Floor Drain/Wedge Wire Strip Drain Grate
Type Plain Bar Grating,Serrated Bar Grating,I Bar Grating Color Silver,black,available To Any Colors,on Your Request,ect Or Custom
Length 300-3000mm,800mm,6000mm,Customers' Demand Name Steel Sheet Grating,Steel Floor Decking,composite Drainage Cover Road Drain Grating Covers / Manhole Cover,steel Bar Grating
Standard ISO9001 Thickness 5mm,0.3-1.0mm
Cross Bar Pitch 120,60,76 Size Customized,300*450*35
Width 600-1250mm,70-600mm Feature Easily Assembled,Durable,Corrode-resistant,less Weight
Keywords Heavy Duty Stainless Steel Metal Floor Bar Grating,galvanized Steel Grating Bearing Bar Pitch 25,30mm,on Request.
Packing Pallet,Wooden Box Grating Size 3'x20',1000x1000mm,1000x6000mm And All
Process Pressure-locked,Swage Locked,Casting. Deburring .Drilling .threading
High Light

trench cover stainless steel grating

,

compact channel stainless steel grating

,

ss316 stainless bar grating

Leave a Message
Product Description



SS314 Channel Steel Grating Stainless Compact Drainage Trench Grates



The heel guard grate is made with stainless steel, a popular construction material because of its non-porous nature. Because it is made with stainless steel, cleaning it is much easier than grate made with plastics. In this heel guard grate, people don’t need to worry about any debris stuck in ridges or pores because of thin slots; only water will go inside, and leaves and all other types of material stay on the top, which can help remove them without damaging the grate. In addition, these heel guard grates do not require any painting and coating, so people can install them and save their money for the long run without worrying about fading their color due to age.

Most people prefer to use heel guard grates because by using them, there is less risk of viruses, fungi, microbes, and bacteria propagating on/in the drainage system. Stainless steel non-porous material resists the growth of bacteria and other risky organisms. If people use stainless heel guard grates, it looks clean and hygienic, and more sanitary.

  • 316 stainless steel construction
  • Infinity HeelGuarge grate provides the strongest and best flowing drainage for any shower
  • Fits against the wall or any location, including barrier free showering applications
  • Height adjustable leveling feet for grate
  • Includes debris strainer and grate removal key



Our heel guard / wedge wire range

Wedge Wire Grate and Trough Width 60mm Depth 20mm

Wedge Wire Grate and Trough Width 85mm Depth 20mm

Wedge Wire Grate and Trough Width 100mm Depth 20mm

Available lengths 800, 850, 900, 950, 1000

Parameters

Data

Bear Bar Type

Flat Bar, I-Bar, Serrated Bar, etc..

Bearing Bar Size

20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc..

Bearing Bar Spacing

20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier.

Cross Bar Type

Twisted Steel Rod, Flat Bar

Cross Bar Size

3mm, 4mm, 5mm ,6mm or thicker

Cross Bar Spacing

50mm or 100mm

Bearing Bar Length

Customerized from 1000mm to 6000mm or more

Cross Bar Length

Under 1200mm

Material Grade

Mild Steel(Q235B), Stainless Steel 304 or 316, etc.

Treatment Available

Hot dipped Galvanized, Anodized, Polished and Powder Coated

Standards

Steel Grating Standard

Steel Material Standard

HDG Coating Standard

China

YB/T4001-1998

GB700-88

GB/T13912-92

USA

ANSI/NAAMM(MBG531-88)

ASTM-A36

ASTM-A123

UK

BS4592-1987

BS4360(43A)

BS729

Australia

ASl 657-1992

AS3679

ASl650


Product display:

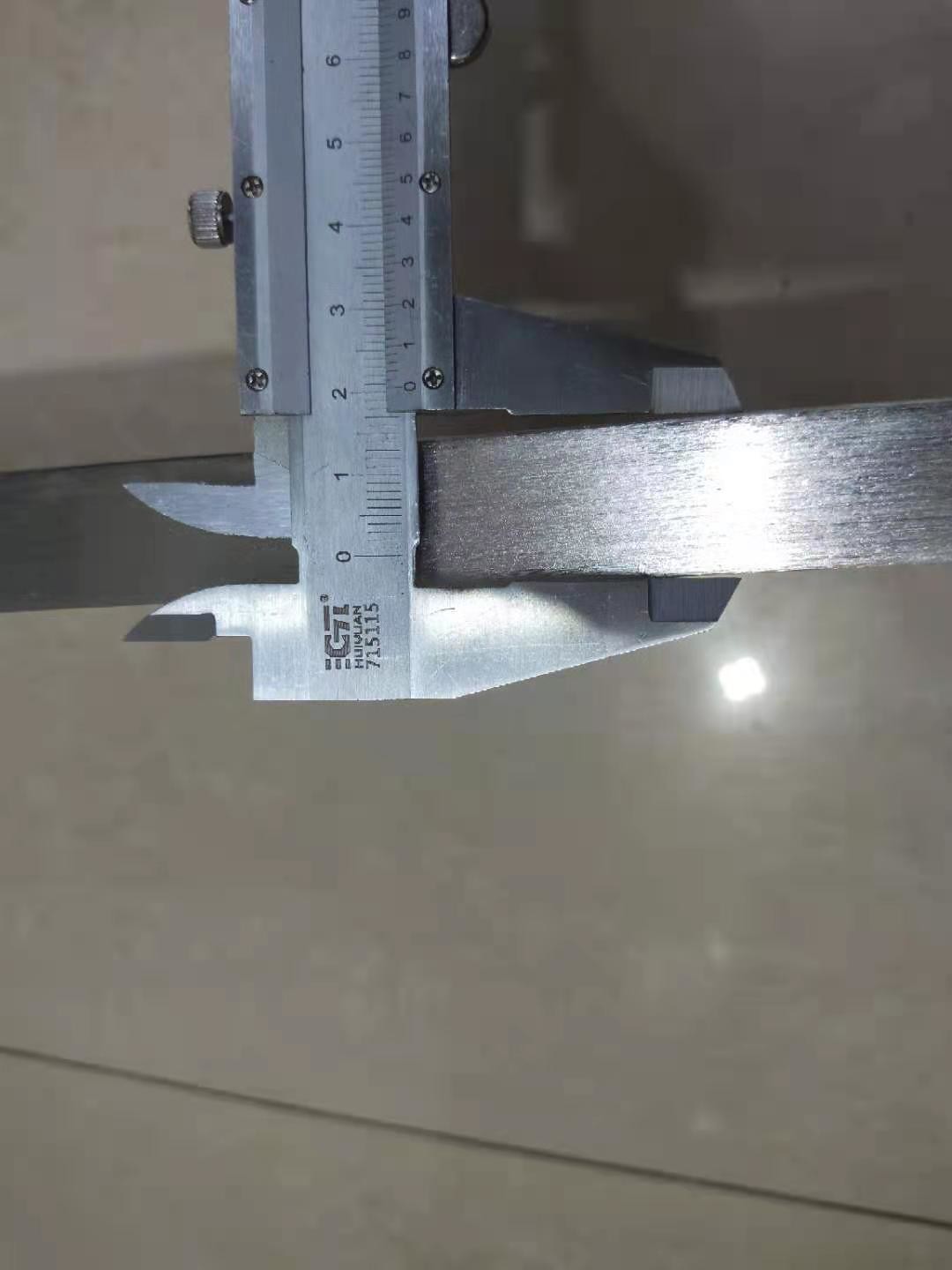

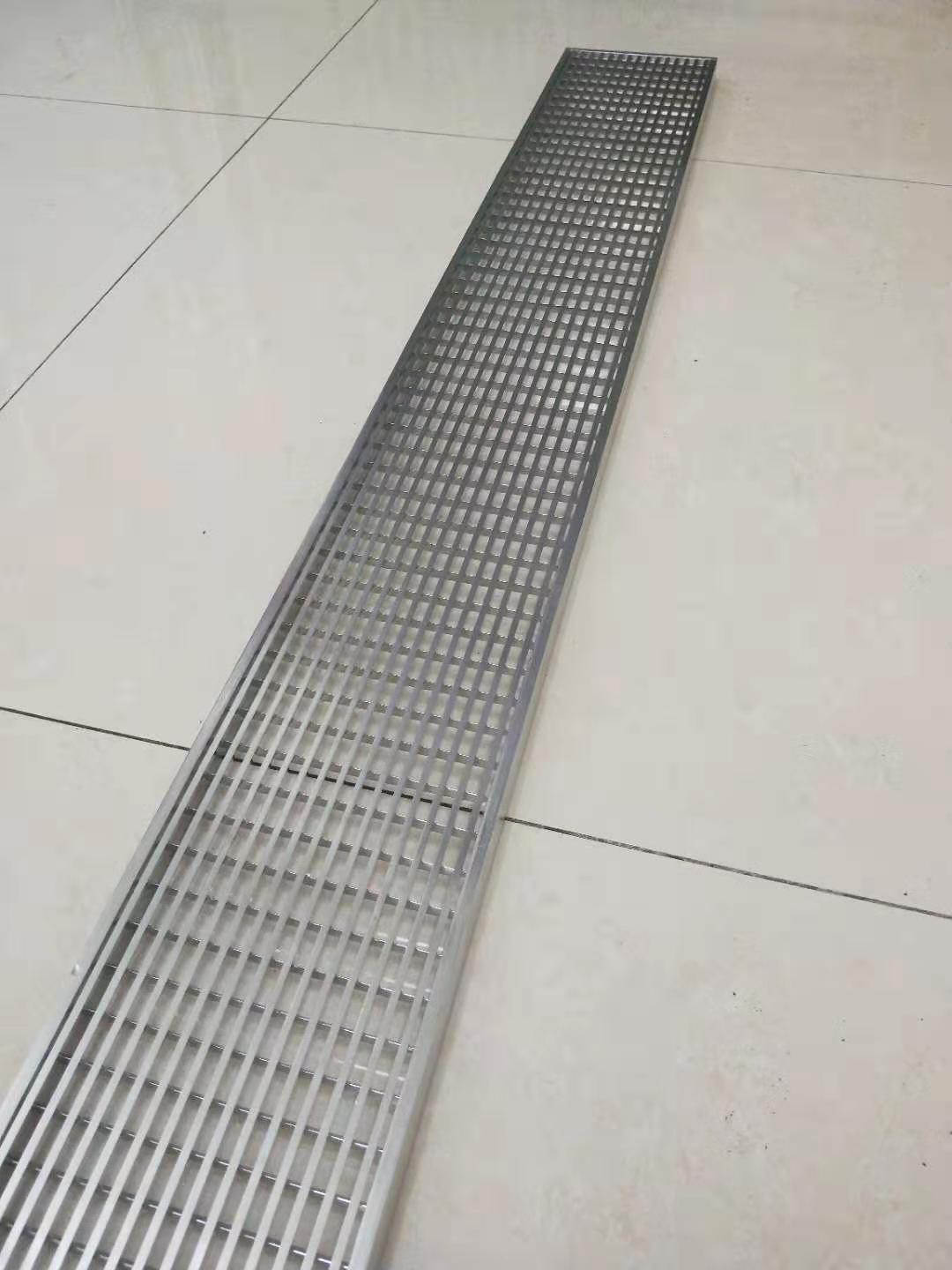

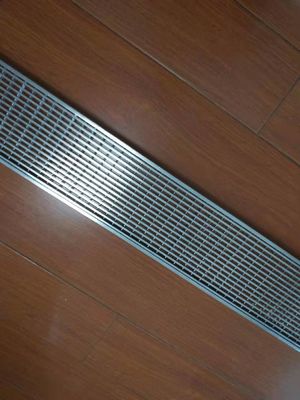

Trench Cover Stainless Steel Grating Compact Channel 20mm High Bar Grate 0Trench Cover Stainless Steel Grating Compact Channel 20mm High Bar Grate 1Trench Cover Stainless Steel Grating Compact Channel 20mm High Bar Grate 2

Features

Stainless steel 304 and 316

100% leak tested

Individually welded design (not a kit to silicon)

Brushed finish and non-slip grid form

Easy to clean

Compliments your landscape spaces

High load ratings

10-year warranty

Custom sizes and width options

Stylish and simple design

A manufacturing process in Australia

Watermark certification

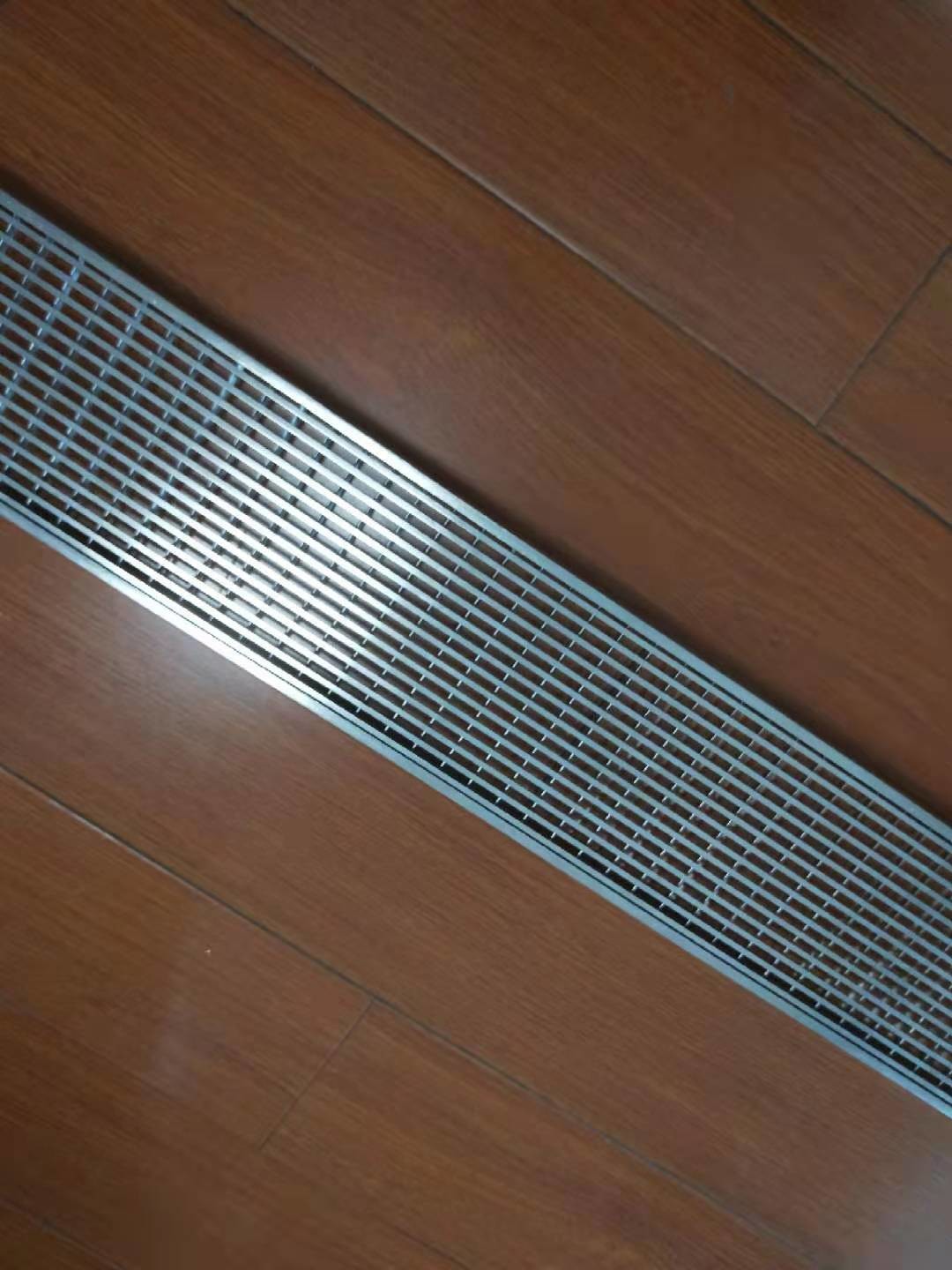

Trench Cover Stainless Steel Grating Compact Channel 20mm High Bar Grate 3

Product certification

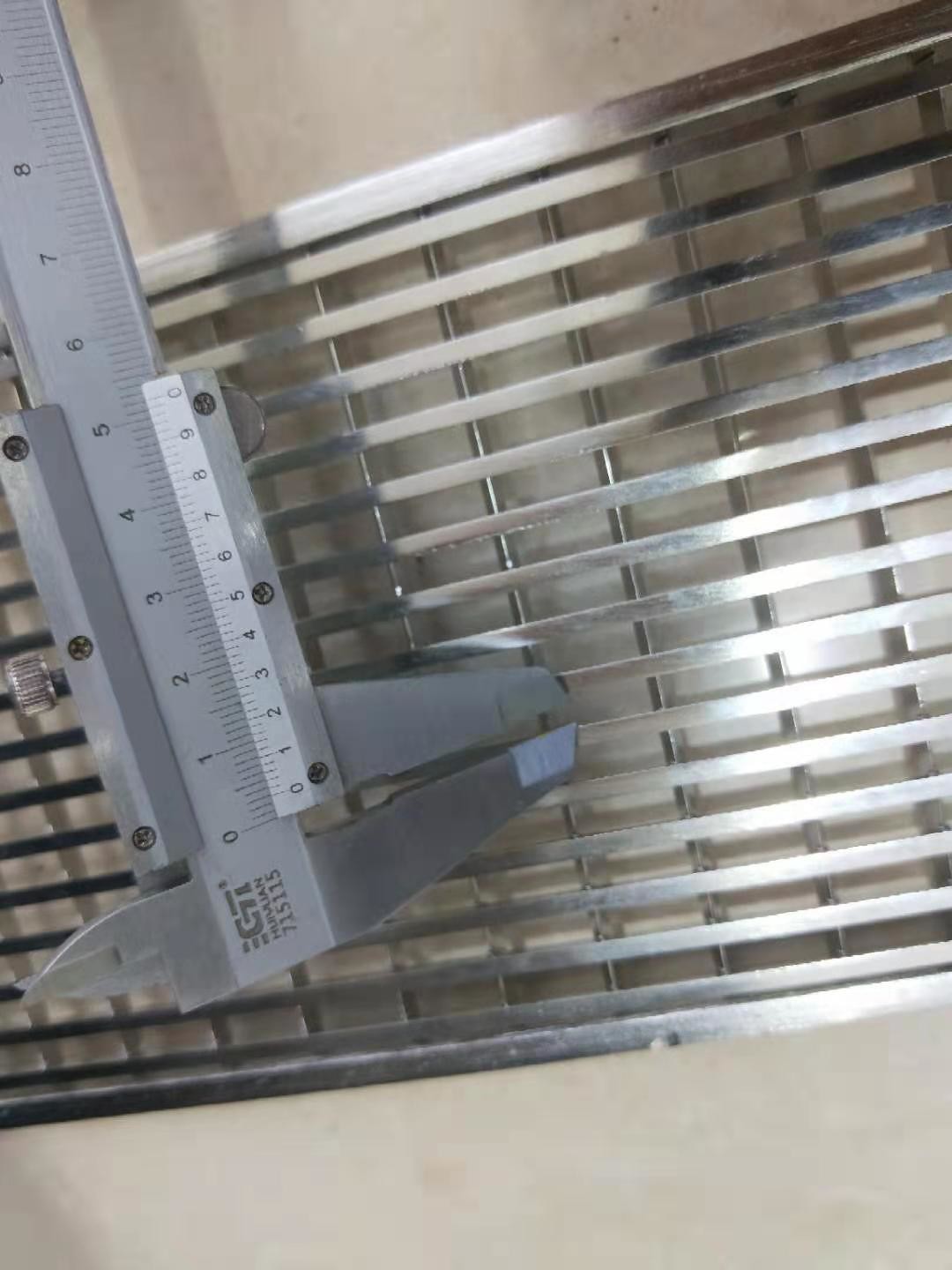

Trench Cover Stainless Steel Grating Compact Channel 20mm High Bar Grate 4

FAQ
1. How can I get a catalogue?
Please call us or send us email. We will reply within 24 hours.

2. Is customized product available ?
Besides common size, we accept customized fabrication. Just let us know your requirements.

3. How long after I place an order can I expect delivery?
This depends on the product chosen. We will always try to fit in deliveries to meet customer requirements, so if you have a specific deadline please talk to us. Some of our products are custom made, so will have a longer delivery time, but we can give you an estimated delivery date at the time of placing your order. We aim to complete the majority of deliveries within 15 days.
