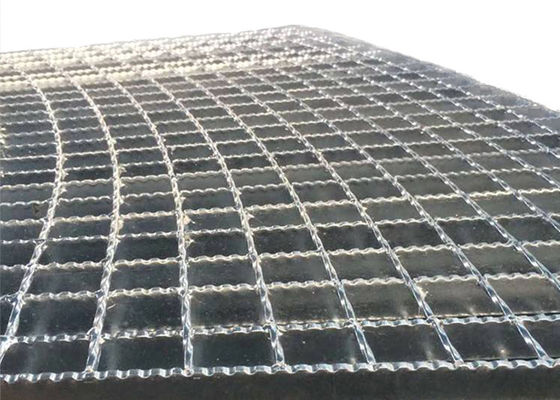

Serrated Galvanized Bar Platform Heavy Duty Welded Steel Grating For Workshops And Warehouse
| Place of Origin | Hebei of China |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO, SGS |
| Model Number | SG32502 |
| Minimum Order Quantity | 100 m2 |
| Price | USD 15 per m2 |
| Packaging Details | standard sea shipping package |
| Delivery Time | 5-8 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 m2 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Bearing Bar | 30, 40, 50 |
|---|---|---|---|
| Twisted Bar | 6mm | Pitch | 100mm |
| Surface | Hot Dipped Galvanized | Panel Size | As Request |
| Feature | Corrosion Resistance | Application | Workshop, Industry Platform |
| Type | Serrated Bar | OEM/ODM | Yes |
| High Light | serrated heavy duty welded steel grating,workshops heavy duty welded steel grating,industrial steel serrated bar grating |
||
You can tick the products you need and communicate with us in the message board.
| SG32502 |
|---|
Product Description

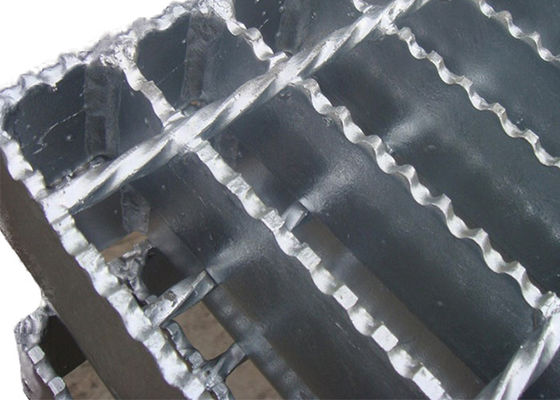

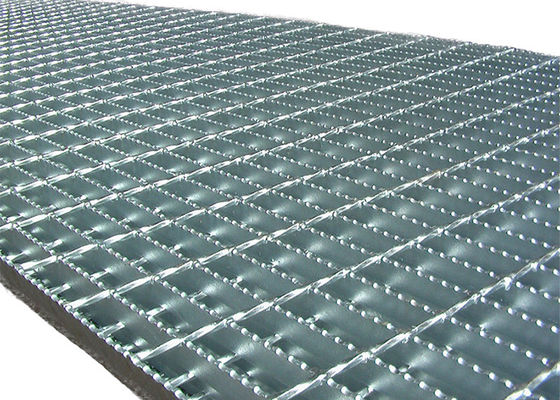

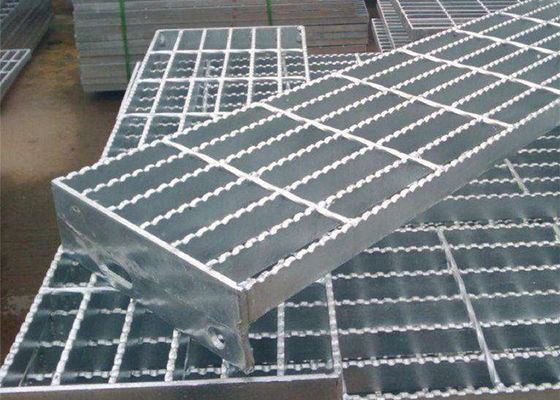

Serrated Steel Grating, Galvanized Grating Steel, Bar Grating Steel Platform for Workshops and Warehouse
| 1.Bearing Bar (Load Bar) Specifications (mm) | The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10. The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc. |
| 2. Bearing Bar Pitch (center to center) | 12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc,30, 40, 60mm are recommended. Other dimensions can be made as customer's request. America standard is available: 1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',1 1/2' x 1/4'(19-w-4),(19-w-2) and so on. |
| 3. Cross Bar Pitch (center to center) | 38, 50, 76, 100, 101.6mm etc, 50, 100mm are recommended. America standard is available. |
Welded galvanized grating. The cross bars are welded onto bearing bars with the high pressure resistance welding machine and then cutting, banding, surface treatment.
Press-locked galvanized grating. The cross bars are pressure locked onto the bearing bars with grooving and then welding and hot dipped galvanizing.
Features & Characteristics
High strength. The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Hot-dip galvanized treatment. Good rust-proof property, maintenance-free replacement.
Anti-theft design. The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments. Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
Aesthetic outlook. Simple lines and silver appearance meeting the modern trend.
The best drainage. Leakage area of 83.3 percent, more than twice of cast iron products.
Applications
Galvanized grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.
Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
Widely used in the petrochemical industry, power plants, waterworks, sewage treatment plants, municipal works, sanitation projects in areas such as platforms, corridors, bridge, ditch cover, covers, ladders, fences, rails, and so on.
Product Description
Hot DIP Galvanized steel grating for floor and trench
