High Strength Galvanized Industrial Steel Grating For Substantially Heavy Load Areas
| Place of Origin | Hebei of China |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO, SGS, CE |
| Model Number | SG32503 |
| Minimum Order Quantity | 100 m2 |
| Price | USD 15 per m2 |
| Packaging Details | standard sea shipping package |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 m2 per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235, Q295 | Surface | Galvanized |
|---|---|---|---|
| Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat |
| Application | Floor, Walkway, Platform, Stair Tread, Bridge | Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom |
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) |
| Length | 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand | Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6 |
| Earing Bar Pitch | 30mm, 30, 40, 25, On Request. | Width | 1000mm, According To Your Size, 50-500MM, 600-1250mm |
| Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight | OEM/ODM | Yes |
| High Light | high strength galvanized industrial steel grating,heavy load areas industrial steel grating,serrated welded steel bar grate |
||
You can tick the products you need and communicate with us in the message board.
| SG32503 |
|---|
Product Description

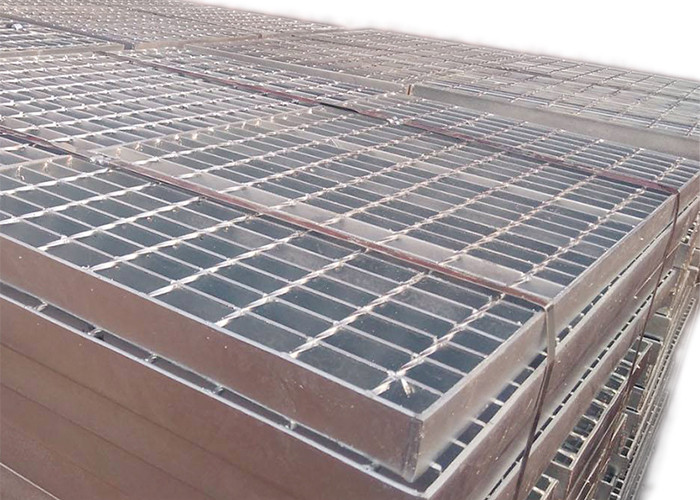

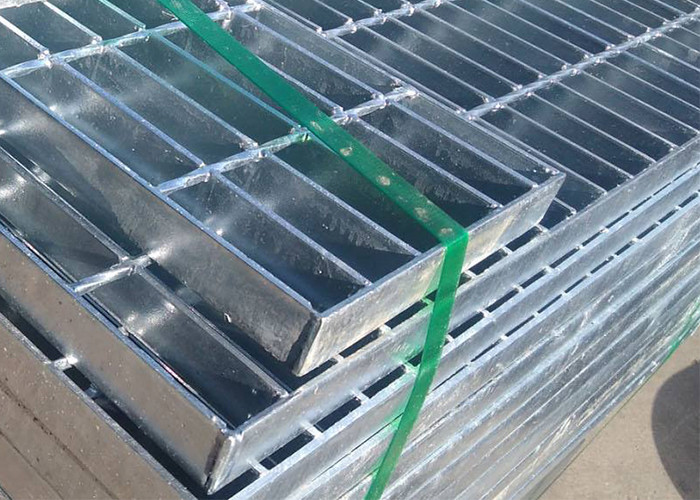

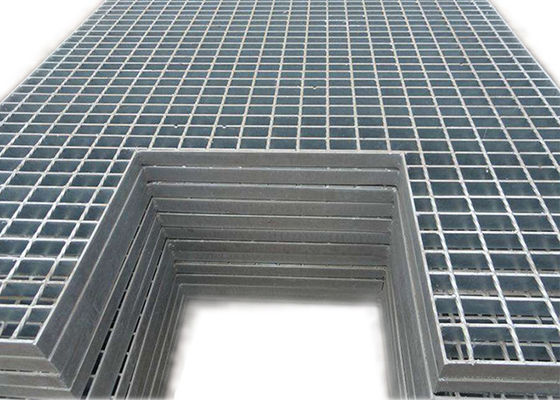

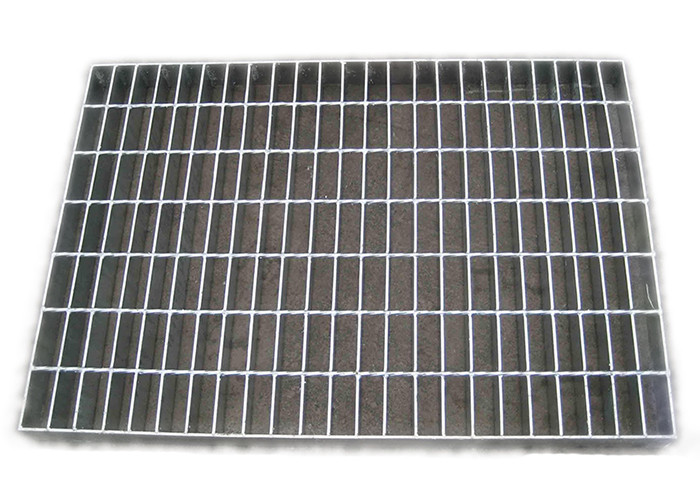

Heavy Duty Steel Bar Grating High Strength Galvanized Grating Steel for Substantially Heavy Load Areas
Product Description
Steel Grating Drainage Trench Cover and Well Cover
Steel bar grating is a good choice for strength, safety, long-term cost and durability.
Bar Grating consists of a series of bearing bars, welded (or otherwise joined) at various intervals to
perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes.
Stair treads are the horizontal sections of stairs that serve as the step surface of each step.
These treads are installed on the top of each step.
1.Material:
Low Carbon Steel or Stainless Steel
2.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing
3.Steel grating standards:
A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JIS
| 1 Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| 3 Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
Specifications:
--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,
55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to
client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',
1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>
--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are
recommended, America standard is available.
Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.
