High Loading Strength Black Galvanized Steel Grating Walkway

Place of Origin Hebei of China
Brand Name ZHUOTE
Certification ISO, SGS, CE
Model Number SG32504
Minimum Order Quantity 100 m2
Price USD 15 per m2
Packaging Details standard sea shipping package
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100000 m2 per year
Product Details
Material Q235, Q295 Surface Galvanized
Product Name Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat
Application Floor, Walkway, Platform, Stair Tread, Bridge Color Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom
Thickness 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm Standard ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88)
Length 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand Cross Bar Pitch 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6
Earing Bar Pitch 30mm, 30, 40, 25, On Request. Width 1000mm, According To Your Size, 50-500MM, 600-1250mm
Feature Heavy, Bright On Surface, Modern, High Strength, Light Weight OEM/ODM Yes
High Light

black galvanized steel grating walkway

,

serrated bar galvanized steel grating walkway

,

high loading strength industrial steel grating

You can tick the products you need and communicate with us in the message board.
SG32504
Leave a Message
Product Description

High Loading Strength Black Steel Bar Grating, Grating Steel for Airfields, Industrial Plants, Truck and Bus terminals

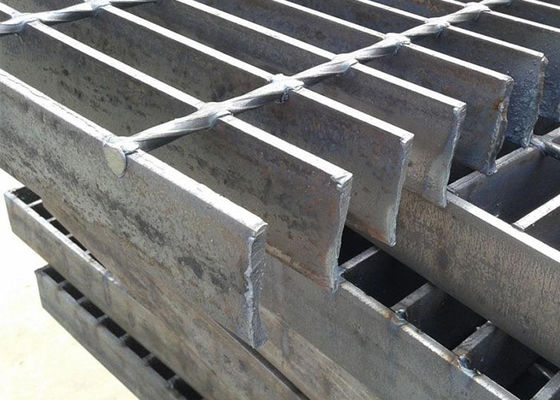

High Loading Strength Black Galvanized Steel Grating Walkway 0

Welded galvanized grating. The cross bars are welded onto bearing bars with the high pressure resistance welding machine and then cutting, banding, surface treatment.
Press-locked galvanized grating. The cross bars are pressure locked onto the bearing bars with grooving and then welding and hot dipped galvanizing.
Features & Characteristics

High strength. The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Hot-dip galvanized treatment. Good rust-proof property, maintenance-free replacement.
Anti-theft design. The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments. Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
Aesthetic outlook. Simple lines and silver appearance meeting the modern trend.
The best drainage. Leakage area of 83.3 percent, more than twice of cast iron products.
Applications

Galvanized grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.



1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
3 Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc

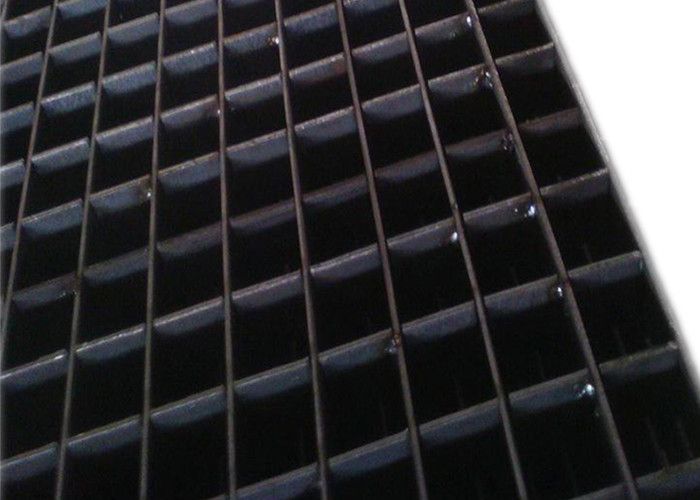

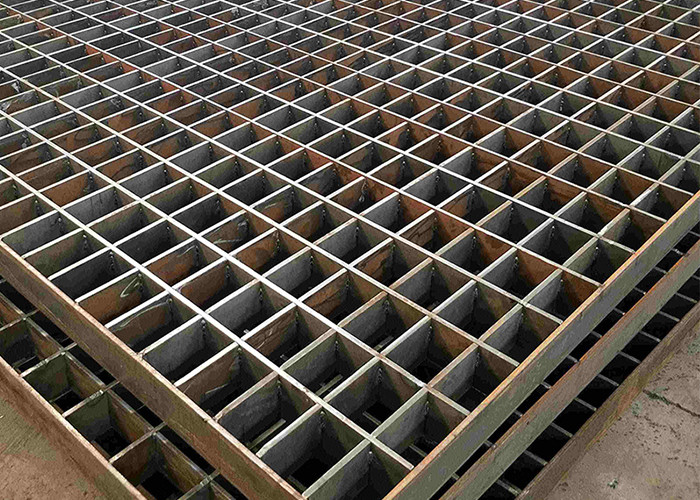

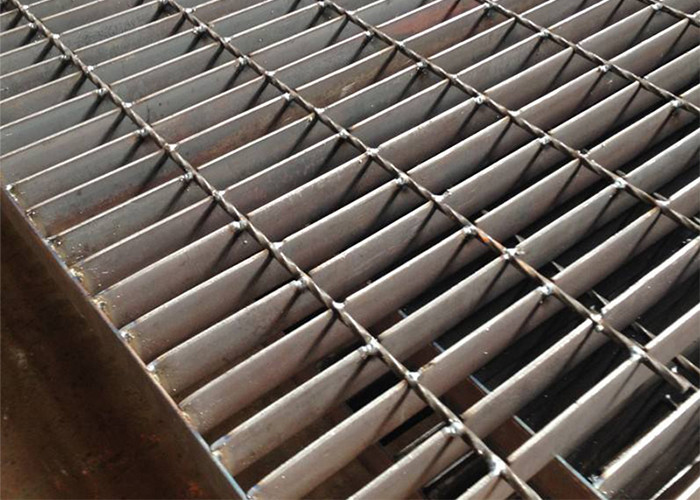

High Loading Strength Black Galvanized Steel Grating Walkway 1High Loading Strength Black Galvanized Steel Grating Walkway 2High Loading Strength Black Galvanized Steel Grating Walkway 3



Specifications:

--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,
55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to
client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',
1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>

--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are
recommended, America standard is available.



Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.
