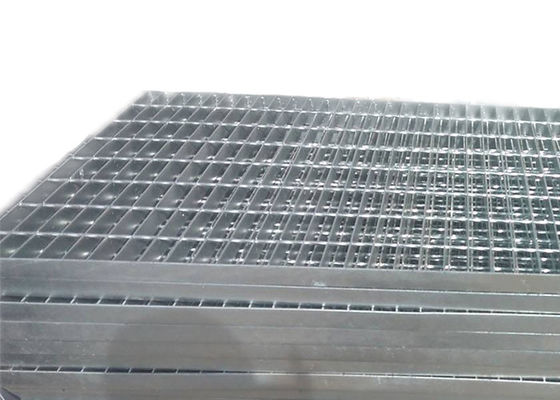

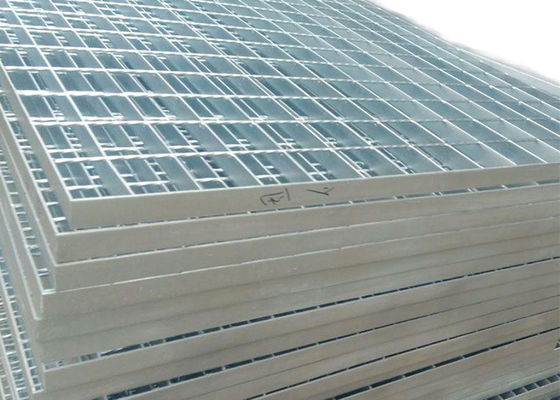

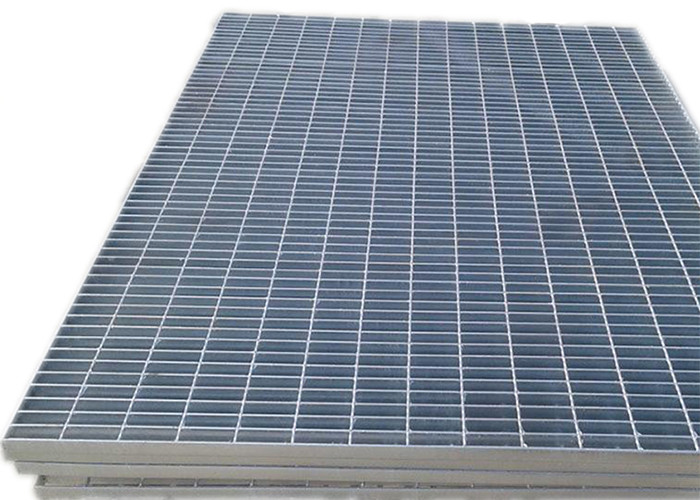

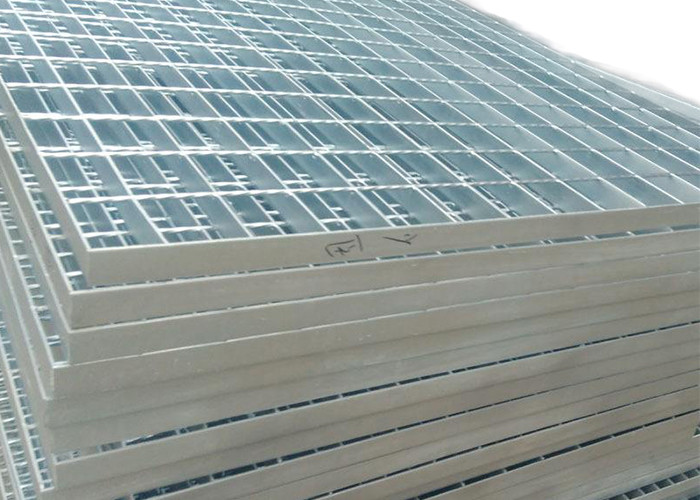

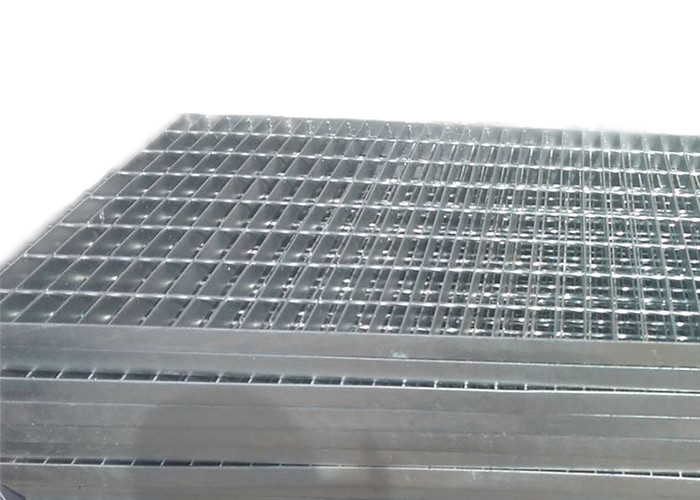

Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal

  • Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal
  • Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal
  • Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal
  • Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal
Place of Origin Hebei of China
Brand Name ZHUOTE
Certification ISO, SGS, CE
Model Number SG32505
Minimum Order Quantity 100 m2
Price USD 15 per m2
Packaging Details standard sea shipping package
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100000 m2 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235, Q295 Surface Galvanized
Product Name Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat
Application Floor, Walkway, Platform, Stair Tread, Bridge Color Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom
Thickness 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm Standard ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88)
Length 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand Cross Bar Pitch 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6
Earing Bar Pitch 30mm, 30, 40, 25, On Request. Width 1000mm, According To Your Size, 50-500MM, 600-1250mm
Feature Heavy, Bright On Surface, Modern, High Strength, Light Weight OEM/ODM Yes
High Light

industrial steel grating odm

,

odm steel driveway grate

,

hot dipped galvanized steel driveway grate
You can tick the products you need and communicate with us in the message board.
SG32505
Leave a Message
Product Description

High Quality Hot Dipped Galvanized Industrial Metal Grating for Platforms, Walkways, Driveway, Stair, Floor



Product Description
Steel Grating Drainage Trench Cover and Well Cover

Steel bar grating is a good choice for strength, safety, long-term cost and durability.
Bar Grating consists of a series of bearing bars, welded (or otherwise joined) at various intervals to
perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes.

Stair treads are the horizontal sections of stairs that serve as the step surface of each step.
These treads are installed on the top of each step.

1.Material:
Low Carbon Steel or Stainless Steel

2.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing

3.Steel grating standards:
A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JIS

Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal 0​

1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
3 Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc

​Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal 1Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal 2Hot Dipped Galvanized ODM Steel Driveway Grate Industrial Metal 3



No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS
ISO 9001-2008 & SGS COMPANY, GRATING SPECIALIST, YOUR GRATING SOLUTIONS! MR. DAVID


Steel bar grating is a good choice for strength, safety, long-term cost and durability.
Bar Grating consists of a series of bearing bars, welded (or otherwise joined) at various intervals to
perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes.

Stair treads are the horizontal sections of stairs that serve as the step surface of each step.
These treads are installed on the top of each step.
