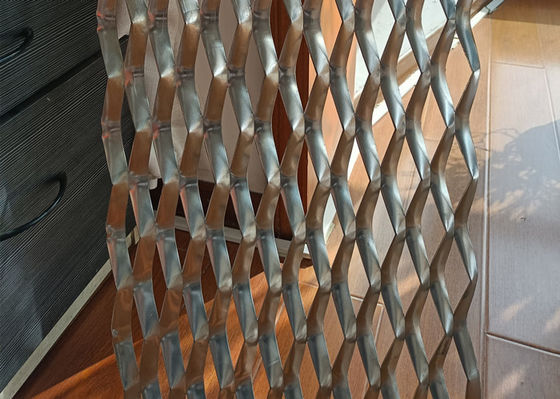

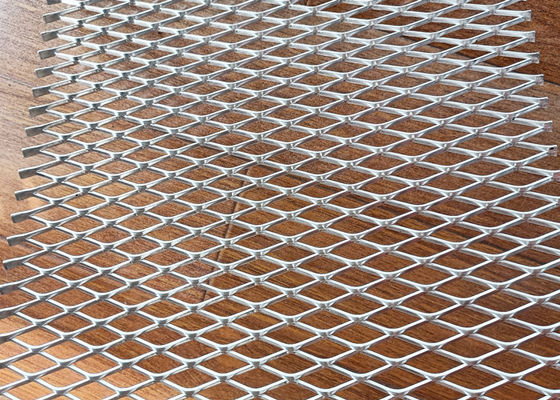

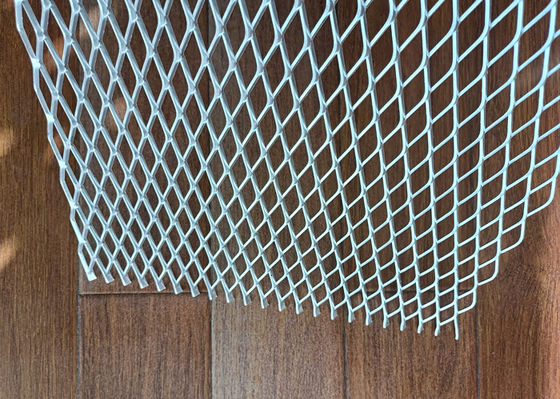

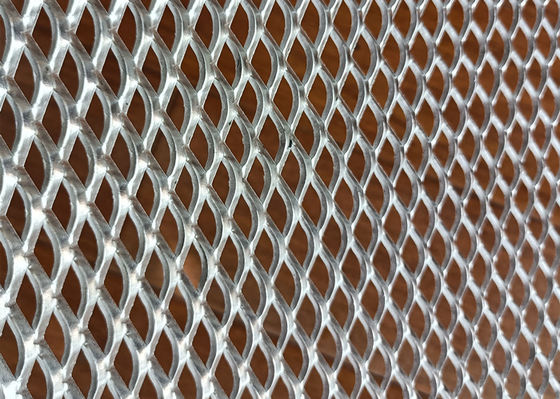

4 By 8 Expanded Metal Sheet 1mm Diamond Flat For Exterior Buildings
Place of Origin | HeBei,China |
---|---|
Brand Name | TT |
Certification | ISO9001,CE |
Model Number | 01 |
Minimum Order Quantity | 100piece/pieces |
Price | Negotiable |
Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
Delivery Time | 5-8days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 25000piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Type | Expanded Mesh,Perforated Mesh,expanded Sheet Metal | Hole Shape | Diamond,etc,Round,hexagonal,Triangle |
---|---|---|---|
Length | Customers' Requirement | Thickness | 0.5-25mm |
High Light | 4 by 8 expanded metal sheet,1mm expanded metal sheet,4 by 8 sheet of expanded metal |
Product Description
Durable Aluminum Sheet Diamond Expanded Wire Mesh
Product Description
Aluminum Expanded Metal Roof Cladding Panels
Framed expanded metal lath cladding panels to roof areas.
a) Panels shall comprise expanded aluminium metal lath sheets fixed inside extruded metal framing.
b) Size and configuration of panels shall be as indicated on the Design Drawings. Note that various size and shape panels are used for the roof. Panels shall be arranged in a staggered pattern.
c) Where there is not sufficient depth for mesh panels, these shall be substituted for stainless steel blanking panels where indicated on the Design Drawings.
d) Frames shall be ‘T’ profile, with expanded aluminium metal lath sheets fixed inside so that top edge of frame is exposed. This top edge shall be finished flush with the top of the sheet.
e) Panels shall be fixed to secondary steelwork supporting structure using a concealed bracket system as indicated on the Design Drawings. Fixings shall allow panels to be individually removed for cleaning, maintenance and replacement as required.
f) System shall include all secondary steelwork as required.
g) Roof areas shall be designed to accommodate platform and walkway floor loads in accordance with BS 5395.
h) Joints: Minimal open joints as indicated on the Design Drawings. Advise the Client’s
Representative if larger joints are required to accommodate thermal expansion.
i) Finish: Natural anodised. Panels shall be fully fabricated prior to anodising. No cutting or drilling shall be allowed following anodising. Refer to Section Z33.
j) Thickness: Expanded metal lath panels shall be 5mm thick. Contractor shall confirm
Material |
Stainless steel,thin low carbon steel,brass plate, Aluminum plate and so on |
Hole Shape |
Diamond,square hole,scale hole,gothic etc.
|
Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized |
Thickness |
0.3-10.0mm |
Surface treatment |
Galvanized,PVC coated |
Expanded Metal Aluminum specification
- Materials: 3003 aluminum, 5005 aluminum, 5052 aluminum, etc.
- Expanded metal thickness: 0.3mm-20mm
- Expanded metal panels siezes: 1/2,3/4,1'× 2',1' × 4',2' × 2',2' ×4',4' × 4',4' × 8',5' × 10',or made to size.
- Surface treatment: anodized, powder coated, PVC coated, etc.
Auminum expanded metal features
- Aluminum expanded metal grating has good corrosion resistance and rust resistance, but it is cheaper than stainless steel mesh and is a more economical choice.
- It is not easily bent, and suitable for security mesh applications.
- Lightweight – This is the most important feature of aluminum mesh panels.
- Decorative properties for ceiling or room dividers.
product Advantage
1 | Heat insulation |
2 | Easy installation |
3 | Low maintenance cost |
4 | Long life |
5 | Upgrade the building |
6 | control becteria1.Provide customized services |
