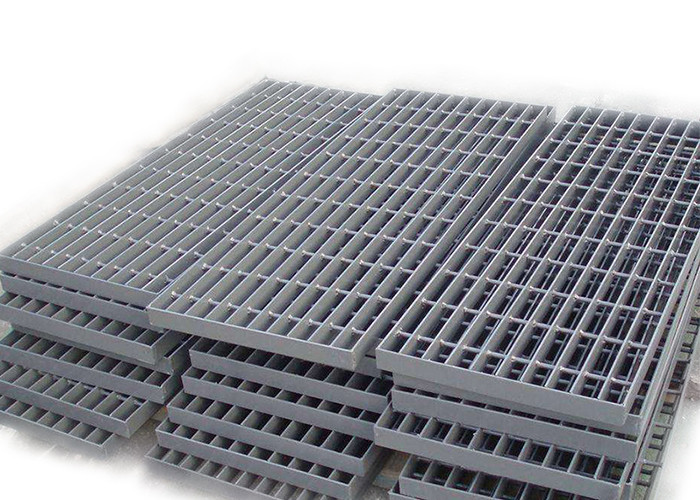

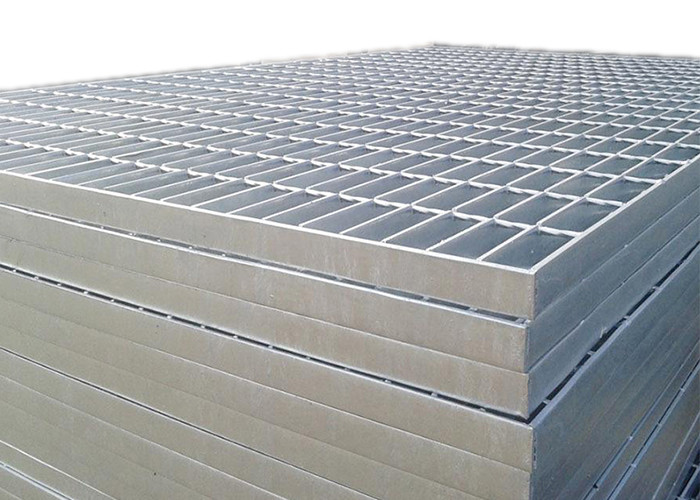

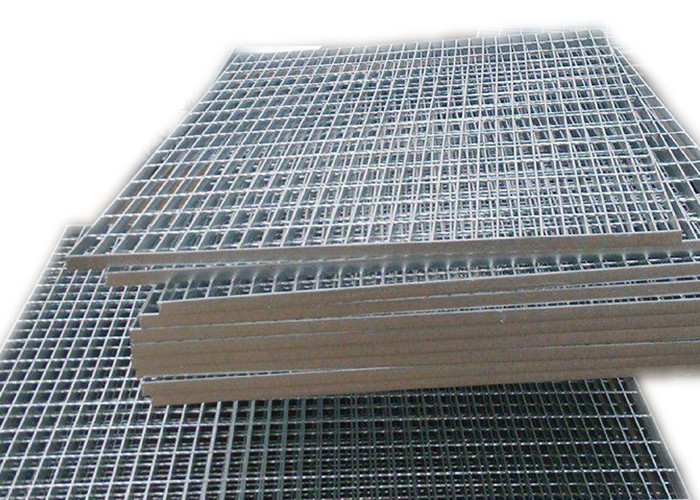

Home House Yard Plain Bar Steel Walkway Grating With 1 Year Warranty
| Place of Origin | Hebei of China |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO, SGS, CE |
| Model Number | SG32508 |
| Minimum Order Quantity | 100 m2 |
| Price | USD 16 per m2 |
| Packaging Details | standard sea shipping package |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 m2 per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235, Q195 | Finish | Galvanized |
|---|---|---|---|
| Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat |
| Application | Floor, Walkway, Platform, Stair Tread, Bridge | Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom |
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) |
| Length | 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand | Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6 |
| Earing Bar Pitch | 30mm, 30, 40, 25, On Request. | Width | 1000mm, According To Your Size, 50-500MM, 600-1250mm |
| Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight | OEM/ODM | Yes |
| Highlight | plain bar steel walkway grating,house yard steel walkway grating,plain bar industrial steel grating |
||
You can tick the products you need and communicate with us in the message board.
| SG32508 |
|---|
Product Description
Factory Supplier High Quality Galvanized Metal Grating Home and House Depot Yard Walkway with 1 Year Warranty
Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load bearing stength. And it is the most widely used in industrial, commercial and residential projects.
Welded galvanized grating. The cross bars are welded onto bearing bars with the high pressure resistance welding machine and then cutting, banding, surface treatment.
Press-locked galvanized grating. The cross bars are pressure locked onto the bearing bars with grooving and then welding and hot dipped galvanizing.
| 1 Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| 3 Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
Product Description
Steel Grating Drainage Trench Cover and Well Cover
Steel bar grating is a good choice for strength, safety, long-term cost and durability.
Bar Grating consists of a series of bearing bars, welded (or otherwise joined) at various intervals to
perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes.
Stair treads are the horizontal sections of stairs that serve as the step surface of each step.
These treads are installed on the top of each step.
1.Material:
Low Carbon Steel or Stainless Steel
2.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing
3.Steel grating standards:
A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JIS
Specifications:
--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,
55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to
client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',
1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>
--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are
recommended, America standard is available.
Application

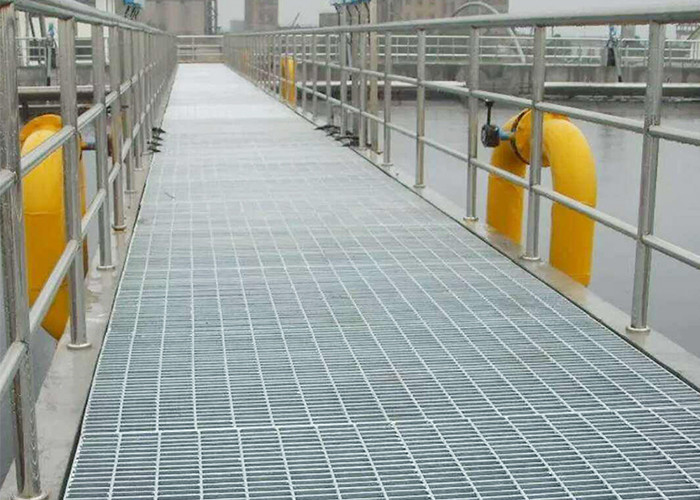

Steel grating regularly appears on catwalk, factory floor, platform, railing infill panel, stair tread, foot pedal,
drain cover, commercial and industrial flooring.
Technology
Welded galvanized grating. The cross bars are welded onto bearing bars with the high pressure resistance welding machine and then cutting, banding, surface treatment.
Press-locked galvanized grating. The cross bars are pressure locked onto the bearing bars with grooving and then welding and hot dipped galvanizing.
Features & Characteristics
High strength. The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Hot-dip galvanized treatment. Good rust-proof property, maintenance-free replacement.
Anti-theft design. The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments. Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
Aesthetic outlook. Simple lines and silver appearance meeting the modern trend.
The best drainage. Leakage area of 83.3 percent, more than twice of cast iron products.
Applications
Galvanized grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.
Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.
