Anti Slip Serrated Heavy Duty Steel Grate Hot Dipped Galvanized Coating

Place of Origin Hebei of China
Brand Name ZHUOTE
Certification ISO, SGS, CE
Model Number SG32512
Minimum Order Quantity 100 m2
Price USD 25 per m2
Packaging Details standard sea shipping package
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100000 m2 per year
Product Details
Material Q235, Q195 Finish Galvanized
Product Name Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat
Application Floor, Walkway, Platform, Stair Tread, Bridge Color Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom
Thickness 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm Standard ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88)
Length 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand Cross Bar Pitch 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6
Earing Bar Pitch 30mm, 30, 40, 25, On Request. Width 1000mm, According To Your Size, 50-500MM, 600-1250mm
Feature Heavy, Bright On Surface, Modern, High Strength, Light Weight OEM/ODM Yes
High Light

anti slip heavy duty steel grate

,

galvanized coating heavy duty steel grate

,

serrated heavy duty stainless steel grating

You can tick the products you need and communicate with us in the message board.
SG32512
Leave a Message
Product Description

Heavy Duty Anti-slip Serrated Grating with Hot Dipped Galvanized Coating for Industry Platform Walkway



Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface.

The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load bearing stength. And it is the most widely used in industrial, commercial and residential projects.

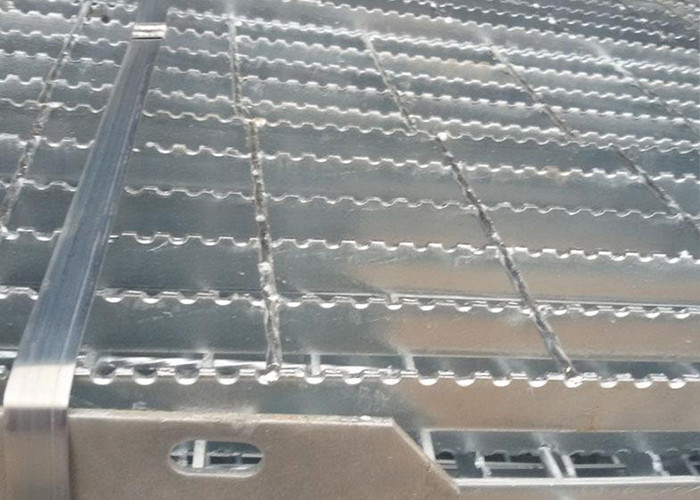

Anti Slip Serrated Heavy Duty Steel Grate Hot Dipped Galvanized Coating 0



1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
3 Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc

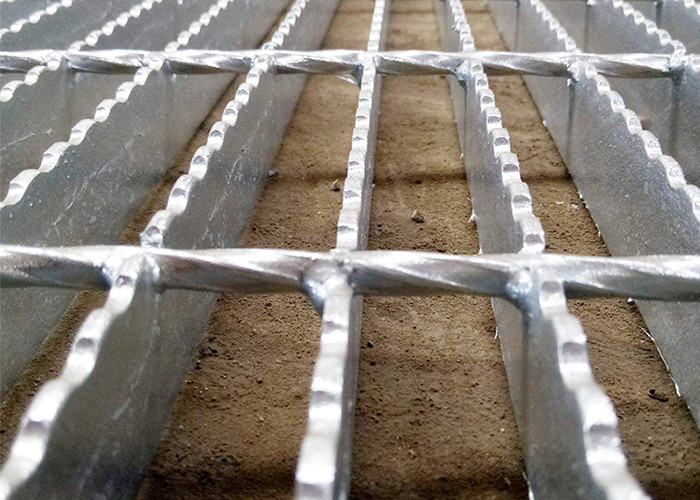

Anti Slip Serrated Heavy Duty Steel Grate Hot Dipped Galvanized Coating 1



Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.

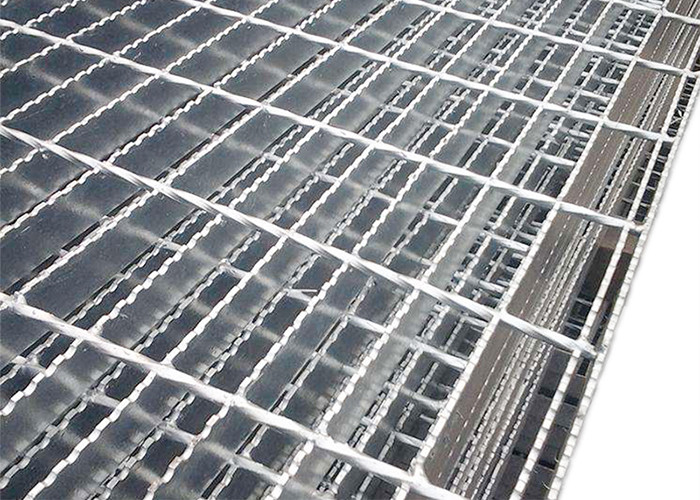

Anti Slip Serrated Heavy Duty Steel Grate Hot Dipped Galvanized Coating 2

We do custom manufacture and can supply a high quality OEM service for clients. We pride ourselves that our knowledge and experience result in us delivering high-quality products, on time--all the time. We will work closely with you from concept to creation of the first sample to final delivery.

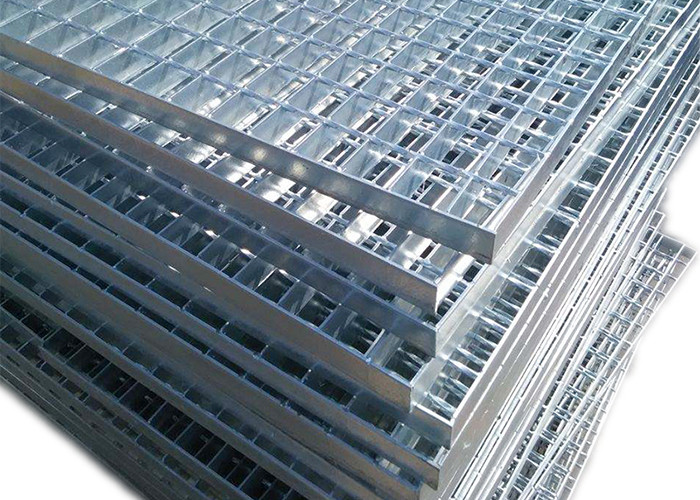

Anti Slip Serrated Heavy Duty Steel Grate Hot Dipped Galvanized Coating 3

Specifications:

--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,
55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to
client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',
1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>

--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are
recommended, America standard is available.
