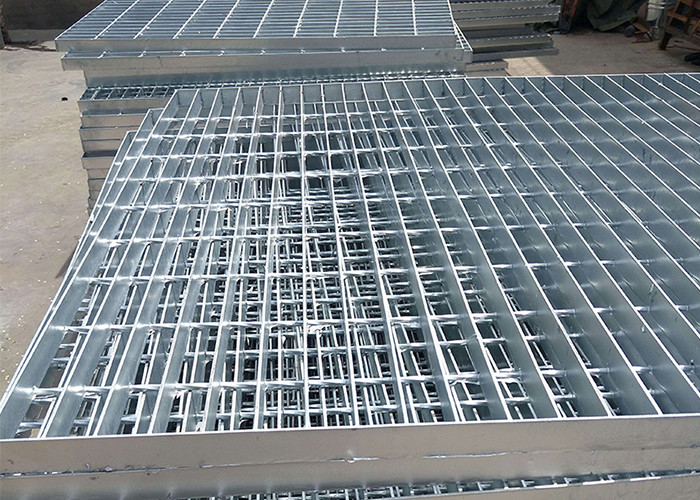

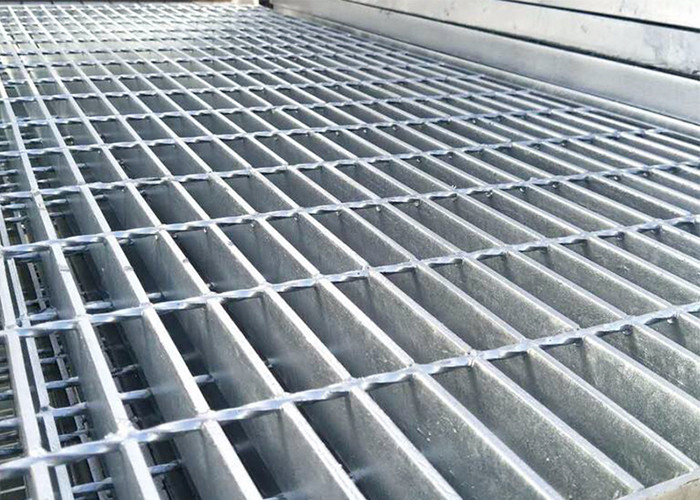

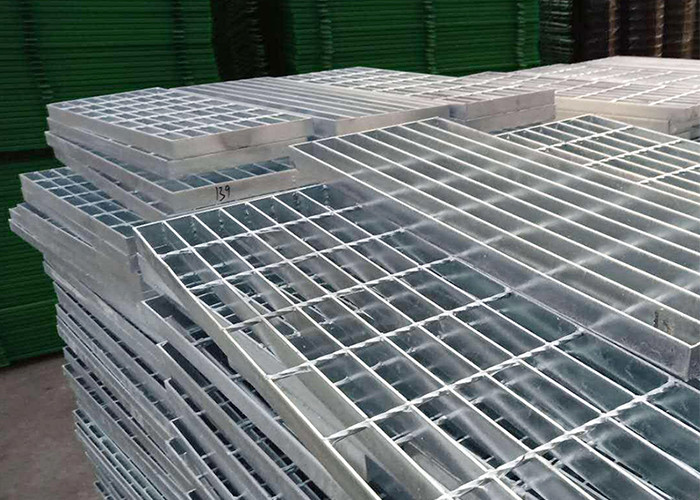

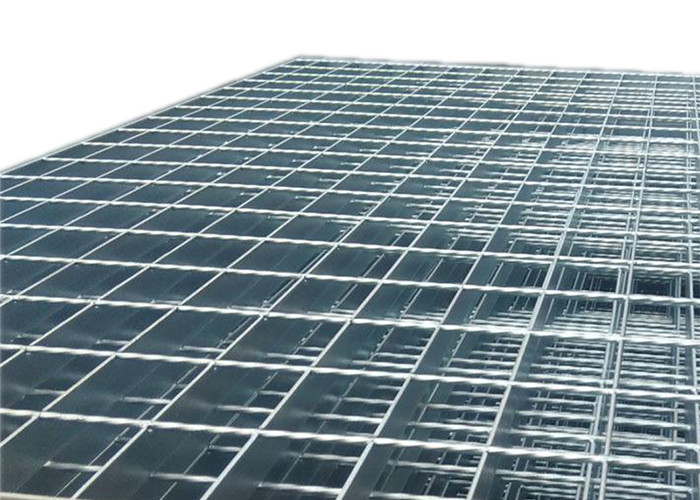

Heavy Duty Bar ODM Welded Steel Grating Industrial
| Place of Origin | Hebei of China |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO, SGS, CE |
| Model Number | SG32514 |
| Minimum Order Quantity | 100 m2 |
| Price | USD 18 per m2 |
| Packaging Details | standard sea shipping package |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 m2 per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235, Q195 | Finish | Galvanized |
|---|---|---|---|
| Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat |
| Application | Floor, Walkway, Platform, Stair Tread, Bridge | Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom |
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) |
| Length | 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand | Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6 |
| Earing Bar Pitch | 30mm, 30, 40, 25, On Request. | Width | 1000mm, According To Your Size, 50-500MM, 600-1250mm |
| Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight | OEM/ODM | Yes |
| Highlight | odm welded steel grating,heavy duty bar welded steel grating,odm industrial steel grating |
||
You can tick the products you need and communicate with us in the message board.
| SG32514 |
|---|
Product Description
Heavy Duty Welded Steel Bar Grating in Stock for Industrial Flooring, Fire Escapes, Street Drains, Bridges
Bar grating is made up of parallel bars that are connected together with perpendicular bars. The bars are most commonly connected through welding, however, there are other ways of joining the bars together. Alternatives include riveting, close meshing, press-locking and more. The most economical method of joining is determined by the materials being used and the thickness of the bars.
Bar grating can be made out of a variety of different materials but is most commonly made from steel or aluminum. It has a very high ratio of strength-to-weight and a lot of open space, making it a widely used option for industrial flooring. However, it is also used for things such as fire escapes, street drains, and bridges.
| 1 Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| 3 Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
Specifications:
--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,
55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to
client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',
1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>
--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are
recommended, America standard is available.
We do custom manufacture and can supply a high quality OEM service for clients. We pride ourselves that our knowledge and experience result in us delivering high-quality products, on time--all the time. We will work closely with you from concept to creation of the first sample to final delivery.
Application
Steel grating regularly appears on catwalk, factory floor, platform, railing infill panel, stair tread, foot pedal,
drain cover, commercial and industrial flooring.
