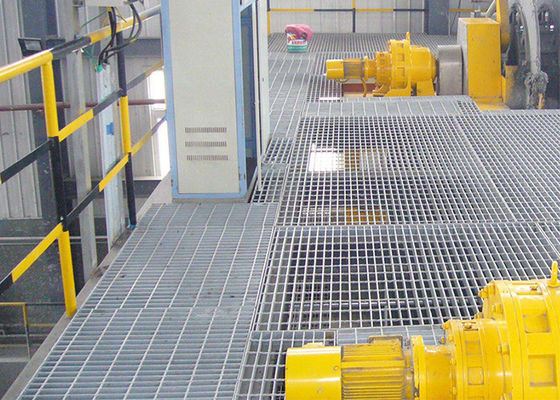

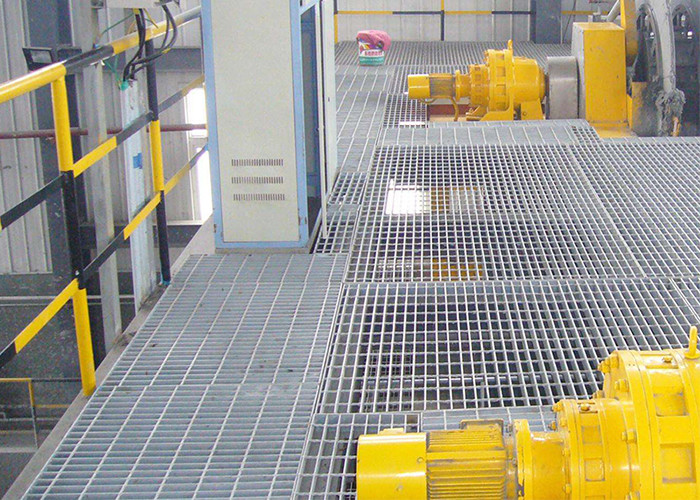

Galvanized Q195 Industrial Steel Grating Flooring Walkway Catwalk Driveway
Place of Origin | Hebei of China |
---|---|
Brand Name | ZHUOTE |
Certification | ISO, SGS, CE |
Model Number | SG32515 |
Minimum Order Quantity | 100 m2 |
Price | USD 19 per m2 |
Packaging Details | standard sea shipping package |
Delivery Time | 5-8 working days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 100000 m2 per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Q235, Q195 | Finish | Galvanized |
---|---|---|---|
Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat |
Application | Floor, Walkway, Platform, Stair Tread, Bridge | Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom |
Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) |
Length | 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand | Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6 |
Earing Bar Pitch | 30mm, 30, 40, 25, On Request. | Width | 1000mm, According To Your Size, 50-500MM, 600-1250mm |
Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight | OEM/ODM | Yes |
High Light | q195 industrial steel grating,catwalk industrial steel grating,driveway galvanised steel grating |
SG32515 |
---|
China Manufacturer Factory Supply Galvanized Steel Grating for Industrial Flooring, Walkway, Catwalk, Driveway
Bar grating is made up of parallel bars that are connected together with perpendicular bars. The bars are most commonly connected through welding, however, there are other ways of joining the bars together. Alternatives include riveting, close meshing, press-locking and more. The most economical method of joining is determined by the materials being used and the thickness of the bars.
Bar grating can be made out of a variety of different materials but is most commonly made from steel or aluminum. It has a very high ratio of strength-to-weight and a lot of open space, making it a widely used option for industrial flooring. However, it is also used for things such as fire escapes, street drains, and bridges.
1 Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
2 Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
3 Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
Specifications:
--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4,
55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to
client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4',
1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>
--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are
recommended, America standard is available.

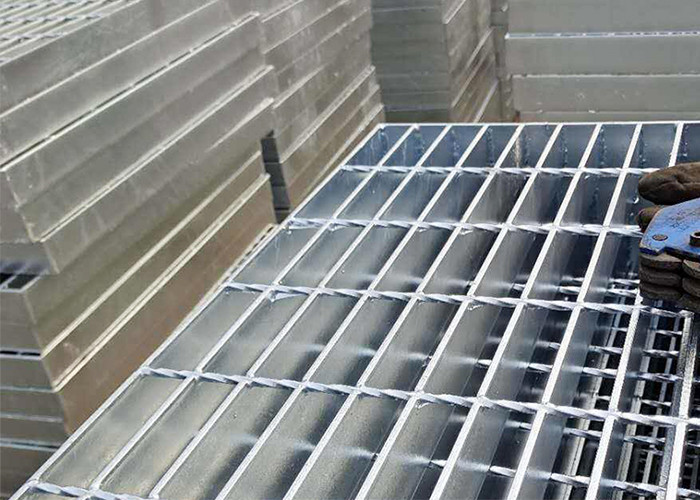

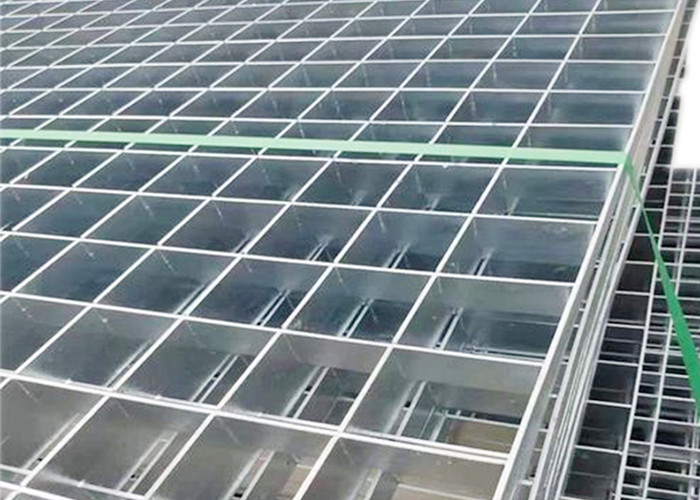

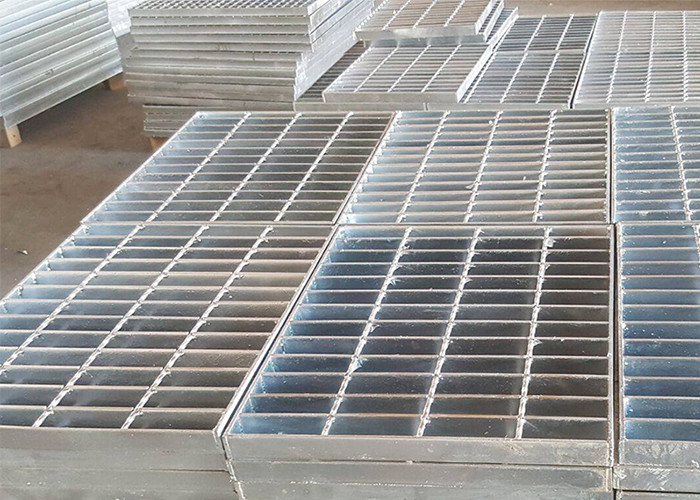

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface.
The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.
Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load bearing stength. And it is the most widely used in industrial, commercial and residential projects.
