50mm Thickness Steel Grating Heavy Duty Hot Dip Hdg Galvanised Iron Bar

Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 1piece/pieces
Price 15.27-23.6usd/pc
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month
Product Details
Type Plain Shape As Required
Material Steel,Q235,stainless Steel Galvanized Stee Bearing Bar Pitch 30mm,45mm,40,etc
Size Customized Length As Required
High Light

50mm thickness steel grating heavy duty


hdg steel grating heavy duty


iron bar heavy duty steel grating

Leave a Message
Product Description

Heavy Duty 505/15/100 Hot Dip Galvanized Steel Bar Grate Floor Grating Weight Per Square Meter


Product Description

Heavy duty steel gratings are also called heavy duty steel gratings. Heavy duty steel gratings are made of

a certain size of carbon flat steel, stainless steel, brass plates, aluminum plates through slots (holes),

plug-in locks, welding, finishing and other processes.

Made. The pressure lock grille plate culverts the characteristics of high-strength, anti-corrosion and

maintenance-free of the pressure-welded steel grid plate, and it has the unique combination of precision,

light and beautiful structure, natural harmony and elegant style.
Heavy duty steel gratings are widely used in civil engineering and commercial buildings, theaters, subways,

urban railways and other municipal engineering fields. They can be used in airport, highways, industrial

platforms, port terminals and other site platforms with special requirements.


Type Hot Dip Galvanized Steel Bar Grating 6mm 8mm 10mm Heavy Duty Steel Grating For Trailer Floor
Color sliver
Material Stainless Steel
Surface treatment Hot Dipped Galvanized
Size Customized
Bearing bar thickness 3mm-10mm
Bearing bar width 30mm-100mm
Feature Easily assembled,durable





  • Bearing bar size: 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/4″, 2-1/2″, 3″, 3-1/2″, 4″, 4-1/2″, 5″, 5-1/2″, 6″.
  • Bearing bar thickness: 1/4″, 5/16″ and 3/8″,
  • Cross bar size: 1/4″, 5/16″ and 3/8″.
  • Cross bar spacing: 2″ and 4″.
  • Bar spacing: 15/16″, 19/16″, 22/16″, 30/16″ and 38/16″.


  • Extra heavy structure to bear heavy loads.
  • Carbon steel, galvanized steel, stainless steel or painted surfaces for different applications.
  • Ideal for forklifts and trucks through traffic.
  • Different bearing bars and cross bars spacing for choice.
  • Serrated surface can be supplied for anti-slipping.

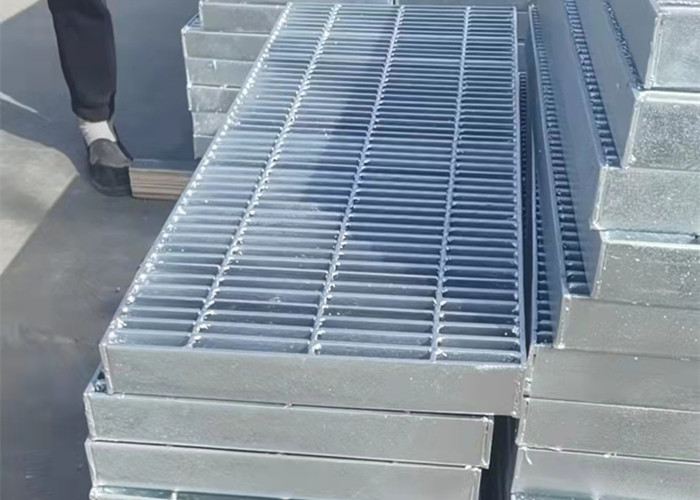

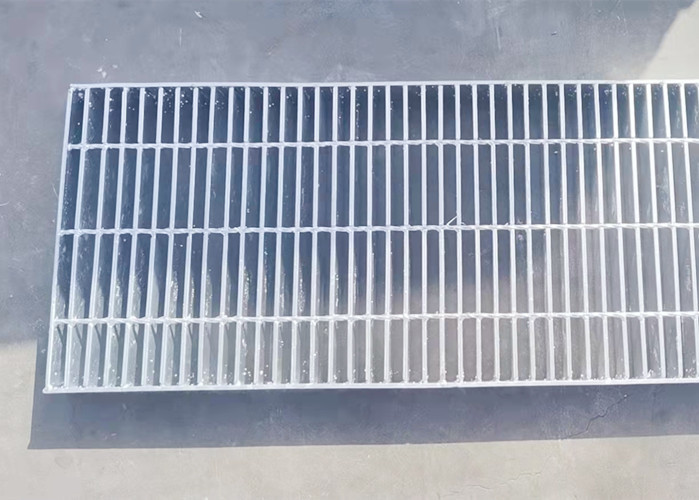

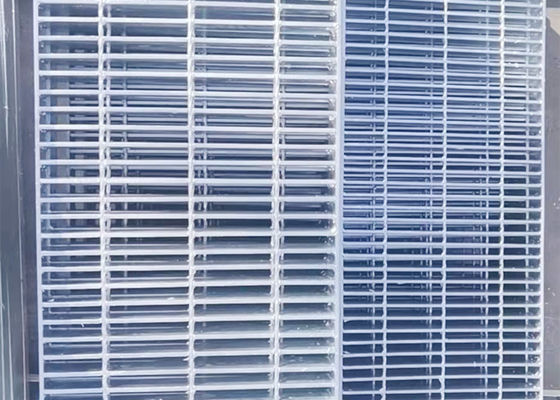

50mm Thickness Steel Grating Heavy Duty Hot Dip Hdg Galvanised Iron Bar 050mm Thickness Steel Grating Heavy Duty Hot Dip Hdg Galvanised Iron Bar 150mm Thickness Steel Grating Heavy Duty Hot Dip Hdg Galvanised Iron Bar 2

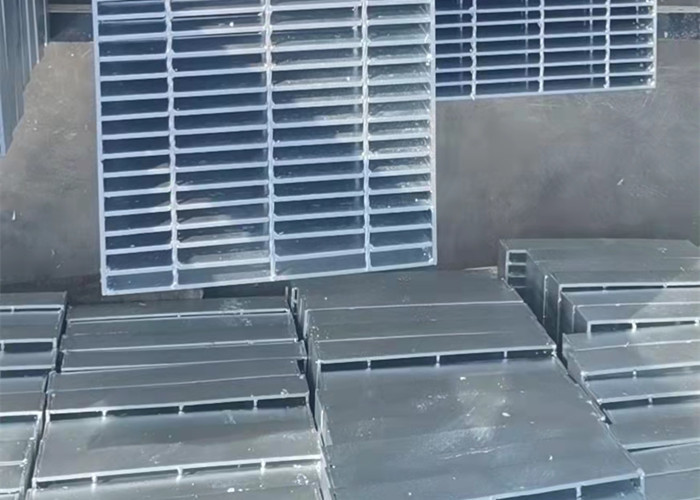

50mm Thickness Steel Grating Heavy Duty Hot Dip Hdg Galvanised Iron Bar 3


Steel grating advantage


1.No corrosion traps around joints


2.High strength to weight ratio


3.Allows shaping without loss of strength


4.Available plain or serrated


5.Allows passage of heat, light, water and ice.
