Catwalk OEM Steel Bar Grating For Platform And Deck Metal Mesh Walkway
| Place of Origin | Hebei of China |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO, SGS, CE |
| Model Number | SG32517 |
| Minimum Order Quantity | 100 m2 |
| Price | USD 25 per m2 |
| Packaging Details | standard sea shipping package |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 m2 per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235, Q195 | Finish | Galvanized |
|---|---|---|---|
| Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat |
| Application | Floor, Walkway, Platform, Stair Tread, Bridge | Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom |
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) |
| Length | 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand | Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6 |
| Earing Bar Pitch | 30mm, 30, 40, 25, On Request. | Width | 1000mm, According To Your Size, 50-500MM, 600-1250mm |
| Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight | OEM/ODM | Yes |
| High Light | oem catwalk steel grating,catwalk steel bar grating,oem steel bar grating |
||
You can tick the products you need and communicate with us in the message board.
| SG32517 |
|---|
Product Description

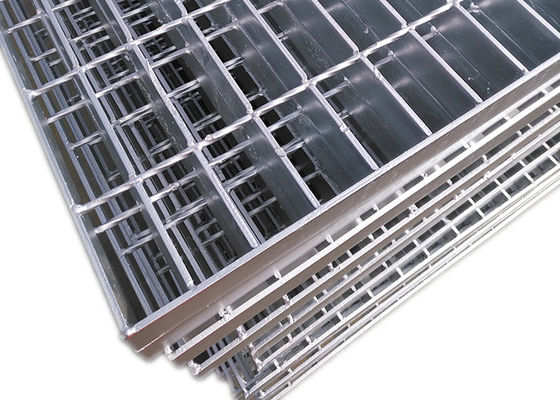

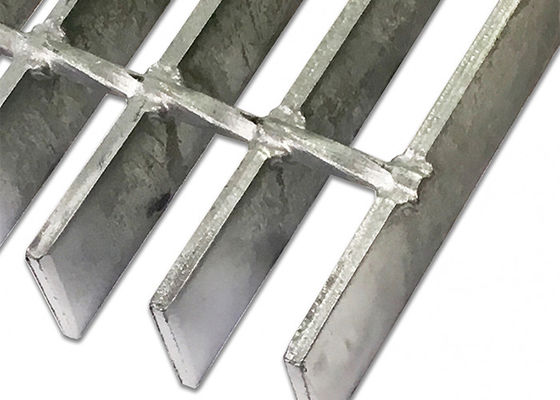

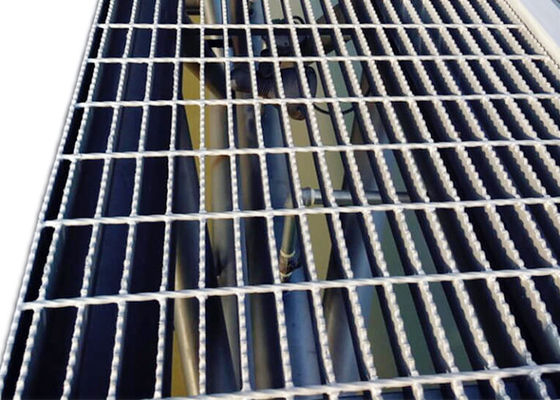

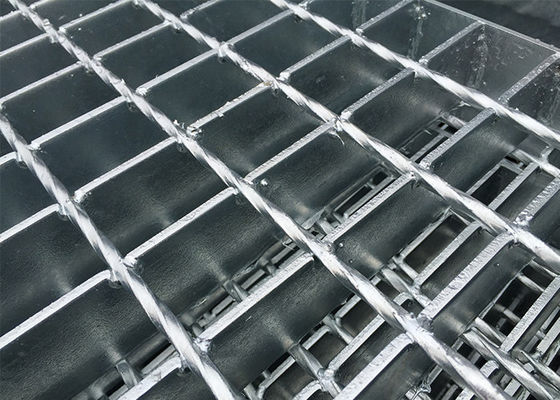

Factory Supply Hot Selling Catwalk Grating, Steel Bar Grating for Platform and Deck, Metal Mesh Walkway
Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface.
The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.
| 1 Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| 3 Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
Hot DIP galvanized steel grating has three kinds of steel gratings, there are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Cross Bar Pitch (center to center):
38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm and so on
4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
5) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.
