Galvanised Bar Construction Industrial Floor Grates For Platform
| Place of Origin | HeBei,China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001,CE |
| Model Number | 01 |
| Minimum Order Quantity | 100piece/pieces |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 5-8days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 25000piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Floor,Walkway,platform,stair Tread,bridge | Width | According To Your Size |
|---|---|---|---|
| Usage | Public Drain Area,bathroom,garge,Concrete Construction Support,balcony Ect. | Length | According To Your Size |
| High Light | galvanised bar industrial floor grates,construction industrial floor grates,platform industrial steel grating |
||
Product Description

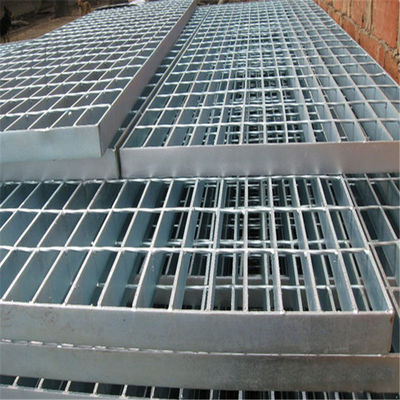

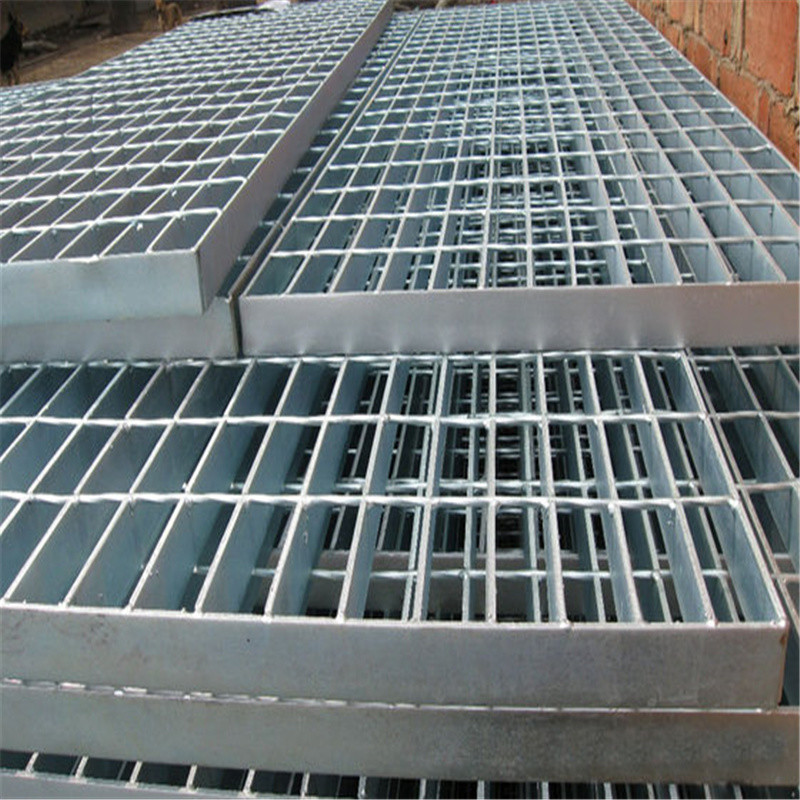

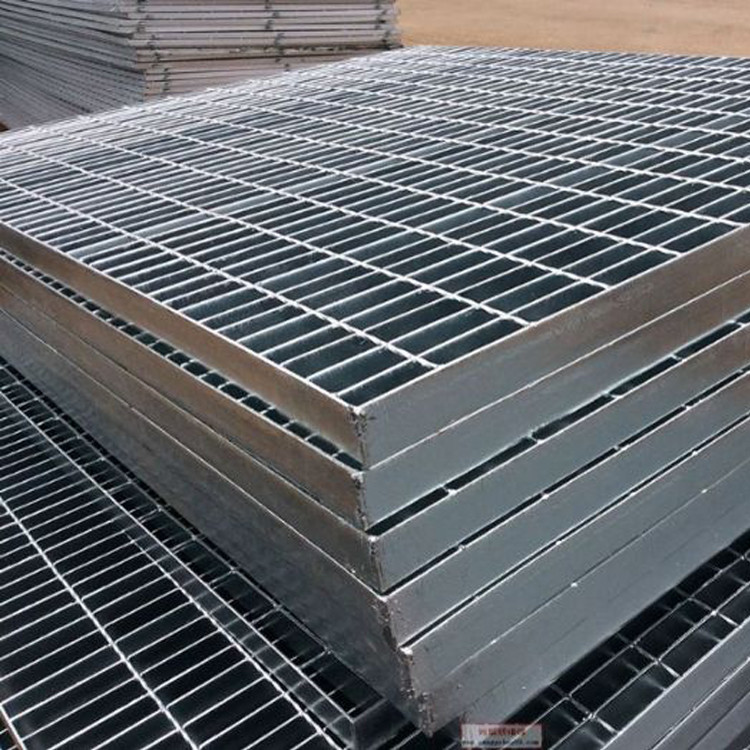

Steel Grating Platform Grating Galvanized Steel Bar Grating Construction For Platform
Product Description
The most economical choice of steel grating product. This grating is manufactured by an electro-forging
process, welding rectangular bearing bars and cross rods. This welding method provides a positive
fusion of cross rods and bearing bars. The most popular is the 19-4 spacing; with approximately 80%
open area the 19-4 spacing allows for passage of dirt, snow, liquids, air and debris.
Product Specification&Model
| NO | ||
| 1 | Item | Description |
| 2 | Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| 3 | Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 4 | cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’requirement. |
| 5 | surface treatment | Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement. |
| 6 | flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| 7 | Material | Low carbon steel |
| 8 | crossbar | 5x5, 6x6, 8x8mm |
Product Details
The products are widely used in areas such as the oil and petrochemical industry, power and steel plant, port, shipyard, water and sewage treatment, municipal construction, ceiling, etc.
| Type | Platform Floor Galvanized Stainless Steel Grating |
| Color | sliver |
| Material | Stainless Steel |
| Surface treatment | Hot Dipped Galvanized |
| Size | Customized |
| Bearing bar thickness | 3mm-10mm |
| Bearing bar width | 30mm-100mm |
| Feature | Easily assembled, durable |
Applications
1) It can be used in urben construction as drainage trench cover to drain water and keep ground dry.
2) The serrated steel gratings will be used in the port, parking lot, farmland and other places to be walk platform for pedestrian and vehicles access and passing.
3) Forge-Welding gratings also will be used for industry platform, power plant, water treatment industry, tower platform, etc.
Certificate
Features:
1) The steel grating can reduce the supportive material, investment, save workman and time.
2) It can be used in almost all applications.
3) Lightweight and economical.
4) Low maintenance cost, because the surface will be galvanized, the anti-corrosion is 15~30 times than ungalvanized.
Steel grating advantage
Corrosion resistance, Rust resistance.
Anti-slip resistance, Good air circulation.
Good drainage performance, Easy to install and uninstall.
High strength-to-weight performance, Durable and long lifespan.
