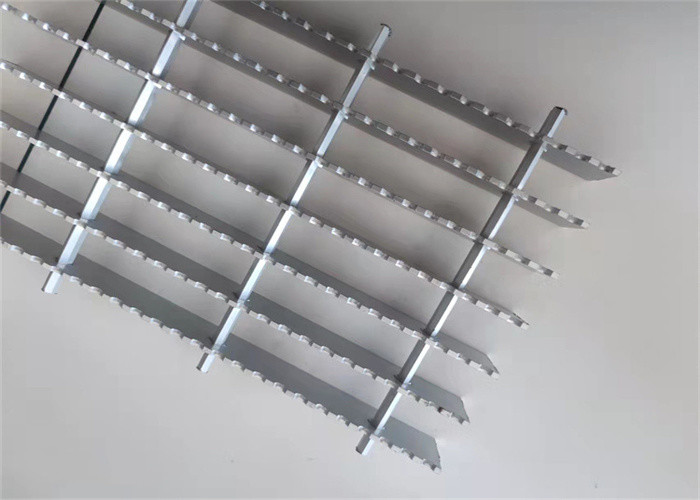

6063 T6 Material Aluminum Bar Grating Walkway Serrated Catwalk Platform

  • 6063 T6 Material Aluminum Bar Grating Walkway Serrated Catwalk Platform
  • 6063 T6 Material Aluminum Bar Grating Walkway Serrated Catwalk Platform
Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number EM-025 Material 6063 T6
Surface Finish Anodized Cross Bar Pitch 30, 40, 60, 100mm
High Light

6063 t6 material aluminum bar grating

,

aluminum bar grating serrated

,

serrated aluminum grating 6063 t6
Leave a Message
Product Description

6063-T6 Material Walkway Serrated Aluminum Grating Catwalk Platform Grating

Product Description

Aluminum bar grating is lightweight, corrosion resistant, and fully recyclable. With an unmatched strength-to-weight ratio, these products are ideal for both industrial and architectural applications.

Manufactured from ASTM B221, 6063 or 6061 alloy, aluminum grating is available in four distinct product types. Bearing bar spacings range from 19/16” (1-3/16”) to 7/16” on center and cross bars at 4” or 2” on center.





Product Type&Specification



Material Aluminum
Alloy Grade 6063, 6061, 6082
Finish Powder Coat or Anodised
Max Width 1205mm
Max Length 7600mm





6063 T6 Material Aluminum Bar Grating Walkway Serrated Catwalk Platform 0





Swaged I-Bar Aluminum Grating

Dimensions

Supported by I-shaped extruded bearing bars, swaged I-bar aluminum grating carries the same load as the swaged rectangular aluminum grating with lighter weight and less costs. In addition, the striations at the top and bottom surfaces of the I bar increase the friction and provide high slip resistance performance.

Specification
  • Bearing bar size: 1" x 1/4" to 2–1/2" x 1/4" with 1/4" increments;
  • Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16";
  • cross bar spacing (center-to-center): 4"or 2".



The picture shows the structure of swaged I bar aluminum grating with a plain surface.





Product Specifications



Aluminum grating Part Number Bearing bar size
I-Bar Swage Locked 19-SI-4
15-SI-4
11-SI-4		 (1-3/16")
(15/16")
(11/16")
I-Bar Swage Locked Close-Mesh 8-SI-4 (1/2")
Rectangular Bar Swage-Locked & Press Locked 19-SR-4,19-AP-4
15-SR-4, 15-AP-4		 (1-3/16")
(15/16")
Press-Locked Close Mesh 3-AP-4 (13/16")
Rectangular Bar Swage-Locked Close Mesh &Press-Locked Close Mesh 11-SR-4, 11-AP-4
10-AP-4
8-SR-4, 8-AP-4
7-AP-4		 (11/16")
(5/8")
(1/2")
(7/16")




Product Differences

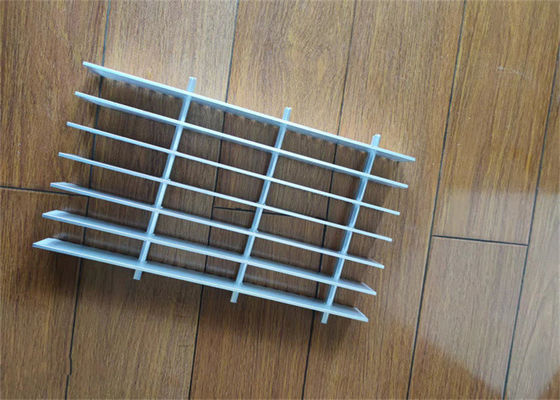

STANDARD ALUMINUM GRATING


Aluminum - Bearing Bars - 1-3/16” centers. Type 19P - Standard Bar. Type 19I - I Bar.



6063 T6 Material Aluminum Bar Grating Walkway Serrated Catwalk Platform 2

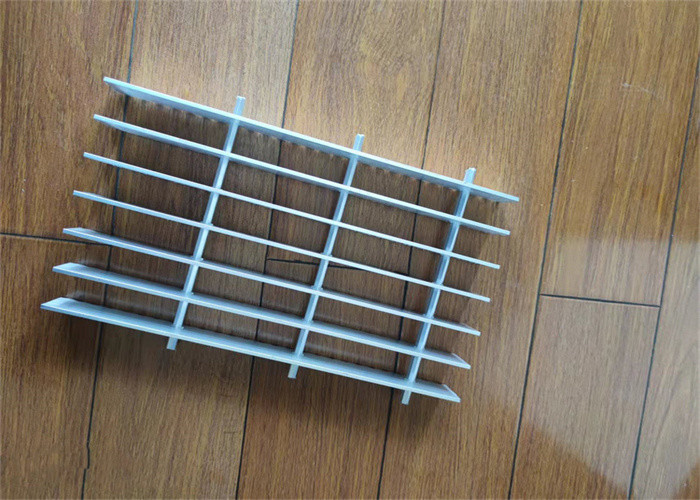

CLOSE MESH ALUMINUM GRATING



Aluminum - Bearing bars at 15/16". Type 15P - Standard Bar. Type 15I - I Bar.





6063 T6 Material Aluminum Bar Grating Walkway Serrated Catwalk Platform 3



Aluminum - ADA Compatible with 3/16” bars. Bearing bars at 11/16" centers. Type 11P - Standard Bar. Type 11I - I Bar.



6063 T6 Material Aluminum Bar Grating Walkway Serrated Catwalk Platform 4







Main Features



1. Corrosion resistance, Rust resistance.


2. Anti-slip resistance, Economical Good air circulation.


3. Good drainage performance, Easy to install and uninstall.


4. High strength-to-weight performance, Durable and long lifespan.


5. Light-weight, Versatile, anti-skidding,


6. Anti-aging, Anti-sunburn Long life, high quality for anti-skid


7. Resistance to cutting and other benefits.


8. Low Maintenance


9. Simple structure beautiful and practical
