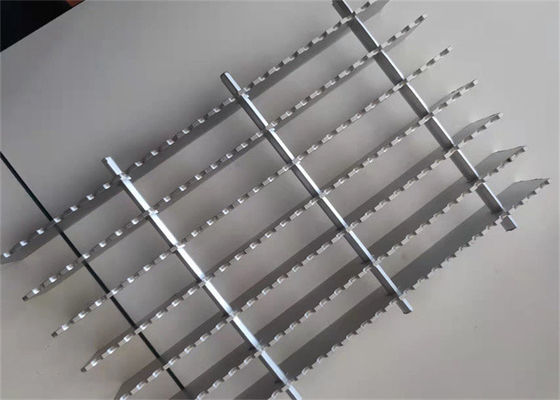

Paint Spraying 32 X 5mm Swaged Grating Serrated With Walkways

  • Paint Spraying 32 X 5mm Swaged Grating Serrated With Walkways
  • Paint Spraying 32 X 5mm Swaged Grating Serrated With Walkways
Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number EM-025 Material 6063 T6
Surface Finish Anodized Cross Bar Pitch 30, 40, 60, 100mm
High Light

paint spraying swaged grating

,

32 x 5mm swaged grating

,

serrated aluminum bar grating
Leave a Message
Product Description

Metal Building Materials Paint Spraying 32 X 5mm Serrated Aluminum Grating With Walkways



Product Type&Specification



Material Aluminum
Alloy Grade 6063, 6061, 6082
Finish Powder Coat or Anodised
Max Width 1205mm
Max Length 7600mm





Welded bar grating



Paint Spraying 32 X 5mm Swaged Grating Serrated With Walkways 0



STAIR TREADS

Stair treads come complete with a carrier plate at each end and checker plate nosing to ensure maximum visibility.

Dimensions

Supported by I-shaped extruded bearing bars, swaged I-bar aluminum grating carries the same load as the swaged rectangular aluminum grating with lighter weight and less costs. In addition, the striations at the top and bottom surfaces of the I bar increase the friction and provide high slip resistance performance.

Specification
  • Bearing bar size: 1" x 1/4" to 2–1/2" x 1/4" with 1/4" increments;
  • Bearing bar spacing (center-to-center): 1–3/16", 15/16", 11/16" and 7/16";
  • cross bar spacing (center-to-center): 4"or 2".



The picture shows the structure of swaged I bar aluminum grating with a plain surface.





Product Specifications



Aluminum grating Part Number Bearing bar size
I-Bar Swage Locked 19-SI-4
15-SI-4
11-SI-4		 (1-3/16")
(15/16")
(11/16")
I-Bar Swage Locked Close-Mesh 8-SI-4 (1/2")
Rectangular Bar Swage-Locked & Press Locked 19-SR-4,19-AP-4
15-SR-4, 15-AP-4		 (1-3/16")
(15/16")
Press-Locked Close Mesh 3-AP-4 (13/16")
Rectangular Bar Swage-Locked Close Mesh &Press-Locked Close Mesh 11-SR-4, 11-AP-4
10-AP-4
8-SR-4, 8-AP-4
7-AP-4		 (11/16")
(5/8")
(1/2")
(7/16")




Product Differences



STANDARD ALUMINUM GRATING


Aluminum - Bearing Bars - 1-3/16” centers. Type 19P - Standard Bar. Type 19I - I Bar.

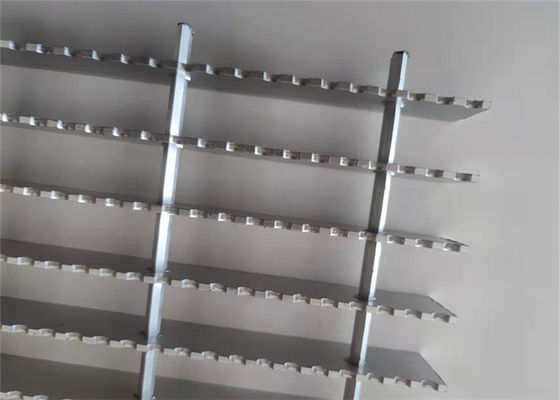

Paint Spraying 32 X 5mm Swaged Grating Serrated With Walkways 2





CLOSE MESH ALUMINUM GRATING



Aluminum - Bearing bars at 15/16". Type 15P - Standard Bar. Type 15I - I Bar.

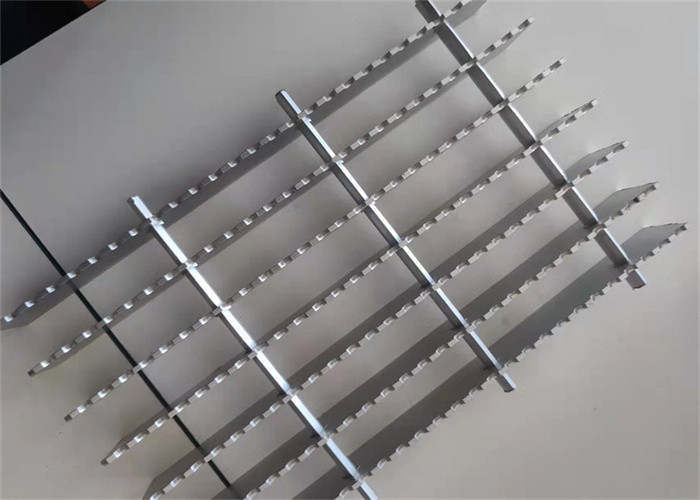

Paint Spraying 32 X 5mm Swaged Grating Serrated With Walkways 3



Aluminum - ADA Compatible with 3/16” bars. Bearing bars at 11/16" centers. Type 11P - Standard Bar. Type 11I - I Bar.

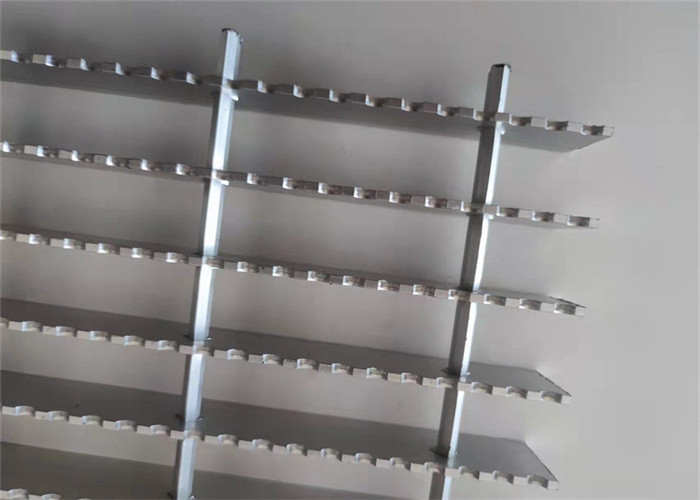

Paint Spraying 32 X 5mm Swaged Grating Serrated With Walkways 4







Main Features



1. Corrosion resistance, Rust resistance.


2. Anti-slip resistance, Economical Good air circulation.


3. Good drainage performance, Easy to install and uninstall.


4. High strength-to-weight performance, Durable and long lifespan.


5. Light-weight, Versatile, anti-skidding,


6. Anti-aging, Anti-sunburn Long life, high quality for anti-skid


7. Resistance to cutting and other benefits.


8. Low Maintenance


9. Simple structure beautiful and practical
