66x25mm Bar Stainless Steel Grating Dovetail Pressure Locked Press Locked

Place of Origin Hebei of China
Brand Name ZHUOTE
Certification ISO, SGS, CE
Model Number SG32518
Minimum Order Quantity 100 m2
Price USD 25 per m2
Packaging Details standard sea shipping package
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100000 m2 per year
Product Details
Material SS316, SS304 Product Name Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating
Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat Application Floor, Walkway, Platform, Stair Tread, Bridge
Color Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom Thickness 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm
Standard ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) Length 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand
Cross Bar Pitch 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6 Earing Bar Pitch 30mm, 30, 40, 25, On Request.
Width 1000mm, According To Your Size, 50-500MM, 600-1250mm Feature Heavy, Bright On Surface, Modern, High Strength, Light Weight
OEM/ODM Yes
High Light

66x25mm bar stainless steel grating

,

dovetail pressure locked stainless steel grating

,

ss316 stainless steel bar grating

You can tick the products you need and communicate with us in the message board.
SG32518
Leave a Message
Product Description

Dovetail Pressure Locked Grating, Stainless Steel Press Locked Grating, 66x25mm Bar Grating Steel for Walkway and Deck



Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface.

The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

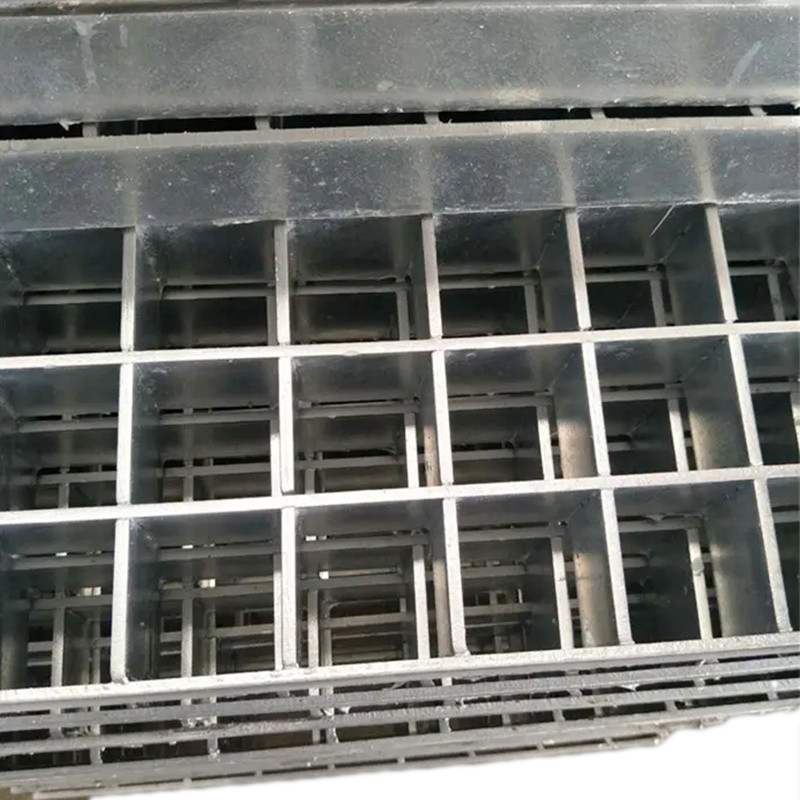

66x25mm Bar Stainless Steel Grating Dovetail Pressure Locked Press Locked 0



1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
3 Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc

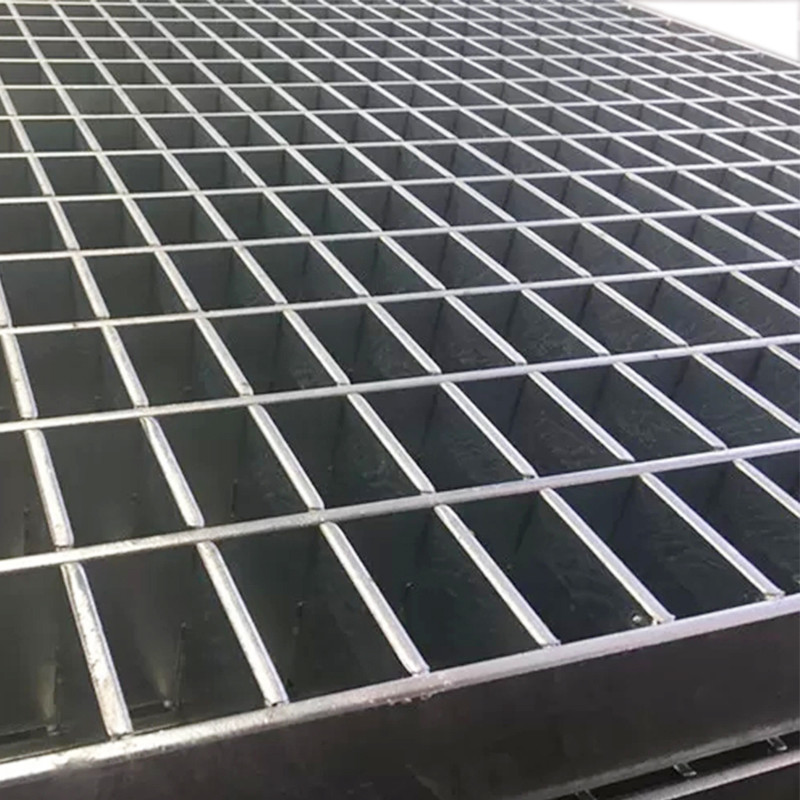

66x25mm Bar Stainless Steel Grating Dovetail Pressure Locked Press Locked 1

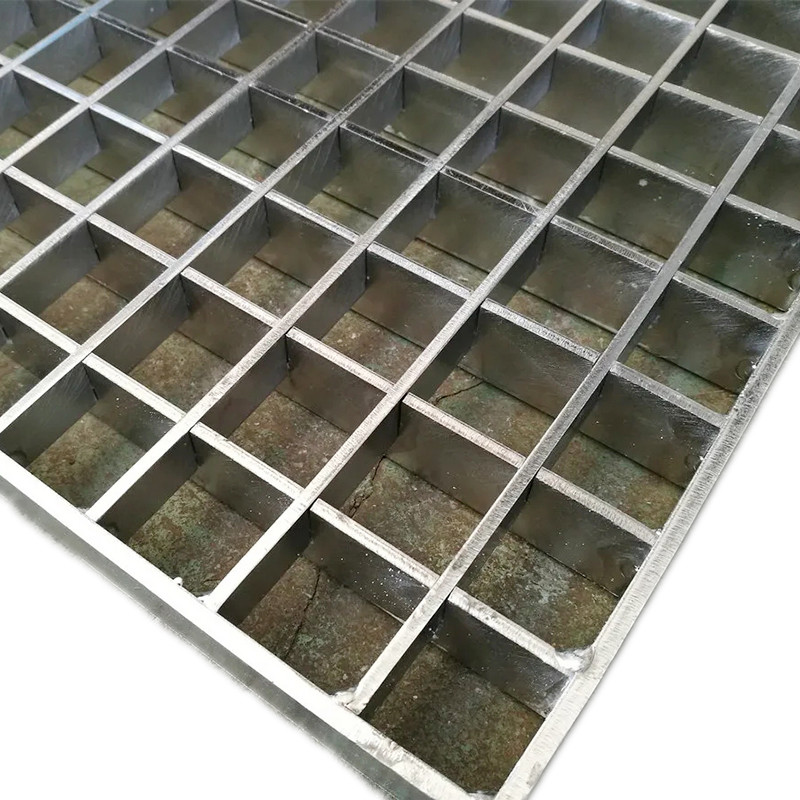

66x25mm Bar Stainless Steel Grating Dovetail Pressure Locked Press Locked 2

Hot DIP galvanized steel grating has three kinds of steel gratings, there are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.

1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

3) Cross Bar Pitch (center to center):
38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm and so on

4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel

5) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing

6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.

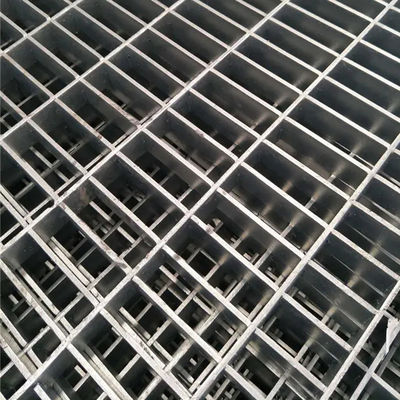

66x25mm Bar Stainless Steel Grating Dovetail Pressure Locked Press Locked 3



Heibei Zhuote Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.
