Trench Drain Cover Walkway Steel Grating For Platform Drainage
| Place of Origin | Hebei of China |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO, SGS, CE |
| Model Number | SG32520 |
| Minimum Order Quantity | 100 m2 |
| Price | USD 25 per m2 |
| Packaging Details | standard sea shipping package |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100000 m2 per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235B, Q195 | Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating |
|---|---|---|---|
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat | Application | Floor, Walkway, Platform, Stair Tread, Bridge |
| Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom | Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm |
| Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) | Length | 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand |
| Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm, 101.6 | Earing Bar Pitch | 30mm, 30, 40, 25, On Request. |
| Width | 1000mm, According To Your Size, 50-500MM, 600-1250mm | Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight |
| OEM/ODM | Yes | ||
| High Light | trench drain cover walkway steel grating,platform drainage walkway steel grating,platform drainage galvanised walkway grating |
||
You can tick the products you need and communicate with us in the message board.
| SG32520 |
|---|
Product Description
Trench Drain Cover Steel Grating for Walkway Platform Drainage Grating

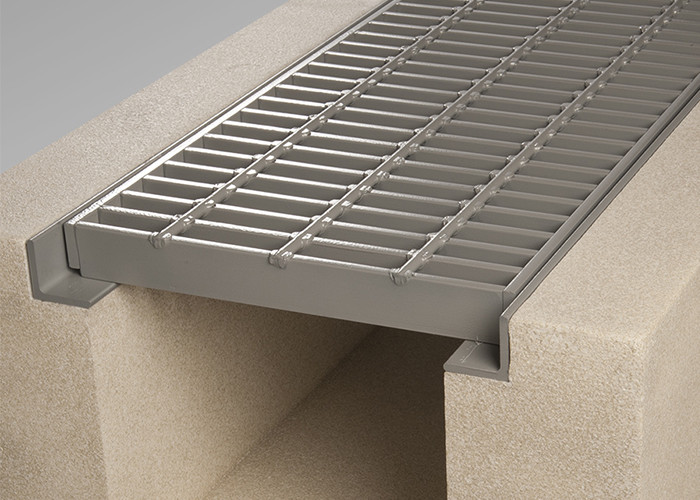

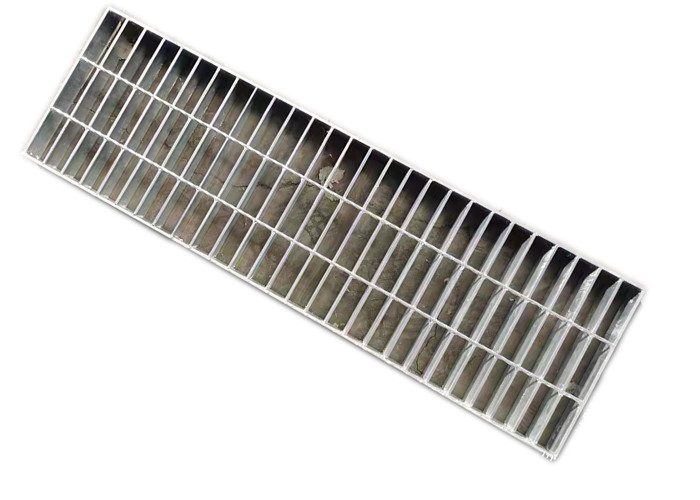

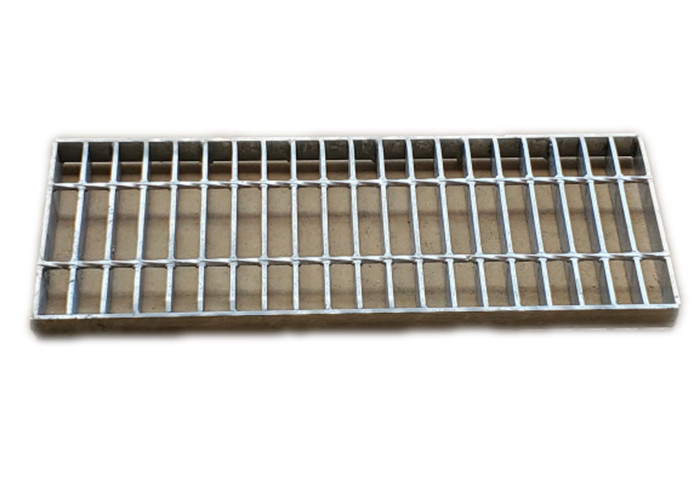

Trech cover grates are an economical solutions for covering driveway trenches or floor openings that have an existing support ledge. Made from steel bar grating, drain grates are perimeter banded, fully welded for ultimate strength. Lengths are standard 36 inch for easy installation or removal for cleaning, other size can be made as your request. Also available in Galvanized Steel Grates, Stainless Steel Grates and Aluminum Grates.
Applications: Driveway Trenches, Drainage Ditches, Manhole Covers, Sidewalk Drainage, Parking Lots Grates, Tree Grates, etc.
Specifications: GALVANIZED STEEL, 3/16" thick bar X 1" Depth X 12" Wide X 36" Long. Minimum opening of 12-1/8" required. 3500 lb Rated Capacity - Light & Medium Vehicle Traffic
| 1 Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| 3 Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |

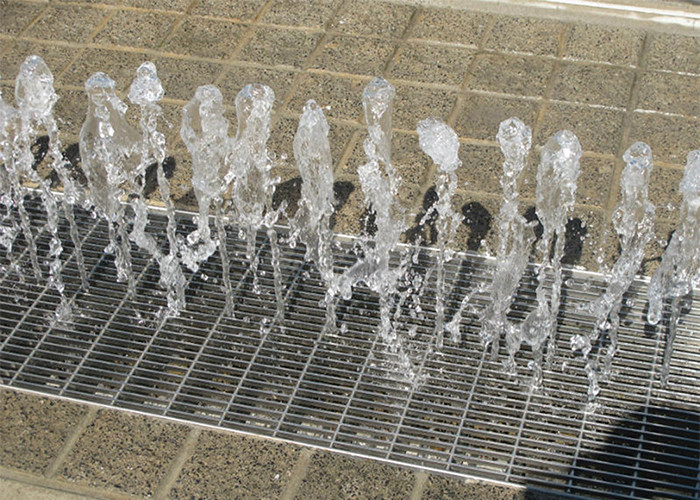

Steel grating is widely used on the ground of passageway, roadway, courtyard and buildings as the drainage trench grating, pipeline trench cover, underground passage cover, air shaft cover, light well cover and inspection well cover. Steel grating trench cover is commonly made of fixed frame and moving steel grating plate. For further security and firmness, we can supply fasteners and anti-theft device.
