Racking Pallet Shelves Galvanized Steel Grating Q235
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Q235 | Surface Treatment | Hot Dipped Galvanized |
---|---|---|---|
Application | Steel Structure | Product Name | Hot Dip Galvanized Anti Slip Bar Steel Grating Weight |
Color | Silver | Type | Plain Bar Grating |
Length | 2200mm | Standard | YB/T4001 |
High Light | racking galvanized steel grating,galvanized steel grating q235,pallet shelves galvanized grating |

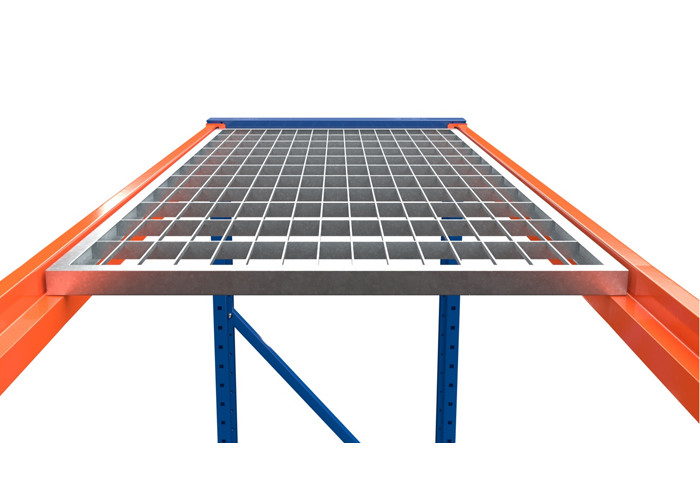

Hot dipped galvanized racking grating pallet shelves grating
This type products can be positioned across pallet racking beams to act as a shelf within the racking. Due to their strong construction from press locked steel strips they can be used for both light and heavy duty operations.
Designed to hold in place once positioned on the racking, the grating module provides a secure shelf for any loaded materials.
Details:
Act as shelf within racking
Capable of light or heavy duty applications
Not easy to dislodge once in place
A hot dip galvanised finish makes them ideal for use in high humidity and external operations, while a sizeable cross-section also makes them suited for ambient warehousing, chill stores and freezers as they permit the free flow of air to maintain temperature.
Their grating makes them a safer option than wooden decking as they allow the adequate dispersion of sprinkler water within the system.
Suitable for use in high humidity and external environments
Can be used in ambient warehousing, chill stores and freezers
Grating modules’ strong construction makes them capable of storing pallets within the boundaries of the beams they are resting on (the pallets do not need to rest on the beams themselves unlike steel, wooden or chipboard shelving).
They can also act as a safety guard over tunnel bays to prevent falling objects causing injury or obstruction.
Bearing bar depth and thickness
|
30x5mm |

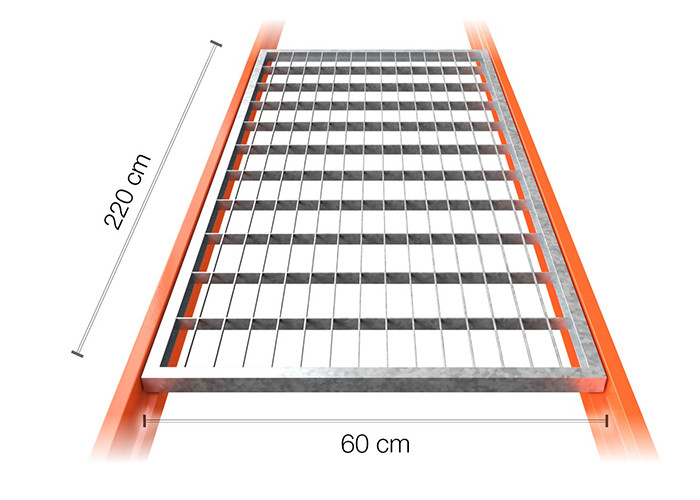

Grating size
|
2200x600mm width |
Bearing bar and cross bar spacing
|
30x50mm |
