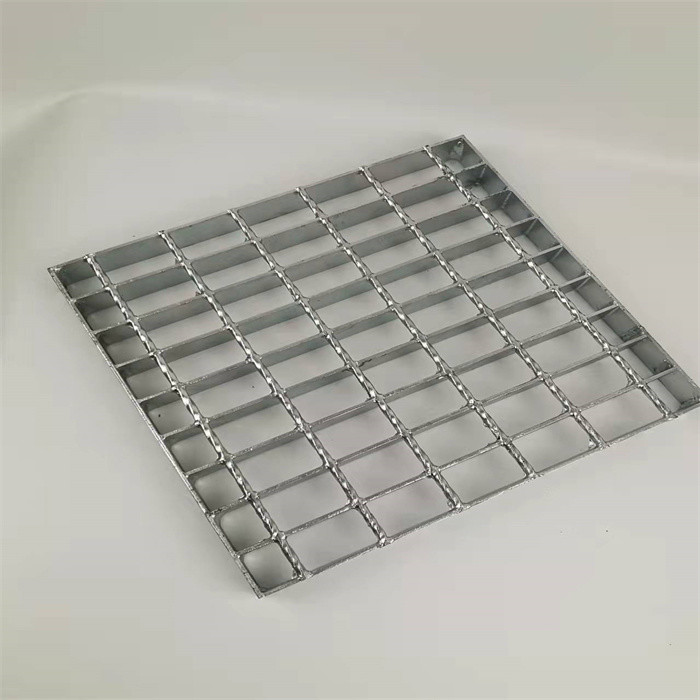

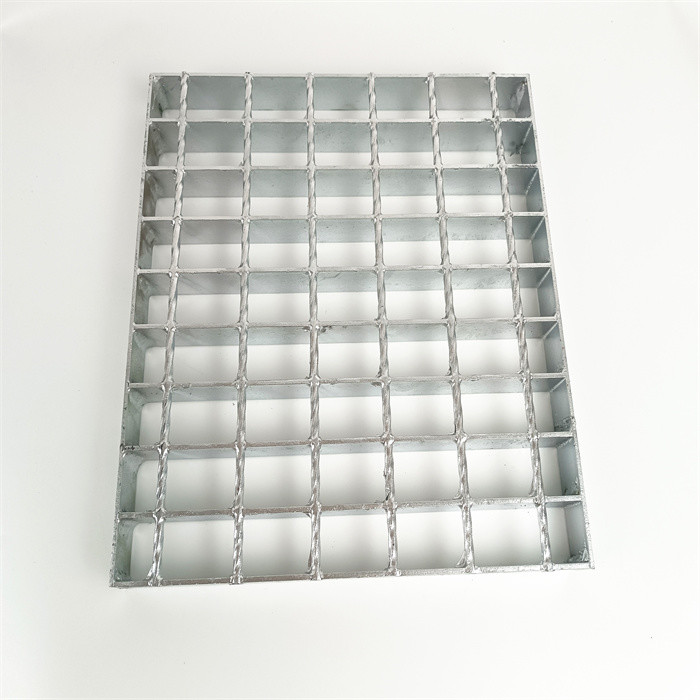

Hot Dipped Galvanized Industrial Steel Grating For Trench Cover
| Place of Origin | HeBei,China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001,CE |
| Model Number | 01 |
| Minimum Order Quantity | 100piece/pieces |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 5-8days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 25000piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Floor,Walkway,platform,stair Tread,bridge | Width | According To Your Size |
|---|---|---|---|
| Usage | Public Drain Area,bathroom,garge,Concrete Construction Support,balcony Ect. | Length | According To Your Size |
| Highlight | industrial steel grating hot dipped galvanized,trench cover industrial steel grating,hot dipped galvanized industrial metal grate |
||
Product Description
Building Material 30*5mm Hot Dipped Galvanized Plain Welded Steel Grating For Trench Cover
Product Description
Steel grating is usually provided with bare steel (no finish), painted or other special paint finishes, or hot dip galvanized. Aluminum products are commonly supplied mill finish but they are also available with optional chemically cleaned or anodized finishes. Due to discoloration that occurs during welding and fabrication, Stainless Steel grating products typically require secondary cleaning.
Abrasive blasting, and passivation provide a uniform and clean surface. All grating products can be provided with specialty finishes including enamel, epoxy paints or powder coating. When considering specialty finishes, consultation with the coating manufacturer is essential.
Product Specification&Model
| Type | Platform Floor Galvanized Stainless Steel Grating |
| Color | sliver |
| Material | Stainless Steel |
| Surface treatment | Hot Dipped Galvanized |
| Size | Customized |
| Bearing bar thickness | 3mm-10mm |
| Bearing bar width | 30mm-100mm |
| Feature | Easily assembled, durable |
Banding
As manufactured, grating panels are provided with open ends. Optional trim banding, a metal flat bar welded to the open ends of the panel, provides additional transverse stiffness and a finished architectural appearance. Banding should be specified for all removable grating panels, the closed end of a banded panel providing additional worker safety during the removal and replacement process.
Gratings subject to vehicular loads should always be specified as banded. In these applications, the band bar helps reduce impact stresses by transferring loads to adjacent bearing bars and further resists deformation caused by repetitive traffic patterns on open end gratings.
Trench banding, where the band bar is elevated above the bottom of the bearing bars, is appropriate for drainage applications. The elevated band bar allows for efficient drainage and will not trap liquids between the band bar and the grating support.
Load banding, where each bearing bar is welded to the band bar, helps distribute load throughout the grating panel. See Banding Weld Standards for specific welding practices.
Application
Galvanized grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.
- Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
- Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
- Widely used in the petrochemical industry, power plants, waterworks, sewage treatment plants, municipal works, sanitation projects in areas such as platforms, corridors, bridge, ditch cover, covers, ladders, fences, rails, and so on.
Certificate
Features:
- High strength and load capacity.
- Anti-slip surface.
- Corrosion resistance.
- Good drainage function.
- Easy to install and maintain.
Packing:
- Strap packaging: generally used in neat steel grating.
- Screw rod fixation: Using four screws through the steel grating aperture, locking screw packaging method.
- Pallet packaging: generally for export packing.
