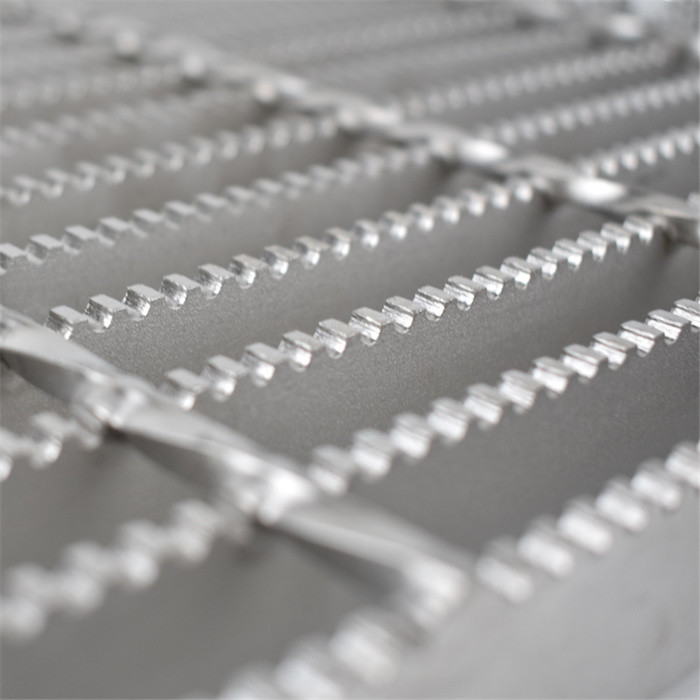

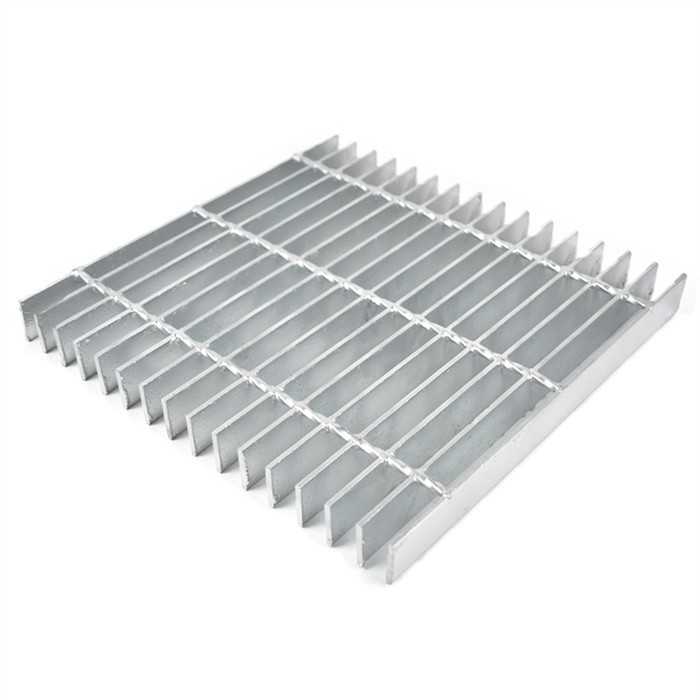

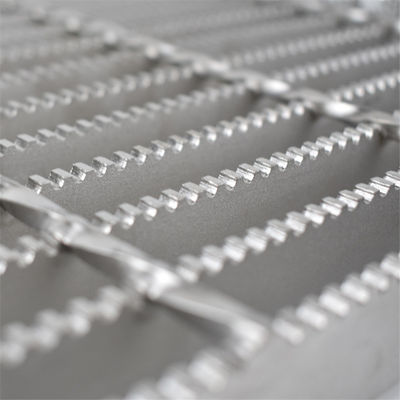

Bar Astm A123 Serrated Steel Grating Galvanized Feature Metal Floor
| Place of Origin | HeBei,China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001,CE |
| Model Number | 01 |
| Minimum Order Quantity | 100piece/pieces |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 5-8days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 25000piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | Customized | Color | Silver Or As Your Requirement |
|---|---|---|---|
| Grade | Q235 Q345,low Carbon Steel And Stainless Steel | Material | Steel,Q235 |
| High Light | astm a123 serrated steel grating,galvanized feature bar serrated steel grating,astm a123 serrated galvanized grating |
||
Product Description
Metal Building Material Hot Dipped Galvanzied Closed End Serrated Steel Grating For Bad Environment
Product Description
serrated steel grating is an ideal product for wet,slippery situation where corrosion resistance is vital.The mild steel gratings are hot dipped galvanized in the galvanizing bath.The galvanizing bath has got 7 tank surface cleaning process, the purity of the zinc used for hot dipped galvanizing shall be 99.95 % pure. The galvanized coating shall be as per IS-3202/IS–4759/IS–2629/IS–2633/IS–6745,ASTM–A-123 or equivalent to international standards.
Specification
| Material | Low Carbon Steel/Stainless Steel |
| bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| crossbar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder-coated, pickling, electrolytic polishing, or as customers’ requirement. |
Product process
Workshop
Advantage
-No corrosion traps around joints
-High strength to weight ratio
-Allows shaping without loss of strength
-Available plain or serrated
-Allows passage of heat, light, water, and ice.
Product Application
| 1 | flooring steel gratings |
| 2 |
stair treads |
| 3 |
sun shades |
| 4 |
drain covers |
| 5 |
security screen |
| 6 |
manhole covers |
| 7 |
mezzanine flooring |
| 8 |
earth mats |
| 9 |
shelving |
| 10 |
Stanchions (hand rails) |
| 11 |
trench covers |
| 12 |
Truck platforms |
Company Information
Heibei Zhuote Wire Mesh Products Co., Ltd. is a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products.
Our steel grating goods have various kinds with different materials, the main products are high, middle, and low - carbon steel, stainless steel, aluminum steel grating. And have various styles, for example, platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating, and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.
FAQ
1.Should the customer pay for the sample, How much is it? All samples are free. but you may need to provide courier fees.
2.Should the customer pay the delivery fee, How much is it? For the delivery fee, many samples are being requested to be sent, so we must get a delivery fee. If you tell me to use the appointed Express, you will give me your express account or you will pay according to the Express. If you do not request, I will choose a cheap one in China.
3. Lead time?
7-10 days per container, Challenge the industry's fastest time!
4. I need special material, can you help?
Yes, high standards material and high zinc thick can be chosen.
5. How can I get a quote?
Contact us with specification, size, quantity, and your port, then a fast quote with being sent.
6.How is your payment term? Generally, our payment term is T/Y 30% in advance, the balance to be paid before loading or against the B/L copy. Other payment terms can be discuss
7.How about the after-sale service?
1)We will always keep the quality the same with the same and if there is something with the quality, we will make compensation for our customers. 2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery. 3)We will trace the goods from the production to selling, we will solve the problems in the selling for our customers.
