Q235 Hot Dip Galvanized Serrated Steel Grating Bar Walkway Platform

Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month
Product Details
Cross Bar Pitch As Customers' Requirement Size Customized
Color Silver Or As Your Requirement Surface Treatment Hot Dipped Galvanized,Galvanized,hot Dip Galvanized
Type Serrated Bar Grating Grade Q235 Q345,low Carbon Steel And Stainless Steel
High Light

serrated steel grating q235

,

walkway platform serrated steel grating

,

hot dip galvanized serrated bar grating

Leave a Message
Product Description

Galvanized Steel Driveway Grating Metal Serrated Bar Steel Grating

Product Description

SERRATED SURFACE

When the walking surface of bar gratings are subject to the accumulation of moisture or other slippery substances, the optional serrated surface should be considered. Unlike rectangular mesh gratings where the bearing bars are typically constructed with the serrated surface, the standard method of manufacture for riveted gratings is to serrate the crimped cross member. When the grating is assembled, these crimp bars are allowed to project slightly above the top surface of the bearing bars to provide a superior unidirectional skid resistant surface. Environments particularly prone to unsafe walking conditions can be further specified as 100% serrated where both the bearing bars and the crimp bars are provided with serrations.

Riveted Gratings


Specification

Serrated steel grates, also know as welded steel bar grating, the most strong and durable metal grating products. They are made from the mild carbon steel or stainless steel materials. We provide a full solution of 19-w-4 bar grating, press locked grating,heavy duty grating, steel stair treads,plank gratings,safety grating, trench cover,etc. All the gratings are extremely strong and durable for all the bearing application. And all grating products are fully recyclable.



Material Low Carbon Steel/Stainless Steel
bearing bar size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
bearing bar pitch 20,25,30,32.5,34.3,40,50,60,62,65mm
bearing bar type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
crossbar size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
surface treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder-coated, pickling, electrolytic polishing, or as customers’ requirement.


Product parameter

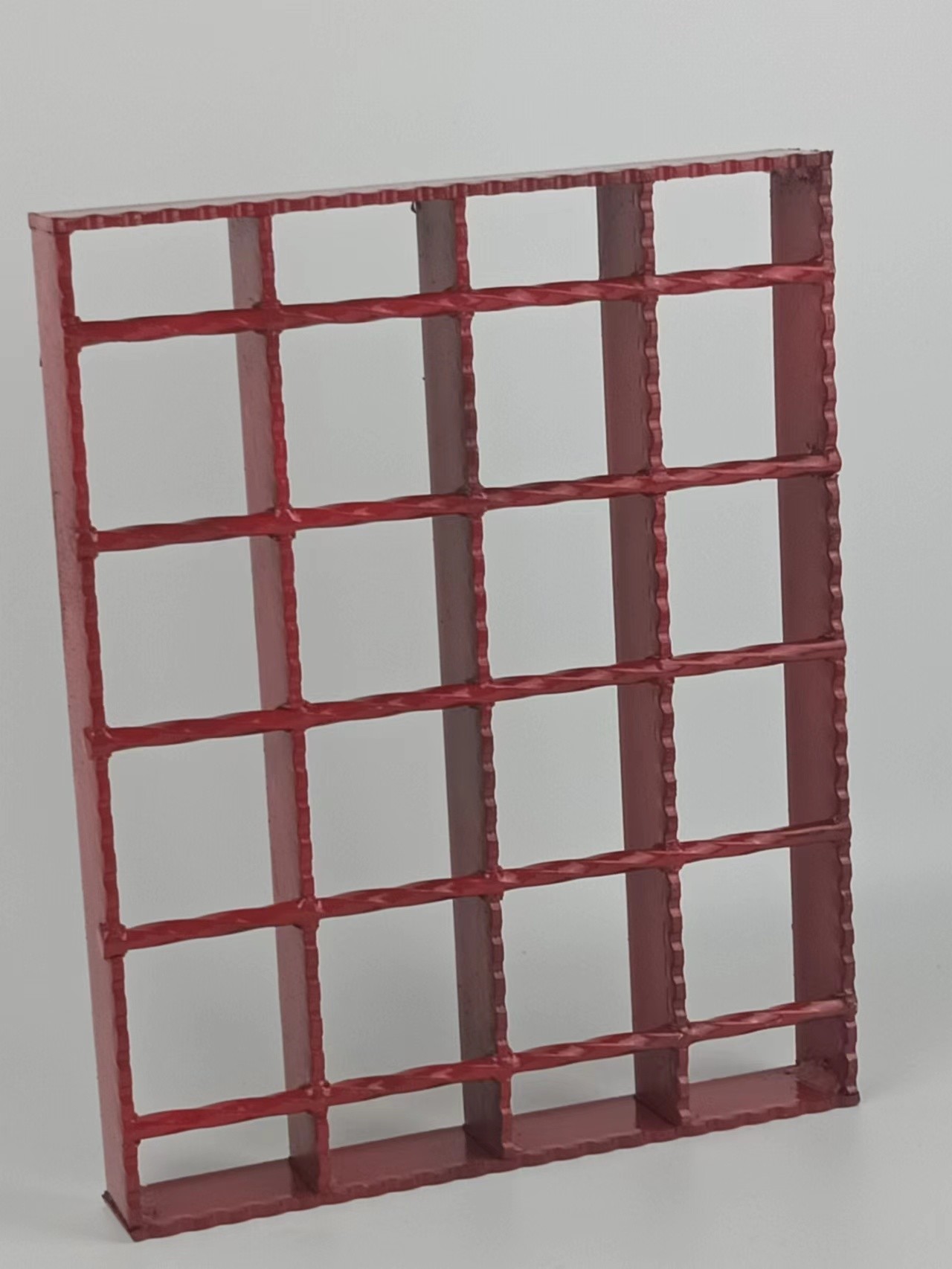

Q235 Hot Dip Galvanized Serrated Steel Grating Bar Walkway Platform 1


 Product Process

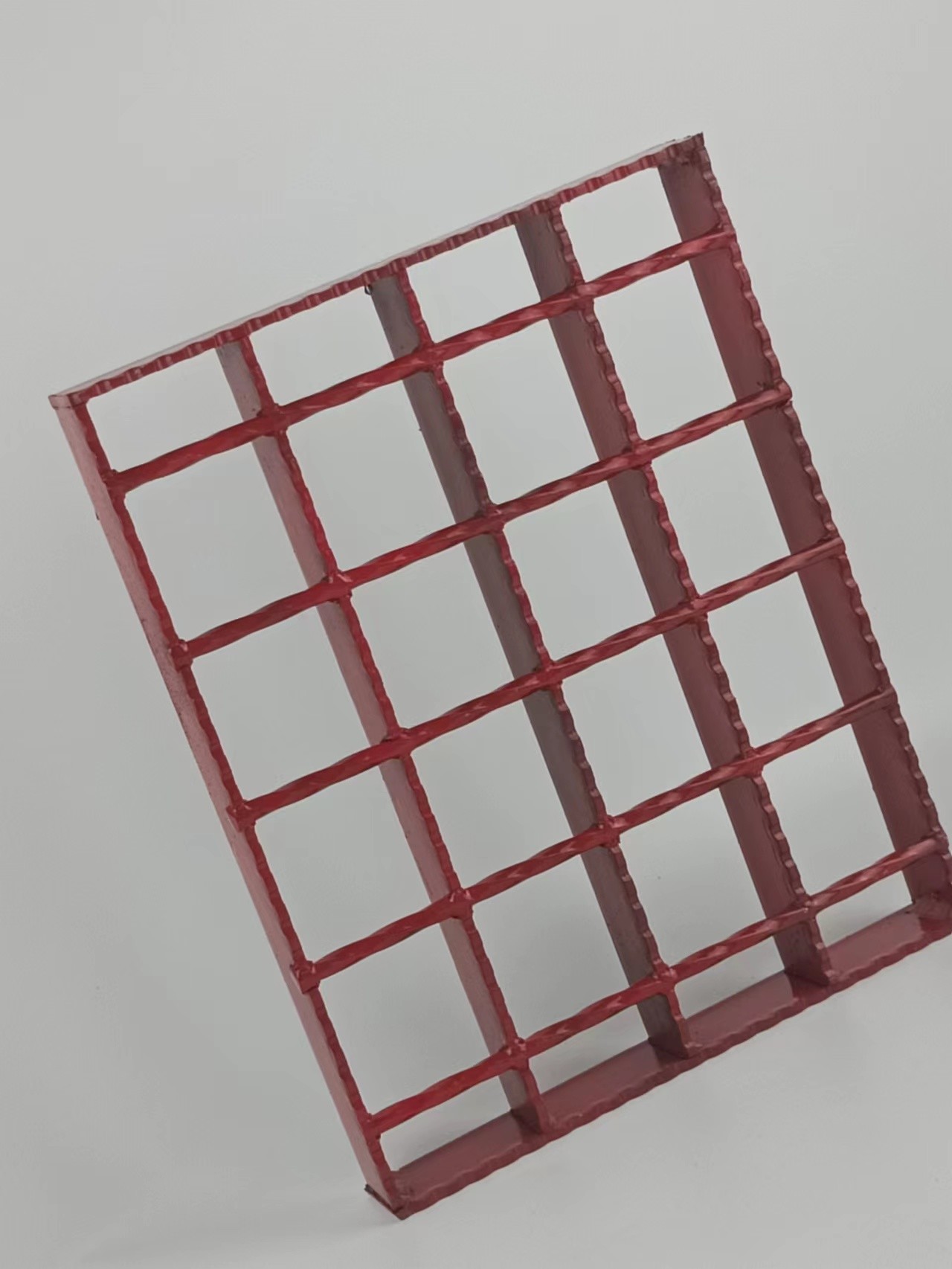

 Q235 Hot Dip Galvanized Serrated Steel Grating Bar Walkway Platform 2




Product  Application


1 Steel bar grating airfield landing mats
2

Steel bar grating airplane unloading ramps

3

Steel bar grating highway bridge decking

4

Steel bar grating sidewalk grates

5

Steel grating platforms

6

Steel bar grating vault covers

7

Steel bar grating ramps

8

Steel bar grating docks

9

Industrial flooring

10

Off-shore steel drilling rig platforms

11

Steel grating covered trenches

12

Steel grating food processing







FAQ



1.Should the customer pay for the sample, How much is it? All samples are free. but you may need to provide courier fees.


2.Should the customer pay the delivery fee, How much is it? For the delivery fee, many samples are being requested to be sent, so we must get a delivery fee. If you tell me to use the appointed Express, you will give me your express account or you will pay according to the Express. If you do not request, I will choose a cheap one in China.

3. Lead time?
7-10 days per container, Challenge the industry's fastest time!

4. I need special material, can you help?
Yes, high standards material and high zinc thick can be chosen.

5. How can I get a quote?
Contact us with specification, size, quantity, and your port, then a fast quote with being sent.

6.How is your payment term? Generally, our payment term is T/Y 30% in advance, the balance to be paid before loading or against the B/L copy. Other payment terms can be discuss

7.How about the after-sale service?
1)We will always keep the quality the same with the same and if there is something with the quality, we will make compensation for our customers. 2)We will suggest our packing and take charge in our packing, we will keep the goods safe in the delivery. 3)We will trace the goods from the production to selling, we will solve the problems in the selling for our customers.
