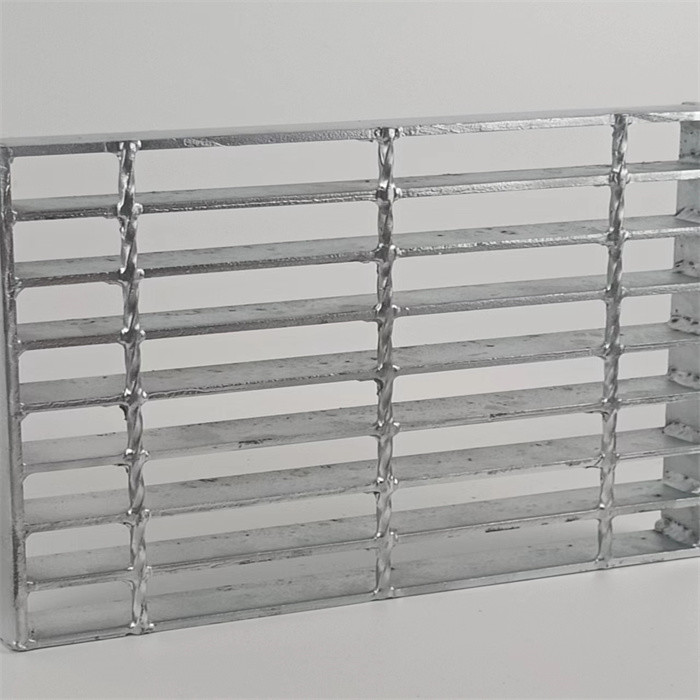

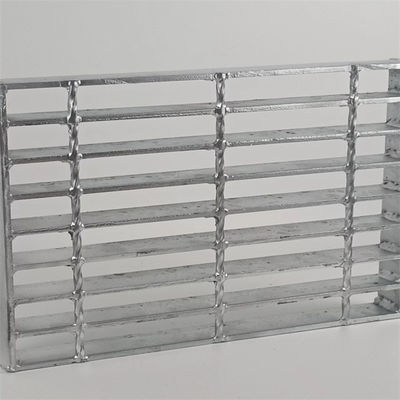

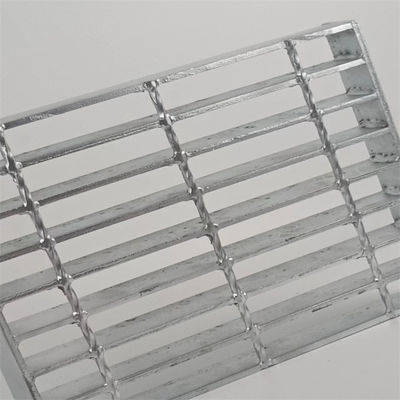

Galvanized Steel Grating Walkway Platform 32*5mm Steel Grating For Powder Factory
Welded Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.
Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
|2||Bearing bar||20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.|
|3||Bearing bar pitch ||25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.|
|4||cross bar pitch ||40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’requirement.|
|5||surface treatment||Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.|
|6||flat bar type||Plain, Serrated (tooth-like), I bar (I section)|
|7||Material||Low carbon steel|
|8||crossbar||5x5, 6x6, 8x8mm|
The products are widely used in areas such as the oil and petrochemical industry, power and steel plant, port, shipyard, water and sewage treatment, municipal construction, ceiling, etc.
|Type||Platform Floor Galvanized Stainless Steel Grating|
|Surface treatment||Hot Dipped Galvanized|
|Bearing bar thickness||3mm-10mm|
|Bearing bar width||30mm-100mm|
|Feature||Easily assembled, durable|
Our steel gratings have been widely used in many industrial projects and municipal construction, such as refinery plants, power plants, chemical plant, offshore drilling platforms, maintenance platforms, water treatment plants, drainage systems, minefield fields, etc.
Steel grating advantage
1. Extended Service Life:
Galvanized steel gratings can last for more than 30 years, even when exposed to the most corrosive environment.
2. Maintenance Costs:
Its maintenance costs are relatively low because it doesn't need painting and further maintenance.
3. Scratch Protection:
Galvanized steel grates are protected from scratches or abrasion when they come into physical contact with machinery or footfall.
This grating could be applied to any structure of any shape and size.
