Painted Side Walkway Industrial Steel Grating ZT302/30/50

  • Painted Side Walkway Industrial Steel Grating ZT302/30/50
  • Painted Side Walkway Industrial Steel Grating ZT302/30/50
  • Painted Side Walkway Industrial Steel Grating ZT302/30/50
Place of Origin Anping,china
Brand Name TT
Certification ISO 9000-2015
Model Number ZT302/30/50
Minimum Order Quantity 3 tons
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10 work days
Payment Terms L/C T/T
Supply Ability 100 TONS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Paint Steel Grating Grating Standard YB/T4001-2007
Raw Material Q235/S235jr Surface Treatment Painting/non Treatment
Size As Per Drawing,commoned 32*5 Packing Wooden Or Steel Pallet
Highlight

painted industrial steel grating

,

side walkway industrial steel grating

,

driveway serrated steel bar grating
Leave a Message
Product Description

Painted Or Galvanized Heavy Duty Steel Grating , 555 / 40 /100 For Trench Cover


Description:



Painted steel bar grating is a series of carbon steel bearing bars joined to perpendicular cross bars at various intervals to form a load-bearing panel finished with one shop coat of paint.



The paint protects the finished grating product during transit while increasing its visibility, which can reduce on-the-job accidents.



Our business export more than 10years as a premium manufacturer and supplier of metal flooring and allied products in China.



We provides cost effective high quality flooring and safety products solutions, either fabricated to exact project specifications or standard products available immediately.



Steel Grating Specification:



No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

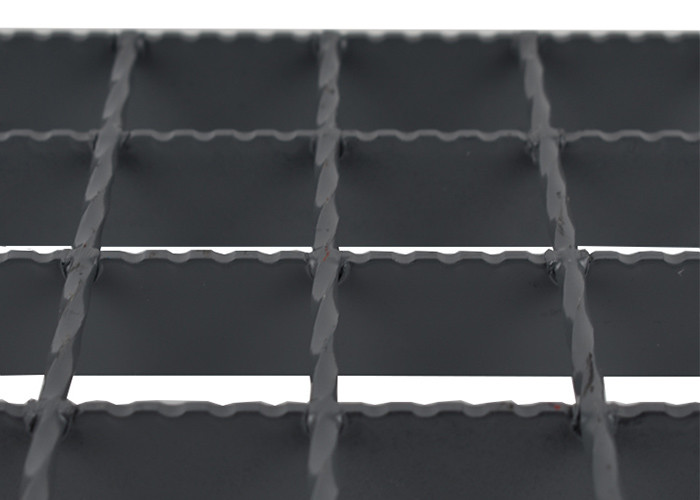

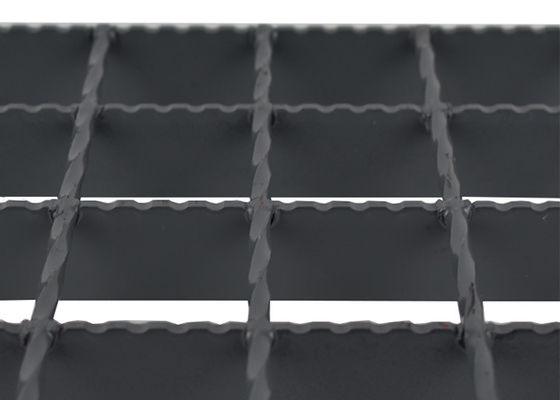

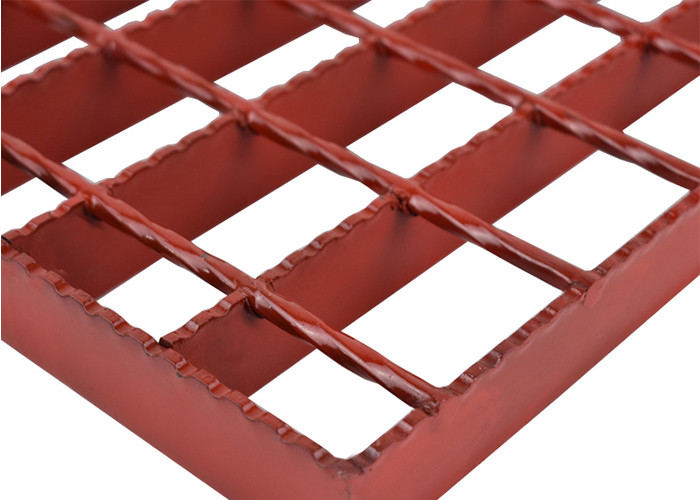

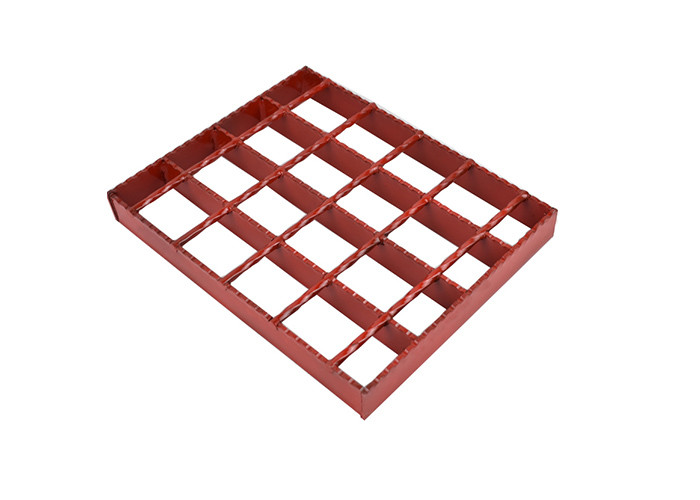

Grating Picture:

Painted Side Walkway Industrial Steel Grating ZT302/30/50 0
