Q235 Catwalk Steel Bar Grating Hot Dipped Galvanized

Place of Origin Anping,china
Brand Name TT
Certification ISO 9000-2015
Model Number TT-1
Minimum Order Quantity 3 tons
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10 work days
Payment Terms L/C T/T
Supply Ability 100 TONS/DAY
Product Details
Material Steel,Q235,q235 Carbon Steel Surface Treatment Hot Dipped Galvanized
Product Name Industrial Floor Steel Grating With Long Time Type Plain Bar Grating
Application Platform Standard ISO9001,YB/T 4001.1-2007
High Light

q235 steel bar grating

,

hot dipped galvanized steel bar grating

,

driveway serrated galvanized steel grating

Leave a Message
Product Description

32*3 Flat Bar Steel Grating Hot Dip Galvanized Steel Driveway Grating



Welded steel grating is one of the most commonly used steel grating, also called metal open bar grating. Welded steel grating is made of carbon steel or stainless steel. Welded steel grating has anti-slip surface, corrosion resistance, good drainage function, high strength and load capacity. So it is widely used as walkway, stair, fence, shelf, ceiling and floor in many places.



Applications of Welded Steel Grating:

  • Platform services in industrial and energy construction.
  • Walkway of bridges and transitions.
  • Shelf of factory and supermarket.
  • Ceiling of factory, house and hall.
  • Gully and well cover of street and huge yard.
  • Fence of balcony, factory and playground.
  • Floor of many places.



Welded Steel Bar Grating Specification:



No. Item Detailed Description
1 Bearing Bar 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self coloures, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

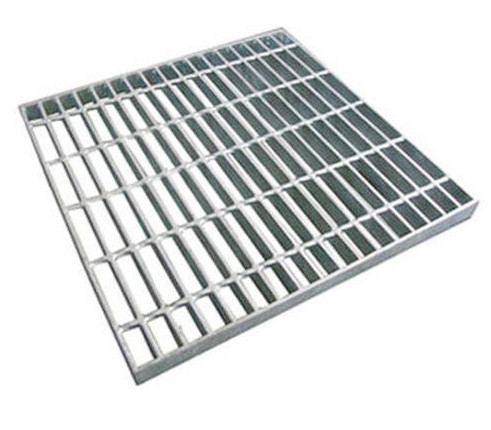

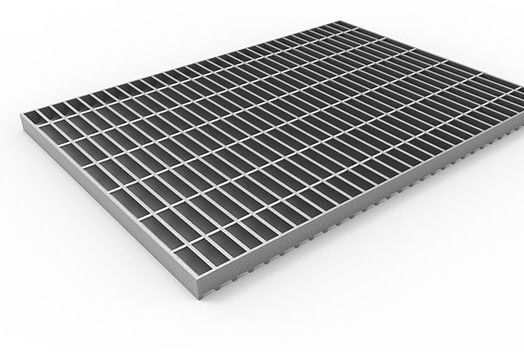

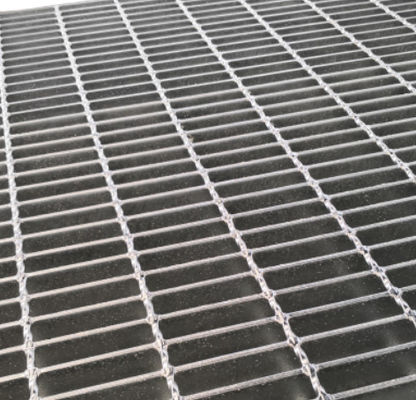

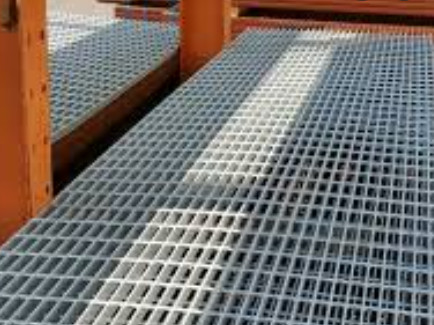

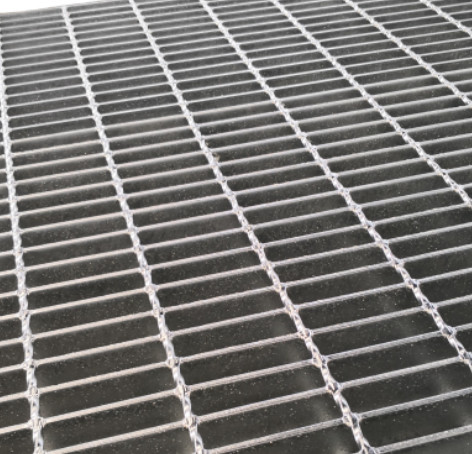

Metal Grate Picture:

Q235 Catwalk Steel Bar Grating Hot Dipped Galvanized 0Q235 Catwalk Steel Bar Grating Hot Dipped Galvanized 1
