Galvanized Metal Bar Hdg Steel Grating For Construction And Sidewalk
| Place of Origin | Anping,china |
|---|---|
| Brand Name | TT |
| Certification | ISO 9000-2015 |
| Model Number | TT-1 |
| Minimum Order Quantity | 3 tons |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 3-10 work days |
| Payment Terms | L/C T/T |
| Supply Ability | 100 TONS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel,Q235,q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized |
|---|---|---|---|
| Product Name | Industrial Floor Steel Grating With Long Time | Type | Plain Bar Grating |
| Application | Platform | Standard | ISO9001,YB/T 4001.1-2007 |
| Highlight | construction hdg steel grating,serrated hdg steel grating,driveway galvanized serrated bar grating |
||
Product Description
Building Material Hot Dipped Galvanized Steel Grating For Trench Cover Or Foot Plate
Platform Channel Gratings are made of aluminum or steel alloy bar structure panels with big bar spacing and strong ability of anti-side shocking. Can be supplied with checkered plate shielding, installation connectors and other accessories.
Platform Steel Gratings are new building materials used in construction of power plants, boilers, shipbuilding, petrochemical, chemical and general plant room, municipal construction and other industries. The steel bar grating platform structures enjoy good air and light ventilation, non-slip property, good bearing capacity, easy cleaning and installation.
Platform Gratings are universally used in most general industrial plants as well as commercial buildings, as walkways, platforms, safety barriers, drainage covers and ventilation grates. Welded Steel Bar Grating is the most popular of all grating platform types due to its strength, cost-efficient production and ease of installation.
Welded Steel Bar Grating Specification:
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | ||
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc | ||
| 3 | Cross Bar Pitch | 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self coloures, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
| UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |

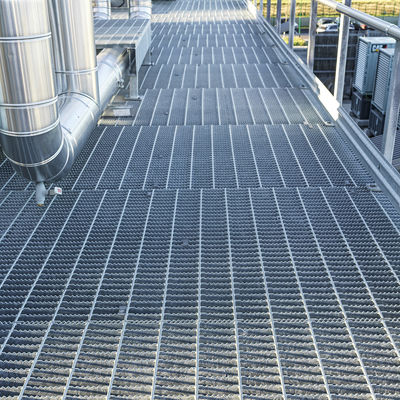

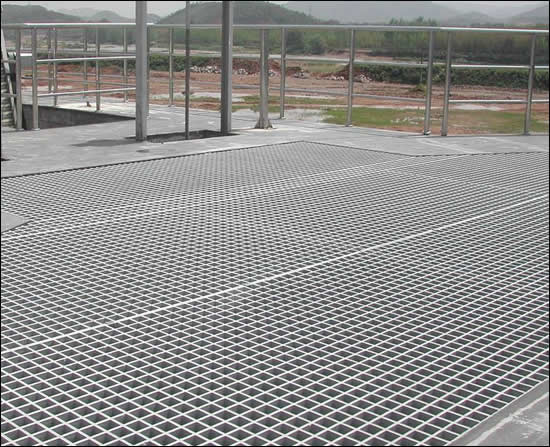

Metal Grate Picture:
