Carbon Hot Dipped Galvanized Grate For Driveway Drainage

Place of Origin Anping,china
Brand Name TT
Certification ISO 9000-2015
Model Number TT-1
Minimum Order Quantity 3 tons
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10 work days
Payment Terms L/C T/T
Supply Ability 100 TONS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel,Q235,q235 Carbon Steel Surface Treatment Hot Dipped Galvanized
Product Name Industrial Floor Steel Grating With Long Time Type Plain Bar Grating
Application Platform Standard ISO9001,YB/T 4001.1-2007
High Light

carbon galvanized grate for driveway drainage

,

serrated galvanized grate for driveway drainage

,

driveway steel serrated bar grating

Leave a Message
Product Description

Building Material Hot Dipped Galvanized Steel Grating For Trench Cover Or Foot Plate



Galvanized steel gratings have a glossy look and finish. It is ideal for industrial purposes because of its advantages. Here are some benefits of galvanized steel gratings:

  1. Extended Service Life:
    Galvanized steel gratings can last for more than 30 years, even when exposed to the most corrosive environment.
  2. Maintenance Costs:
    Its maintenance costs are relatively low because it doesn't need painting and further maintenance.
  3. Scratch Protection:
    Galvanized steel grates are protected from scratches or abrasion when they come into physical contact with machinery or footfall.
  4. Adaptability:
    This grating could be applied to any structure of any shape and size.



Welded Steel Bar Grating Specification:



No. Item Detailed Description
1 Bearing Bar 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self coloures, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

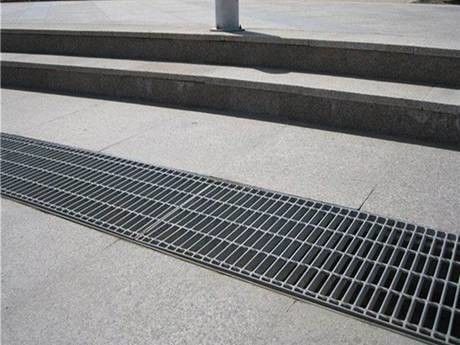

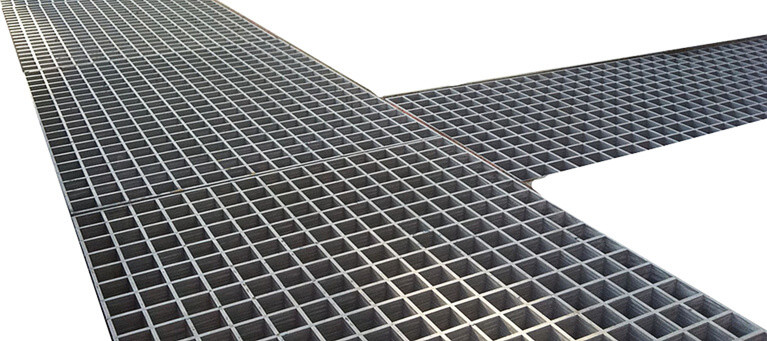

Metal Grate Picture:

Carbon Hot Dipped Galvanized Grate For Driveway Drainage 0
