Rooftop Safety Walkway Steel Grating Hot Dip Galvanized Serrated
| Place of Origin | Anping,china |
|---|---|
| Brand Name | TT |
| Certification | ISO 9000-2015 |
| Model Number | TT-1 |
| Minimum Order Quantity | 3 tons |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 3-10 work days |
| Payment Terms | L/C T/T |
| Supply Ability | 100 TONS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel,Q235,q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized |
|---|---|---|---|
| Product Name | Industrial Floor Steel Grating With Long Time | Type | Plain Bar Grating |
| Application | Platform | Standard | ISO9001,YB/T 4001.1-2007 |
| Highlight | rooftop safety walkway steel grating,serrated walkway steel grating,platform serrated steel bar grating |
||
Product Description
Building Material Hot Dipped Galvanized Steel Grating For Trench Cover Or Foot Plate
Gratings are steel bars that are forged to create a grid. Steel gratings have for long been the most favored choice of all gratings types owing to its durability, low maintenance costs, easy to install and customize and long life. We provide gratings manufactured from mild steel or stainless steel with various combinations of load bar depth and breadth.
(1) Standard gratings are typically available in 6m x 1m or 20' x 3' panels
(2) They can be produced with almost any combination of pitch size. Most commonly this is 41mm x 100mm or 30mm x 100mm.
(3) Load bearing bars of width 20mm to 100mm and thickness 2mm to 10mm can be used. Bars can be plain or with a serrated edge finish of various depths.
(4) Bearing bars optional - Flat bar / I bar / Serraed Bar
(5) Panels are available self-color or with a galvanized coating to international standards.
Welded Steel Bar Grating Specification:
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | ||
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc | ||
| 3 | Cross Bar Pitch | 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self coloures, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
| UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |

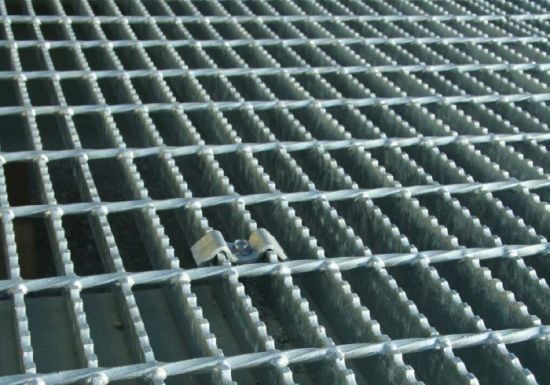

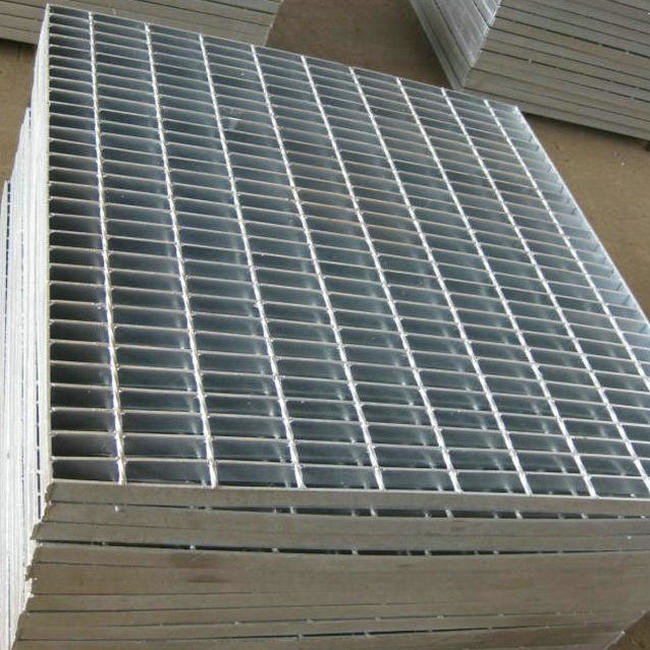

Metal Grate Picture:
