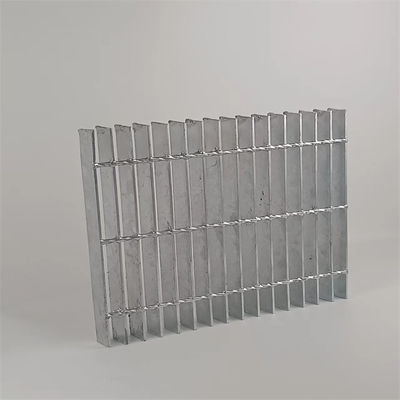

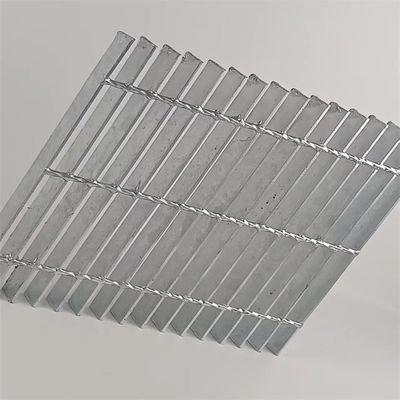

Open End Industrial Steel Grating Anti Corrosion For Oil Platform

  • Open End Industrial Steel Grating Anti Corrosion For Oil Platform
  • Open End Industrial Steel Grating Anti Corrosion For Oil Platform
Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month
Product Details
Application Floor,Walkway,platform,stair Tread,bridge Width According To Your Size
Usage Public Drain Area,bathroom,garge,Concrete Construction Support,balcony Ect. Length According To Your Size
Highlight

open end industrial steel grating

,

oil platform industrial steel grating

,

serrated bar grating stair treads platform
Leave a Message
Product Description
Open End Industrial Steel Grating Anti Corrosion For Oil Platform
Galvanized Bar Grating is extremely strong and durable for all load bearing applications, primarily used for pedestrian and light vehicle traffic. The galvanized coating process provides years of corrosion resistance in acidic and high moisture environments.
Product Specifications
Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars, fusing together under high heat and pressure to form permanent joints. The cross bars provide rigidity while maintaining a smooth walking surface.
NO Item Description
1 Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50...75x8mm, etc.
2 Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
3 Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customer requirement
4 Surface treatment Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customer requirement
5 Flat bar type Plain, Serrated (tooth-like), I bar (I section)
6 Material Low carbon steel
7 Crossbar 5x5, 6x6, 8x8mm
Features & Characteristics
  • High strength: Superior strength and toughness compared to cast iron, suitable for terminals, airports, and other large-span, heavy-load applications
  • Hot-dip galvanized treatment: Excellent rust-proof properties with maintenance-free operation
  • Anti-theft design: Hinge joint between cover and frame provides security while maintaining accessibility
  • Cost savings: Large-span capability reduces material needs compared to cast iron, with lower risk of theft or damage
  • Aesthetic design: Clean lines and silver finish complement modern architectural trends
  • Superior drainage: 83.3% leakage area, more than twice that of cast iron products
Applications
Our steel gratings are widely used in industrial projects and municipal construction, including:
  • Refinery plants
  • Power plants
  • Chemical plants
  • Offshore drilling platforms
  • Maintenance platforms
  • Water treatment plants
  • Drainage systems
  • Minefields
Open End Industrial Steel Grating Anti Corrosion For Oil Platform 0
Steel Grating Advantages
1. Extended Service Life
Galvanized steel gratings can last for more than 30 years, even in highly corrosive environments.
2. Low Maintenance Costs
Requires no painting or additional maintenance, reducing long-term costs.
3. Scratch Protection
Galvanized coating protects against abrasion from machinery or foot traffic.
4. Adaptability
Can be customized to fit structures of any shape and size.
Frequently Asked Questions
1. How much is your annual production capacity?
More than 3000 tons.
2. Can you provide a free sample?
Yes, we can provide samples of 20cm × 20cm.
3. What are your payment terms?
30% TT in advance with balance before shipment, L/C at sight, or Western Union.
4. What is the delivery time?
Typically within 10 days; customized orders may require additional time.
5. Is there quality control on all production lines?
Yes, all production lines have comprehensive quality control measures.
6. How do you maintain long-term business relationships?
(1) We maintain high quality and competitive pricing to ensure customer benefits.
(2) We value every customer relationship, conducting business with sincerity and professionalism regardless of origin.
