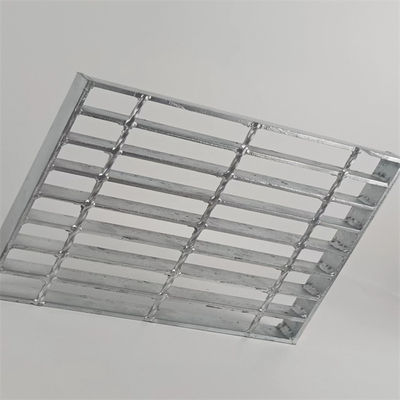

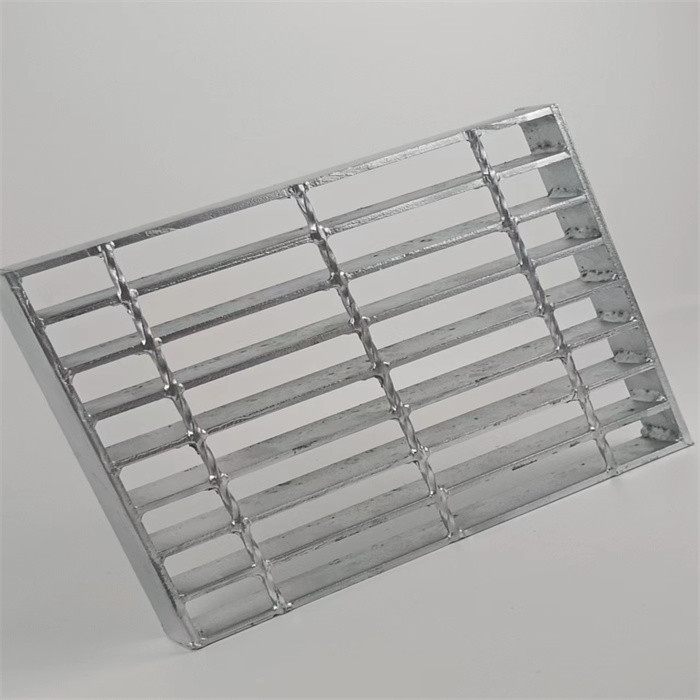

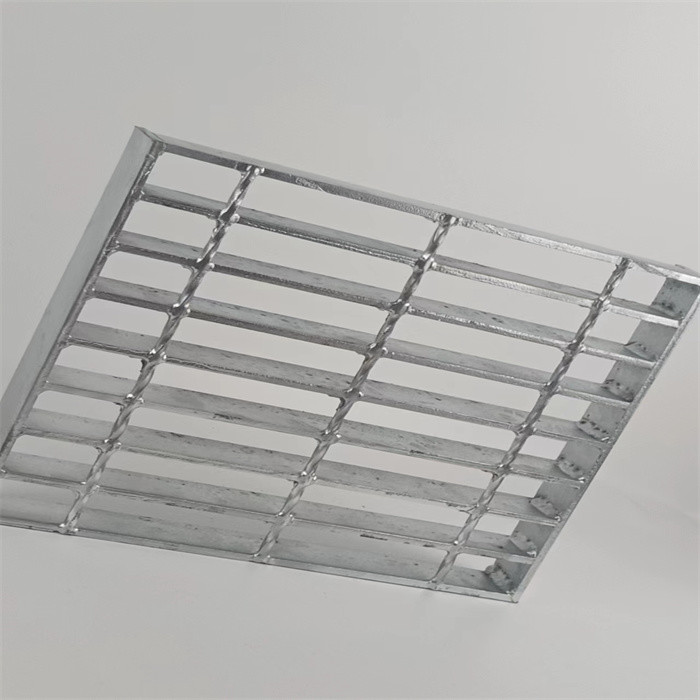

Floor Catwalk Steel Grating Hot Dip Galvanized Metal Building Materials

Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month
Product Details
Application Floor,Walkway,platform,stair Tread,bridge Width According To Your Size
Usage Public Drain Area,bathroom,garge,Concrete Construction Support,balcony Ect. Length According To Your Size
High Light

catwalk grating hot dip galvanized

,

serrated grating hot dip galvanized

,

serrated grating stair treads platform

Leave a Message
Product Description

Metal Building Materials Hot Dipped Galvanized Floor Catwalk Steel Grating

Product Description

Welded Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.



Product Specification&Model



Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.



NO
1 Item Description
2 Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
3 Bearing bar pitch  25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
4 cross bar pitch  40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’requirement.
5 surface treatment Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
6 flat bar type Plain, Serrated (tooth-like), I bar (I section)
7 Material Low carbon steel
8 crossbar 5x5, 6x6, 8x8mm



Product Details

The products are widely used in areas such as the oil and petrochemical industry, power and steel plant, port, shipyard, water and sewage treatment, municipal construction, ceiling, etc.


Floor Catwalk Steel Grating Hot Dip Galvanized Metal Building Materials 0


Applications




Galvanized grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.

  • Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
  • Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
  • Widely used in the petrochemical industry, power plants, waterworks, sewage treatment plants, municipal works, sanitation projects in areas such as platforms, corridors, bridge, ditch cover, covers, ladders, fences, rails, and so on.





Steel grating advantage

1. Extended Service Life:
Galvanized steel gratings can last for more than 30 years, even when exposed to the most corrosive environment.



2. Maintenance Costs:
Its maintenance costs are relatively low because it doesn't need painting and further maintenance.



3. Scratch Protection:
Galvanized steel grates are protected from scratches or abrasion when they come into physical contact with machinery or footfall.



4. Adaptability:
This grating could be applied to any structure of any shape and size.



FAQ

1.How much about your annual production capacity?
More than 3000tons.

2.Can you provide a free sample?
Yes, we can provide the sample of 20cm*20cm.

3. What are your terms of payment?
30% TT in advance and the balance paid before shipment, L/C at sight, you also can pay by West Union

4. What is the delivery time?
Usually, within 10days, customized orders may need a longer time.

5. Is there quality control on all production lines?
Yes, all production lines have adequate quality control.

6. How do you make our business long-term and good relationship?
(1)We keep good quality and competitive price to ensure our customers benefit;
(2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
