Metal Building Materials Hot Dipped 30 X 3mm Floor Galvanized

Place of Origin Anping,china
Brand Name TT
Certification ISO 9000-2015
Model Number TT-1
Minimum Order Quantity 3 tons
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10 work days
Payment Terms L/C T/T
Supply Ability 100 TONS/DAY
Product Details
Material Steel,Q235,q235 Carbon Steel Surface Treatment Hot Dipped Galvanized
Product Name Industrial Floor Steel Grating With Long Time Type Plain Bar Grating
Application Platform Standard ISO9001,YB/T 4001.1-2007
High Light

hot dipped floor industrial steel grating

,

30 x 3mm industrial steel grating

,

30 x 3mm galvanized grating

Leave a Message
Product Description

Hot Dip Galvanized Steel Grating- GI Steel Grating





The most popular specifications of steel graing:
1.Steel grating with 30mm bearing bar pitch is the most widely used in industrial area. Among the general series, it maintains the strongest resistance to impulsive force.
2.Steel grating with 40mm bearing bar pitch is one of the most economical & lightest types. It should be the best choice to customer on the occasion when the clear span is small.
3.Steel grating with 60mm bearing bar pitch & 50mm cross bar pitch is developed specially for mining industry. As it can avoid the mineral splashing down on board, its appointed to use in fabrication plant, transfer terminal & other areas of mining.



Welded Steel Bar Grating Specification:



No. Item Detailed Description
1 Bearing Bar 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self coloures, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

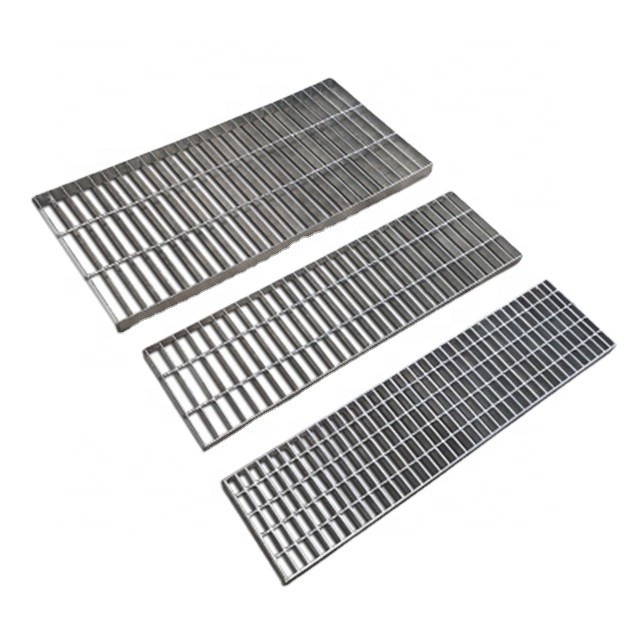

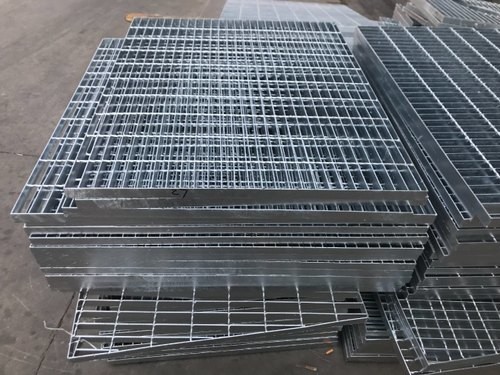

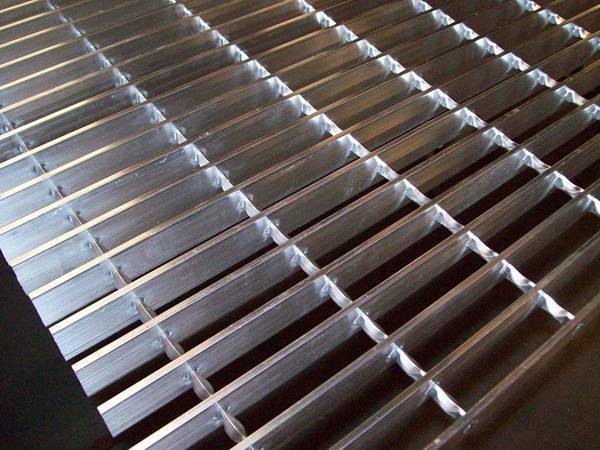

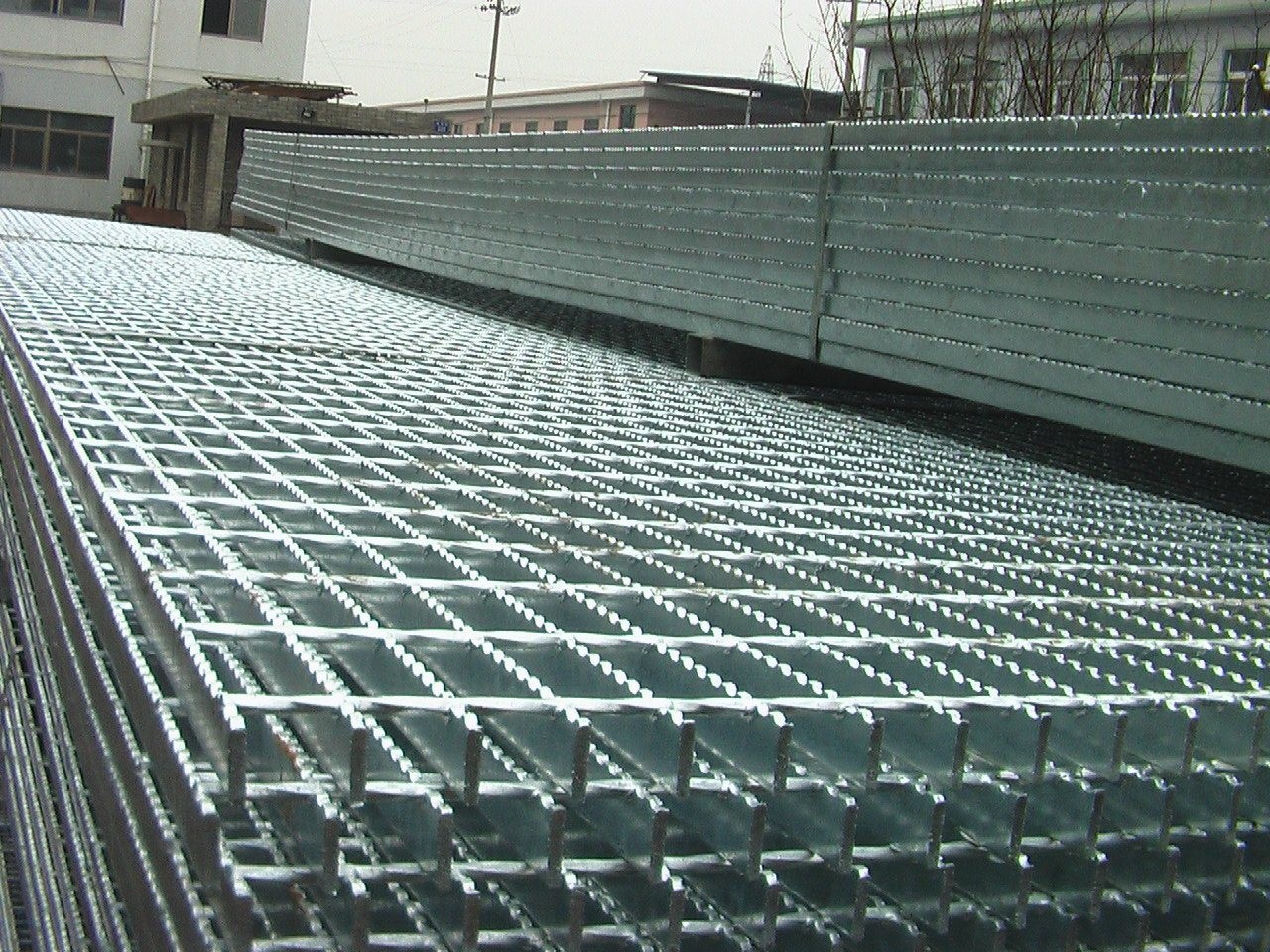

Metal Grate Picture:

Metal Building Materials Hot Dipped 30 X 3mm Floor Galvanized 0
