Customized Floor Steel Grating Trench Catwalk Walkway Platform Hot Dip Galvanized
| Place of Origin | Anping,china |
|---|---|
| Brand Name | TT |
| Certification | ISO 9000-2015 |
| Model Number | TT-1 |
| Minimum Order Quantity | 3 tons |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 3-10 work days |
| Payment Terms | L/C T/T |
| Supply Ability | 100 TONS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel,Q235,q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized |
|---|---|---|---|
| Product Name | Industrial Floor Steel Grating With Long Time | Type | Plain Bar Grating |
| Application | Platform | Standard | ISO9001,YB/T 4001.1-2007 |
| High Light | customized floor steel grating,catwalk floor steel grating,hot dip galvanized floor grating |
||
Product Description
Hot Dip Galvanized Steel Grating- GI Steel Grating
Steel grating is made of flat steel which is cross-aligned according to a certain spacing and cross bar(twisted square steel,square steel,round steel, flat steel, etc.)and welded into a steel product with a square lattice in the middle.
Steel grating has been widely used in various industries at home and abroad, mainly used as industrial platform, ladder pedal, handrail, channel floor, railway bridge sideway, high-altitude tower platform,drain cover,manhole cover,road barrier, parking Field and so on. It has the advantages of ventilation, light transmission, anti-skid,strong bearing capacity, beautiful and durable, easy too clean, easy to install, reduce wind resistance and prevent accumulation of dirt.
The distance between the loaded flat steel:the center distance of two adjacent loaded flat steels,commonly used 30mm,40mm,60mm.
Crossbar spacing: Thr center spacing of two adjacent rails is usually 50mm,100mm, and can be produced according to customer requirements.
The width of the flat steel:20mm 25mm 30mm 40mm 45mm 50mm 55mm 60mm.
Flat steel thickness:3mm 4mm 5mm
Welded Steel Bar Grating Specification:
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc | ||
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc | ||
| 3 | Cross Bar Pitch | 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self coloures, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
| UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |

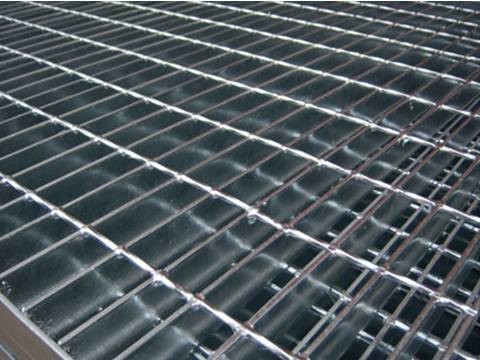

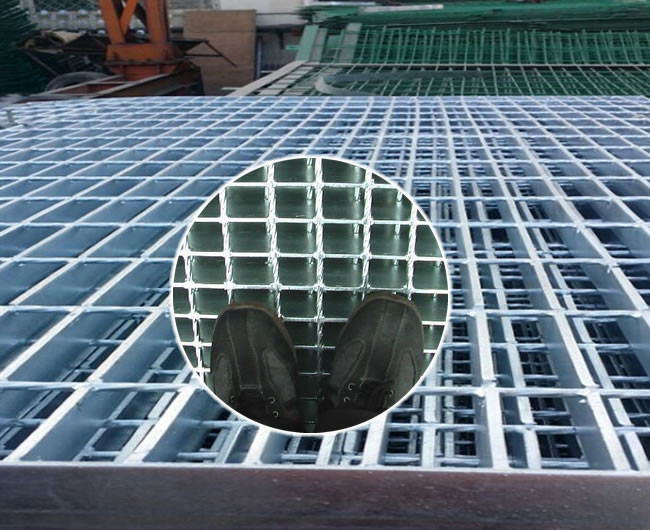

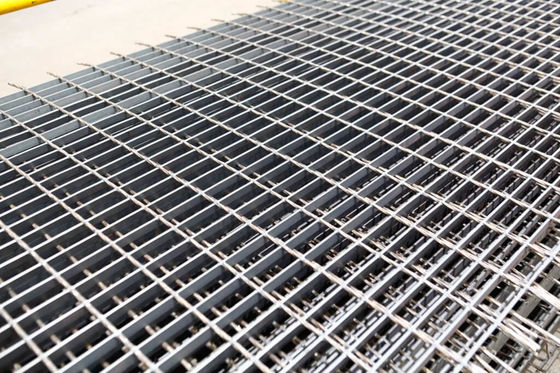

Metal Grate Picture:
