Flooring Grid Plain Bar Galvanised Steel Grating For Platform

Place of Origin Anping,china
Brand Name TT
Certification ISO 9000-2015
Model Number TT-1
Minimum Order Quantity 3 tons
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10 work days
Payment Terms L/C T/T
Supply Ability 100 TONS/DAY
Product Details
Material Steel,Q235,q235 Carbon Steel Surface Treatment Hot Dipped Galvanized
Product Name Industrial Floor Steel Grating With Long Time Type Plain Bar Grating
Application Platform Standard ISO9001,YB/T 4001.1-2007
High Light

plain bar galvanised steel grating

,

platform galvanised steel grating

,

plain bar floor steel grating

Leave a Message
Product Description

Hot Dip Galvanized Steel Grating- GI Steel Grating





Platform Channel Gratings are made of aluminum or steel alloy bar structure panels with big bar spacing and strong ability of anti-side shocking. Can be supplied with checkered plate shielding, installation connectors and other accessories.

Platform Steel Gratings are new building materials used in construction of power plants, boilers, shipbuilding, petrochemical, chemical and general plant room, municipal construction and other industries. The steel bar grating platform structures enjoy good air and light ventilation, non-slip property, good bearing capacity, easy cleaning and installation.

Platform Gratings are universally used in most general industrial plants as well as commercial buildings, as walkways, platforms, safety barriers, drainage covers and ventilation grates. Welded Steel Bar Grating is the most popular of all grating platform types due to its strength, cost-efficient production and ease of installation.

Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.





Welded Steel Bar Grating Specification:



No. Item Detailed Description
1 Bearing Bar 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self coloures, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

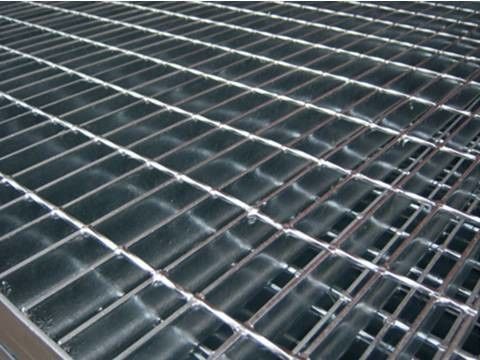

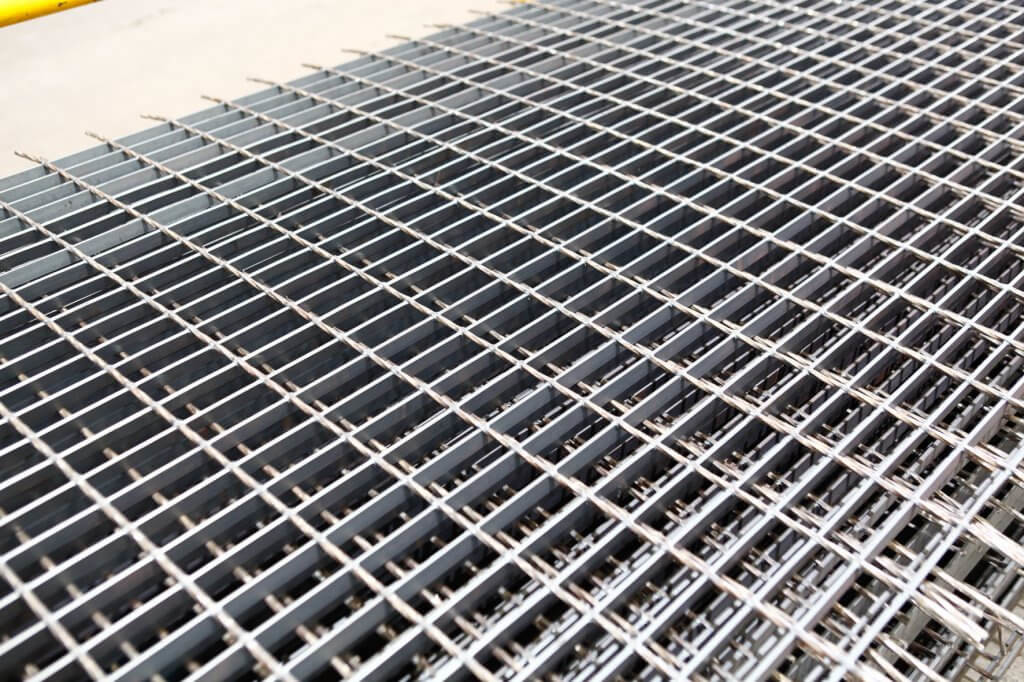

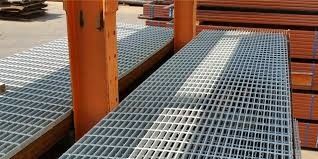

Metal Grate Picture:

Flooring Grid Plain Bar Galvanised Steel Grating For Platform 0
