Metal Building Materials Hot Dipped 30 X 3mm Galvanized Steel Grating

Place of Origin HeBei,China
Brand Name TT
Certification ISO9001,CE
Model Number 01
Minimum Order Quantity 100piece/pieces
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 5-8days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 25000piece per month
Product Details
Application Floor,Walkway,platform,stair Tread,bridge Width According To Your Size
Usage Public Drain Area,bathroom,garge,Concrete Construction Support,balcony Ect. Length According To Your Size
Leave a Message
Product Description

Metal Building Materials Hot Dipped 30 X 3mm Galvanized Steel Grating

Product Description

Welded Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.



Product Specification&Model



Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.



NO
1ItemDescription
2Bearing bar20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
3Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
4cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’requirement.
5surface treatmentBlack, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
6flat bar typePlain, Serrated (tooth-like), I bar (I section)
7MaterialLow carbon steel
8crossbar5x5, 6x6, 8x8mm



Product Details

The products are widely used in areas such as the oil and petrochemical industry, power and steel plant, port, shipyard, water and sewage treatment, municipal construction, ceiling, etc.


TypePlatform Floor Galvanized Stainless Steel Grating
Colorsliver
MaterialStainless Steel
Surface treatmentHot Dipped Galvanized
SizeCustomized
Bearing bar thickness3mm-10mm
Bearing bar width30mm-100mm
FeatureEasily assembled, durable



Product Type

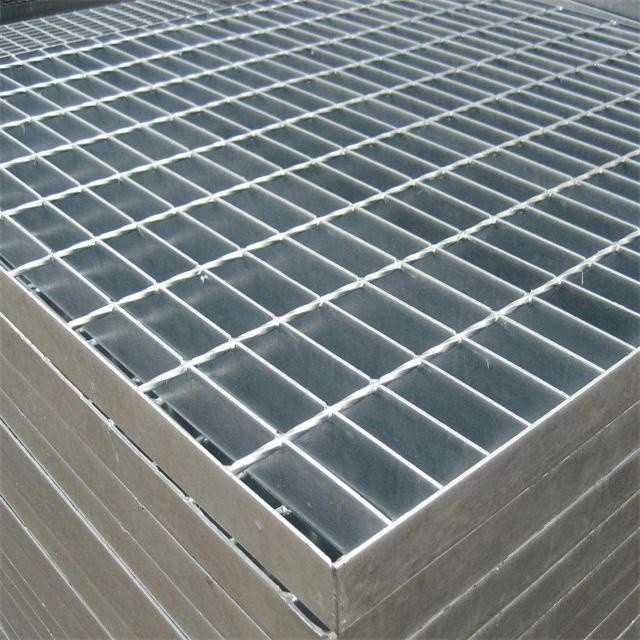

Metal Building Materials Hot Dipped 30 X 3mm Galvanized Steel Grating 0


Application

Our steel gratings have been widely used in many industrial projects and municipal construction, such as refinery plants, power plants, chemical plant, offshore drilling platforms, maintenance platforms, water treatment plants, drainage systems, minefield fields, etc.

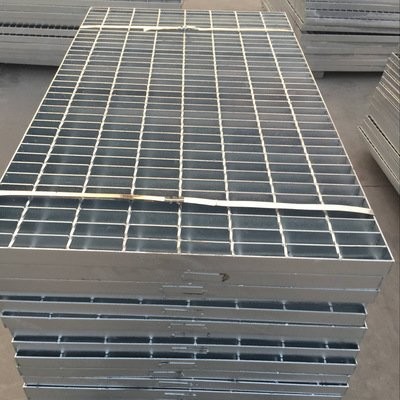

Metal Building Materials Hot Dipped 30 X 3mm Galvanized Steel Grating 1


Steel grating advantage


-No corrosion traps around joints
-High strength to weight ratio
-Allows shaping without loss of strength
-Available plain or serrated
-Allows passage of heat, light, water and ice.



FAQ

1.How much about your annual production capacity?
More than 3000tons.

2.Can you provide a free sample?
Yes, we can provide the sample of 20cm*20cm.

3. What are your terms of payment?
30% TT in advance and the balance paid before shipment, L/C at sight, you also can pay by West Union

4. What is the delivery time?
Usually, within 10days, customized orders may need a longer time.

5. Is there quality control on all production lines?
Yes, all production lines have adequate quality control.

6. How do you make our business long-term and good relationship?
(1)We keep good quality and competitive price to ensure our customers benefit;
(2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
